Kable Kontrol Cable Tray Straight Sections

Zinc Plated Steel - 5' & 10' Lengths - Variety Of Widths

Kable Kontrol Cable Tray Features

  • Electro Zinc Resistant Finish Protects The Cable Trays From Weather & Chemical Corrosion

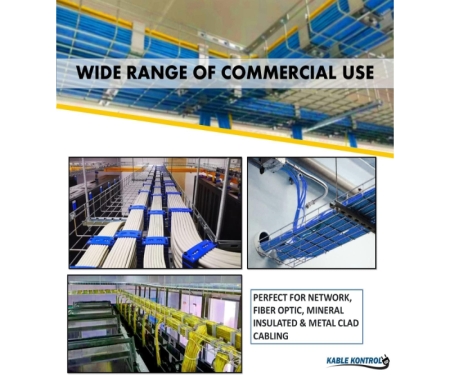

  • Suspends Cables, Out of The Way, in an Expandable & Versatile Fashion. Perfect for Network, Fiber Optic, Mineral Insulated & Metal Clad Cabling
  • NEC Approved
  • Can Be Sized to Fit Your Needs With Cable Tray Cutters
  • UL Certified
Click for More Details or Description

Non-Cancellable & Non-Refundable

Ships Within 48 Business Hours

Manufacturer Recommends Supports Every Five Feet

Product Details

Kable Kontrol’s professional quality cable trays for your building's wire management needs. Our standard and budget friendly cable tray system comes in four different widths (4", 6", 8", 12") at a 2" depth and 9.84' (3m) length with a wire thickness of 0.197". Cable trays all have electro zinc resistant finish and are NEC Approved.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Professional quality trays for your building's wire management needs. Our Economic Cable Tray System comes in four different widths (4", 6", 8", 12") at a 2" depth and 9.84' (3m) length with a wire thickness of 0.197". Cable trays all have Electro Zinc resistant finish and are NEC Approved

  • Electro Zinc resistant finish protects the cable trays from weather and chemical corrosion
  • Suspends cables, out of the way, in an expandable and versatile fashion. Perfect for network, fiber optic, mineral insulated and metal clad cabling
  • NEC Approved
  • Can be sized to fit your needs with cable tray cutters (ME2-600728)
  • UL Certified
  • Tray Size
    (D" x W" x L')
    Fill Area Max # cables 50% Fill Ratio **Approx. Max. Cable Weight lbs./ft Tested Load Capacity 5ft ***lbs./ft. 10ft.
    2 x 6 x 10 13.2 130 4.29 46 14
    2 x 8 x 10 17.6 174 5.742 29 16
    2 x 12 x 10 26.4 260 8.58 34 19
    2 x 18 x 10 39.6 394 13.002 43 22
    2 x 24 x 10 52.8 527 17.391 52 23
    2 x 36 x 10 79.2 788 * * *
    4 x 6 x 10 25.2 253 8.349 68 122
    4 x 8 x 10 33.6 331 10.923 95 35
    4 x 12 x 10 50.4 496 16.368 120 50
    4 x 18 x 10 75.6 751 24.783 124 52
    4 x 24 x 10 100.8 998 32.934 128 55
    4 x 36 x 10 151.2 1502 * * *
    6 x 6 x 10 37.2 370 12.21 110 48
    6 x 8 x 10 49.6 493 16.269 108 47
    6 x 12 x 10 74.4 739 24.387 124 52
    6 x 8 x 10 111.6 1106 36.498 128 55
    6 x 24 x 10 148.8 1444 47.652 154 59
    6 x 36 x 10 223.2 2212 * * *
    * Contact Technical Support for 36" data.
