Metal Detectable Zip Ties

Nylon Impregnated Iron Cable Ties - 4" To 14" Lengths. FDA Approved

Metal Detectable Cable Ties Features

  • FDA Compliant For Food And Pharmaceutical Industries
  • Nylon 6-6 Impregnated With Magnetite (Approved Material for Contact with food)
  • Teal Color For Easy Visibility
  • One-Piece Construction, For Enhanced Durability
  • Operating Temperature: -40°C to + 85°C (-40°F to + 185°F)
  • Rated For Indoor Use
  • Flammability of raw material: UL 94 - V2
  • Humidity absorption: 2,7% - 2,8% (23°C -50%RH)
  • Min Installation Temperature: 0°C (32°F)
  • Max sustainable temperature for short time: +110°C (230°F)
  • Good resistance to bases, oils, greases, oil derivatives, chloride solvents. Limited resistance to acids. Not resistant to phenols.
  • FDA 21 CRF 177.1500 (b) Compliance
  • REACH, ROHS, PAHS Compliance.
  • *For Use With Metal Detectors*


These metal detectable zip ties can be used very safely and efficiently in a wide range of indoor as well as outdoor applications. Kable Kontrol metal detector cable ties comply with the food, beverage, and pharmaceutical safety standards as set by the FDA. User-friendly Smooth edges for safe operation and curved. Metal detectable cable ties using Nylon material blended with iron provides magnetic properties throughout. It can be identified by any type of metal detection equipment. Weather-resistant and more cost-effective than stainless steel ties, Very reliable and consistent performance due to its one-piece construction. Metal detectable tie wraps are available in sizes from 4” to 14” long with tie tensile ranging from 18 lb. to 120 lb.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

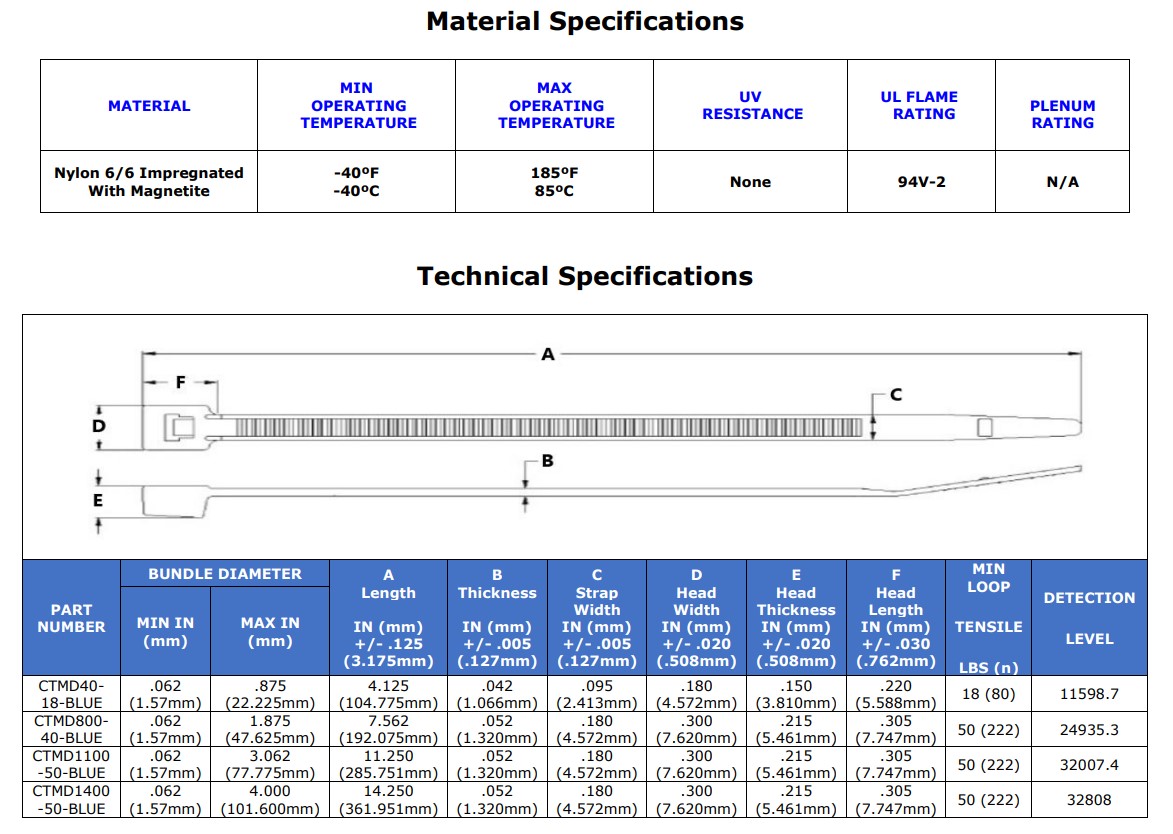

PART NUMBER BUNDLE DIAMETER

A

IN (mm) +/- .125

(3.175mm)

B

IN (mm) +/- .005

(.127mm)

C

IN (mm) +/- .005

(.127mm)

D

IN (mm) +/- .020

(.508mm)

E

IN (mm) +/- .020

(.508mm)

F

IN (mm) +/- .030

(.762mm)

MIN LOOP

TENSILE

LBS (n)

ANSI/UL 94 Mtl

FLAMABILITY

RATING

PLENUM

RATING

DETECTION

LEVEL
MIN IN (mm) MAX IN (mm)
CTMD40-18 .062 (1.57mm) .875 (22.225mm)

4.125 (104.775mm)

 .042 (1.066mm) .095 (2.413mm) .180 (4.572mm) .150 (3.810mm) .220 (5.588mm) 18 (80) V-2 N/A 11598.7
CTMD700-50 .062 (1.57mm) 2.375 (60.325mm) 8.875 (225.425mm) .049 (1.244mm) .140 (3.556mm) .240 (6.096mm) .175 (4.445mm) .250 (6.350mm) 40 (178) V-2 N/A 29628.5
CTMD800-40 .062 (1.57mm) 1.875 (47.625mm) 7.562 (192.075mm) .052 (1.320mm) .180 (4.572mm) .300 (7.620mm) .215 (5.461mm) .305 (7.747mm) 50 (222) V-2 N/A 24935.3
CTMD1100-50 .062 (1.57mm) 3.062 (77.775mm) 11.250 (285.751mm) .052 (1.320mm) .180 (4.572mm) .300 (7.620mm) .215 (5.461mm) .305 (7.747mm) 50 (222) V-2 N/A 32007.4
CTMD1400-50 .062 (1.57mm) 4.000 (101.600mm) 14.250 (361.951mm) .052 (1.320mm) .180 (4.572mm) .300 (7.620mm) .215 (5.461mm) .305 (7.747mm) 50 (222) V-2 N/A 32808
CTMD1400-120 .187 (4.75mm) 4.06 (103.1mm) 15.093 (383.362mm) .076 (1.930mm) .300 (7.620mm) .490 (12.446mm) .300 (7.620mm) .500 (12.700mm) 120 (534) V-2 N/A 32778



Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.

Request a Quote

Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.

Quote Items
Search
Item Description
Quantity
SKU:

Contact Information

WARNING:
Products may contain materials listed under Prop 65 Enforcement Act. Click Here to read more.

Product Details

These metal detectable zip ties can be used very safely and efficiently in a wide range of indoor as well as outdoor applications. Kable Kontrol metal detector cable ties comply with the food, beverage, and pharmaceutical safety standards as set by the FDA. User-friendly Smooth edges for safe operation and curved. Metal detectable cable ties using Nylon material blended with iron provides magnetic properties throughout. It can be identified by any type of metal detection equipment. Weather-resistant and more cost-effective than stainless steel ties, Very reliable and consistent performance due to its one-piece construction. Metal detectable tie wraps are available in sizes from 4” to 14” long with tie tensile ranging from 18 lb. to 120 lb.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

PART NUMBER BUNDLE DIAMETER

A

IN (mm) +/- .125

(3.175mm)

B

IN (mm) +/- .005

(.127mm)

C

IN (mm) +/- .005

(.127mm)

D

IN (mm) +/- .020

(.508mm)

E

IN (mm) +/- .020

(.508mm)

F

IN (mm) +/- .030

(.762mm)

MIN LOOP

TENSILE

LBS (n)

ANSI/UL 94 Mtl

FLAMABILITY

RATING

PLENUM

RATING

DETECTION

LEVEL
MIN IN (mm) MAX IN (mm)
CTMD40-18 .062 (1.57mm) .875 (22.225mm)

4.125 (104.775mm)

 .042 (1.066mm) .095 (2.413mm) .180 (4.572mm) .150 (3.810mm) .220 (5.588mm) 18 (80) V-2 N/A 11598.7
CTMD700-50 .062 (1.57mm) 2.375 (60.325mm) 8.875 (225.425mm) .049 (1.244mm) .140 (3.556mm) .240 (6.096mm) .175 (4.445mm) .250 (6.350mm) 40 (178) V-2 N/A 29628.5
CTMD800-40 .062 (1.57mm) 1.875 (47.625mm) 7.562 (192.075mm) .052 (1.320mm) .180 (4.572mm) .300 (7.620mm) .215 (5.461mm) .305 (7.747mm) 50 (222) V-2 N/A 24935.3
CTMD1100-50 .062 (1.57mm) 3.062 (77.775mm) 11.250 (285.751mm) .052 (1.320mm) .180 (4.572mm) .300 (7.620mm) .215 (5.461mm) .305 (7.747mm) 50 (222) V-2 N/A 32007.4
CTMD1400-50 .062 (1.57mm) 4.000 (101.600mm) 14.250 (361.951mm) .052 (1.320mm) .180 (4.572mm) .300 (7.620mm) .215 (5.461mm) .305 (7.747mm) 50 (222) V-2 N/A 32808
CTMD1400-120 .187 (4.75mm) 4.06 (103.1mm) 15.093 (383.362mm) .076 (1.930mm) .300 (7.620mm) .490 (12.446mm) .300 (7.620mm) .500 (12.700mm) 120 (534) V-2 N/A 32778
