HVAC Duct Cable Ties
Available 24" - 60" Lengths | UL Listed | 50 - 250 Lb Tensile Strength
0.0 / 5

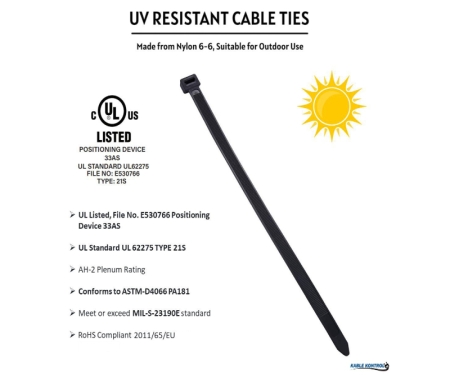

HVAC Duct Cable Ties Features
- UL Listed, File No. E530766 Positioning Device 33AS
- UL Standard UL 62275 TYPE 21S
- Cable Ties Constructed With Nylon Resins Made In The USA
- Meet or exceed MIL-S-23190E standard
- RoHS Compliant: RoHS Compliant 2011/65/EU
- AH-2 Plenum Rating
- Black is UV Stabalized
- Made With Nylon 6-6 Material
- 24” Inch to 60” Lengths Available
- Operating Temperature Range -40º - 185º F
- Humidity absorption: 2,7%-2,8% (23°C -50% R.H.)
- Max sustainable temperature for a short time: +110°C
- High Resistance To Sun & Outdoor Exposure
- Good resistance to bases, oils, greases, oil derivates, chloride solvents
- Carbon black additive gives a better UV resistance
- Smooth Finish, Saves Hands From Abrasion
- Material brand: Dupont, Ascend
- Conforms to ASTM-D4066 PA181
- Self Locking Design
- These Items Are Custom Marking Compatible! Call For Price Quotation
HVAC Duct Cable Ties are crafted with precision for dependable fastening solutions in HVAC duct applications. With a UL Standard of UL 62275 TYPE 21S and UL File No. E530766, these ties meet rigorous industry safety standards. Spanning lengths from 24 to 60 inches, they offer versatility for various HVAC duct bundling needs. The UV-stabilized black option enhances resistance to outdoor elements, making them a perfect fit for outdoor HVAC installations. Exhibiting good resistance to various chemicals and featuring a self-locking design for secure installations, these cable ties are also RoHS compliant, aligning with environmental standards. The clear/natural option, while lacking UV protection, excels in indoor HVAC duct applications, meeting low smoke production standards. With custom marking compatibility, these cable ties offer flexibility for specific HVAC duct identification needs. These ties provide a comprehensive solution for professionals seeking compliant, durable, and customizable cable management in HVAC systems, both indoors and outdoors.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Material Specifications
| MATERIAL | MIN OPERATING TEMPERATURE | MAX OPERATING TEMPERATURE | UV RESISTANCE | UL FLAME RATING |
| Nylon 6/6- UV Stabilized | -40ºF -40ºC | 185ºF 85ºC | Very High (Black Only) | 94V-2 |
| GAMMA RADIATION RESISTANCE | MILITARY, FEDERAL, AND ASTM SPECIFICATIONS | TENSILE STRENGTH AT 73ºF DRY AS MOLDED ASTM-D-638 (PSI) | OXYGEN INDEX % |
| 1x10 Rads | ASTM-D4066 PA181 | 12,000 | 24 -28% |
| Length | UL Listed Test Strength | Strap Width | Break Strength | Max Bundle Diameter | Full Case QTY |
| 24" Long | 175 lbs | 9 mm | 175 lbs | 6.64" | 10 Packs |
| 28" Long | 175 lbs | 9 mm | 175 lbs | 8.66" | 10 Packs |
| 32" Long | 175 lbs | 9 mm | 175 lbs | 9.68" | 10 Packs |
| 36" Long | 50 lbs | 4.8 mm | 75 lbs | 10.5" | 10 Packs |
| 36" Long | 175 lbs | 9 mm | 175 lbs | 10.5" | 10 Packs |
| 40" Long | 250 lbs | 12.7 mm | 250 lbs | 11.7" | 20 Packs |
| 48" Long | 175 lbs | 9 mm | 175 lbs | 14.96" | 10 Packs |
| 60" Long | 175 lbs | 9 mm | 175 lbs | 20" | 10 Packs |
