UV Rated Split Loom

Ideal for Outdoor UV Exposed Applications | Flame Retardant

0.0 / 5

(0)

Nylon UV Resistant Wire Loom Features

  • MADE IN NORTH AMERICA
  • Flexible convoluted split tubing/conduit manufactured from a nylon 6 copolymer resin and UV Inhibitor.
  • All UV resistant high-temperature split loom is distinctly marked with an orange stripe running the entire length.
  • Temperature range: -40° to 300° F, -40° to 149° C.
  • Tested to the equivalent of 3000 hours in the desert sun
  • UV inhibitor protects against discoloration and fading
  • Can be used both indoors and outdoors, and also in sunlight
  • Compliant with the (RoHS), REACH Directive and the Conflict Minerals Initiative
  • Note: All Lengths Will Be Shipped as continuous lengths. Lengths are NON-SPLICED
  • Gaylord Length Boxes Ship By LTL Pallet Freight Only
See More Technical Specifications


Kable Kontrol Split UV resistant Nylon wire loom tubing is a high-temperature cable sleeving with an added UV stabilizer that protects wires, and cables against abrasion or crushing, and has a heat resistance range up to 300° F. The material with UV stabilizer has been tested to the equivalent of 3000 hours in the desert sun. Flexible convoluted tubing / conduit manufactured from a nylon 6 co-polymer resin and UV Inhibitor. Nylon (NU) Conduit is black with an orange stripe.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

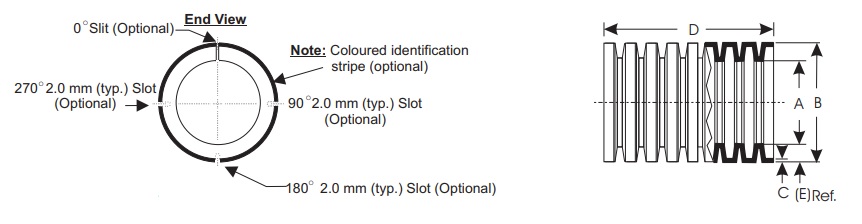

TECHNICAL DATA – PRODUCT DETAILS

                                                                                                   PRODUCT DIMENSIONS

Inside
Diameter

Units

Dimension "A'

ID

Dimension "B"
OD

Dim. "C"
Wall
Min

Dim. (E)
Corr Ht.
Ref.

Min

Max.

Min

Max

1/4"

Inches

0.237

0.266

0.372

0.400

0.004

0.067

3/8"

Inches

0.341

0.380

0.496

0.526

0.005

0.075

7/16"

Inches

0.399

0.437

0.569

0.597

0.005

0.083

1/2"

Inches

0.471

0.515

0.645

0.681

0.005

0.085

5/8"

Inches

0.595

0.633

0.732

0.770

0.005

0.069

3/4"

Inches

0.707

0.759

0.950

0.989

0.005

0.118

7/8"

Inches

0.848

0.898

1.107

1.151

0.005

0.128

1"

Inches

0.897

0.949

1.077

1.109

0.006

0.085

1-1/4"

Inches

1.199

1.257

1.446

1.500

0.006

0.123

1-1/2"

Inches

1.566

1.647

1.867

1.947

0.006

0.150

2"

Inches

1.969

2.038

2.285

2.388

0.011

0.167





Return Policy

30-DAY RETURN POLICY

  • You may return your purchase within 30 days after delivery for a full refund less shipping charges.

  • Items must be in their original condition, not visibly used damaged, or cut.

  • 10 foot Cut length wire loom orders are NON-CANCELLABLE & NON-RETURNABLE

  • GAYLORD bulk box returns are subject to an 25 percent re-stocking fee.

RETURN INSTRUCTIONS

Please Fill out our Linked RMA FORM to obtain a Return Authorization (RMA#) & Shipping instructions.

Let us know your Order ID, Name & which items you want to return.

Once we get your request we'll email you a Return Authorization and Shipping Instructions.

After we receive the return, it takes 3-5 business days for us to verify the items & process a refund. We'll refund back to your method of payment.

RETURN SHIPPING

  • Shipping charges are not refundable & customer is responsible for cost of return shipping.

  • We recommend you return via UPS, FedEx, or insured US Mail with a tracking number. Items not received by us will not receive a credit.

  • Shipping charges will apply on any exchanges.

SHORTAGE OR INCORRECT ORDERS

All claims for shortage or incorrect orders must be reported to us by phone or email within 5 business days from receipt of the order. Please mention your Purchase Order ID, Items, and your name.

DEFECTIVE PRODUCTS

Defective products must be reported to us within 30 days of delivery via phone or email.

Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.


Request a Quote

Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.

Quote Items
Search
Item Description
Quantity
SKU:

Contact Information

Product Details

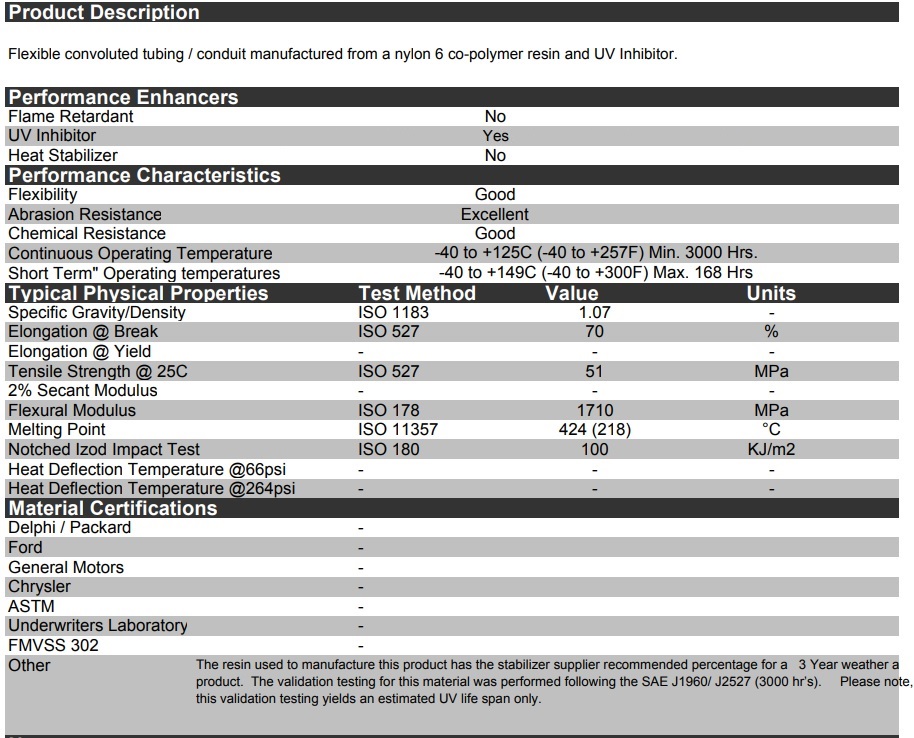

Kable Kontrol Split UV resistant Nylon wire loom tubing is a high-temperature cable sleeving with an added UV stabilizer that protects wires, and cables against abrasion or crushing, and has a heat resistance range up to 300° F. The material with UV stabilizer has been tested to the equivalent of 3000 hours in the desert sun. Flexible convoluted tubing / conduit manufactured from a nylon 6 co-polymer resin and UV Inhibitor. Nylon (NU) Conduit is black with an orange stripe.
