Kable Kontrol® Nylon Cable Glands
PG & NPT Thread Types Available - (IP68) Fully Water-Proof
Kable Kontrol® Nylon Cable Glands Features
- Fully certified (IP68)
- Ideal For Vital Strain Relief
- NPT & PG Thread Types
- UL approved Nylon 66.94V-2
- Fully Sealing & Moisture Resistant
- Sealing Washer & Fixing Nut Included
- Guaranteed RoHS compliance
Nylon cable glands, cord grips" or "nylon cord seals" as they are sometimes referred to are vital products when it comes to strain relief of cables. Our PG NPT and Right angle Nylon glands are all IP68 rated for being waterproof. Full RoHS compliance and the nylon is 66.94v-2 UL approved.
NPT, PG & Right Angle Nylon Cable Glands will be necessary in any areas where space is limited. These waterproof cable glands made by Kable Kontrol® can be vital any time even a slight amount of moisture might come in contact with the area of ingress of your wire or cable. These strain relief cable glands will also guarantee that your wires will be defended from tension and strain.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

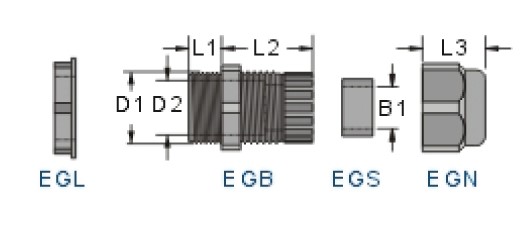

| PG Cable Glands | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
| ||||||||||
| Model # | Thread | Mounting Hole D1 | D2 | B1 | L1 | L2 | L3 | For Cable | ||
| CGPG7 | PG-7 | 0.49” (12.5mm) | 0.32” (8.3mm) | 0.27” (6.9mm) | 0.31” (7.9mm) | 0.78” (20.0mm) | 0.52” (13.3mm) | 0.13” ~ 0.23” (3.5mm ~ 6mm) | ||
| CGPG11 | PG-11 | 0.72” (18.3mm) | 0.51” (13.2mm) | 0.41” (10.5mm) | 0.31” (7.9mm) | 0.93” (23.7mm) | 0.72” (18.3mm) | 0.19” ~ 0.39” (5mm ~ 10mm) | ||
| CGPG13.5 | PG-13.5 | 0.80” (20.4mm) | 0.61” (15.5mm) | 0.47” (12.0mm) | 0.35” (8.9mm) | 0.96” (24.6mm) | 0.74” (18.9mm) | 0.23” ~ 0.47” (6mm ~ 12mm) | ||
| CGPG16 | PG-16 | 0.88” (22.5mm) | 0.67” (17.2mm) | 0.55” (14.0mm) | 0.38” (9.8mm) | 1.03” (26.2mm) | 0.76” (19.5mm) | 0.39” ~ 0.55” (10mm ~ 14mm) | ||
| CGP21 | PG-21 | 1.11” (28.3mm) | 0.88” (22.4mm) | 0.72” (18.4mm) | 0.42” (10.8mm) | 1.18” (30.0mm) | 0.93” (23.7mm) | 0.51” ~ 0.70” (13mm ~ 18mm) | ||
| CGPG29 | PG-29 | 1.45” (37.0mm) | 1.20” (30.6mm) | 0.98” (25.0mm) | 0.42” (10.8mm) | 1.37” (35.0mm) | 1.07” (27.4mm) | 0.70” ~ 0.98” (18mm ~ 25mm) | ||
| CGPG36 | PG-36 | 1.85” (47.0mm) | 1.38” (35.3mm) | 1.39” (35.5mm) | 0.57” (14.5mm) | 1.66” (42.3mm) | 1.19” (30.3mm) | 0.86” ~ 1.25” (22mm ~ 32mm) | ||
| CGPG42 | PG-42 | 2.12” (54.0mm) | 1.57” (40.0mm) | 1.57” (40.0mm) | 0.57” (14.5mm) | 1.73” (44.0mm) | 1.22” (31.2mm) | 1.18” ~ 1.49” (30mm ~ 38mm) | ||
| CGPG48 | PG-48 | 2.33” (59.3mm) | 1.70” (43.2mm) | 1.81” (46.0mm) | 0.61” (15.6mm) | 1.68” (42.7mm) | 1.23” (31.3mm) | 1.33” ~ 1.73” (34mm ~ 44mm) | ||

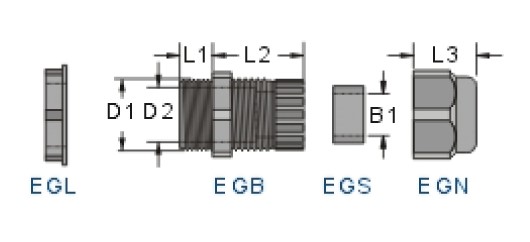

| NPT Cable Glands | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 | |||||||||
| Model # | Thread | Thread outside diameter | D2 | B1 | L1 | L2 | L3 | For Cable | |
| C1 | C2 | ||||||||
| CGNPT14 | 1/4-18 NPT | 0.52” (13.2mm) | 0.51” (13.1mm) | 0.32” (8.2mm) | 0.27” (6.9mm) | 0.30” (7.8mm) | 0.77” (19.7mm) | 0.51” (13.2mm) | 0.11” ~ 0.25” (3mm ~ 6.5mm) |
| CGNPT38 | 3/8-18 NPT | 0.66” (16.7mm) | 0.63” (16.2mm) | 0.42” (10.8mm) | 0.41” (10.5mm) | 0.57” (14.6mm) | 0.93” (23.8mm) | 0.66” (16.8mm) | 0.19” ~ 0.39” (5mm ~ 10mm) |
| CGNPT12 | 1/2-14 NPT | 0.83” (21.2mm) | 0.81” (20.8mm) | 0.58” (14.9mm) | 0.55” (14.0mm) | 0.50” (12.9mm) | 1.11” (28.4mm) | 0.73” (18.7mm) | 0.39” ~ 0.55” (10mm ~ 14mm) |
| CGNPT34 | 3/4-14 NPT | 1.03” (26.3mm) | 1.00” (25.6mm) | 0.72” (18.5mm) | 0.72” (18.4mm) | 0.57” (14.5mm) | 1.14” (29.2mm) | 0.87” (22.3mm) | 0.51” ~ 0.70” (13mm ~ 18mm) |
| CGNPT1 | 1-11.5 NPT | 1.30” (33.2mm) | 1.29” (32.9mm) | 1.02” (26.0mm) | 0.98” (25.0mm) | 0.58” (14.9mm) | 1.37” (35.0mm) | 1.01” (25.7mm) | 0.70” ~ 0.98” (18mm ~ 25mm) |
| CGNPT114 | 1 1/4-11.5 NPT | 1.64” (41.9mm) | 1.62” (41.2mm) | 1.25” (32.0mm) | 1.29” (33.0mm) | 0.71” (18.2mm) | 1.63” (41.6mm) | 1.22” (31.1mm) | 0.86” ~ 1.25” (22mm ~ 32mm) |

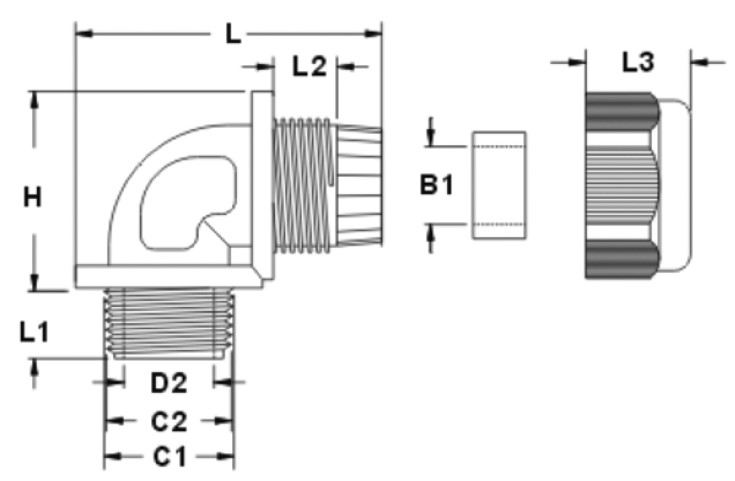

| Right Angle NPT Cable Glands | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | |||||||||||
| Model# | Thread | Thread outside diameter | D2 | B1 | L1 | L2 | L3 | L | H | For Cable | |
| C1 | C2 | ||||||||||
| CGRANPT12 | 1/2 -14 NPT | 0.83” (21.2mm) | 0.82” (20.8mm) | 0.55” (14.0mm) | 0.57” (14.5mm) | 0.58” (14.7mm) | 0.46” (11.75mm) | 0.72” (18.4mm) | 2.03” (51.6mm) | 1.23” (31.2mm) | 0.39” ~ 0.51” (10mm ~ 13mm) |
| CGRANPT38 | 3/8 -18 NPT | 0.66” (16.7mm) | 0.64” (16.2mm) | 0.47” (12.0mm) | 0.37” (9.3mm) | 0.46” (11.7mm) | 0.39” (9.85mm) | 0.66” (16.7mm) | 1.91” (48.5mm) | 1.18” (30.0mm) | 0.19” ~ 0.35” (5mm ~ 9mm) |
| CGRANPT34 | 3/4 -14 NPT | 1.04” (26.3mm) | 1.01” (25.6mm) | 0.76” (19.2mm) | 0.65” (16.4mm) | 0.58” (14.8mm) | 0.49” (12.55mm) | 0.88” (22.3mm) | 2.54” (64.5mm) | 1.64” (41.6mm) | 0.51” ~ 0.63” (13mm ~ 16mm) |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Nylon cable glands, cord grips" or "nylon cord seals" as they are sometimes referred to are vital products when it comes to strain relief of cables. Our PG NPT and Right angle Nylon glands are all IP68 rated for being waterproof. Full RoHS compliance and the nylon is 66.94v-2 UL approved.
NPT, PG & Right Angle Nylon Cable Glands will be necessary in any areas where space is limited. These waterproof cable glands made by Kable Kontrol® can be vital any time even a slight amount of moisture might come in contact with the area of ingress of your wire or cable. These strain relief cable glands will also guarantee that your wires will be defended from tension and strain.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| PG Cable Glands | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
| ||||||||||
| Model # | Thread | Mounting Hole D1 | D2 | B1 | L1 | L2 | L3 | For Cable | ||
| CGPG7 | PG-7 | 0.49” (12.5mm) | 0.32” (8.3mm) | 0.27” (6.9mm) | 0.31” (7.9mm) | 0.78” (20.0mm) | 0.52” (13.3mm) | 0.13” ~ 0.23” (3.5mm ~ 6mm) | ||
| CGPG11 | PG-11 | 0.72” (18.3mm) | 0.51” (13.2mm) | 0.41” (10.5mm) | 0.31” (7.9mm) | 0.93” (23.7mm) | 0.72” (18.3mm) | 0.19” ~ 0.39” (5mm ~ 10mm) | ||
| CGPG13.5 | PG-13.5 | 0.80” (20.4mm) | 0.61” (15.5mm) | 0.47” (12.0mm) | 0.35” (8.9mm) | 0.96” (24.6mm) | 0.74” (18.9mm) | 0.23” ~ 0.47” (6mm ~ 12mm) | ||
| CGPG16 | PG-16 | 0.88” (22.5mm) | 0.67” (17.2mm) | 0.55” (14.0mm) | 0.38” (9.8mm) | 1.03” (26.2mm) | 0.76” (19.5mm) | 0.39” ~ 0.55” (10mm ~ 14mm) | ||
| CGP21 | PG-21 | 1.11” (28.3mm) | 0.88” (22.4mm) | 0.72” (18.4mm) | 0.42” (10.8mm) | 1.18” (30.0mm) | 0.93” (23.7mm) | 0.51” ~ 0.70” (13mm ~ 18mm) | ||
| CGPG29 | PG-29 | 1.45” (37.0mm) | 1.20” (30.6mm) | 0.98” (25.0mm) | 0.42” (10.8mm) | 1.37” (35.0mm) | 1.07” (27.4mm) | 0.70” ~ 0.98” (18mm ~ 25mm) | ||
| CGPG36 | PG-36 | 1.85” (47.0mm) | 1.38” (35.3mm) | 1.39” (35.5mm) | 0.57” (14.5mm) | 1.66” (42.3mm) | 1.19” (30.3mm) | 0.86” ~ 1.25” (22mm ~ 32mm) | ||
| CGPG42 | PG-42 | 2.12” (54.0mm) | 1.57” (40.0mm) | 1.57” (40.0mm) | 0.57” (14.5mm) | 1.73” (44.0mm) | 1.22” (31.2mm) | 1.18” ~ 1.49” (30mm ~ 38mm) | ||
| CGPG48 | PG-48 | 2.33” (59.3mm) | 1.70” (43.2mm) | 1.81” (46.0mm) | 0.61” (15.6mm) | 1.68” (42.7mm) | 1.23” (31.3mm) | 1.33” ~ 1.73” (34mm ~ 44mm) | ||
| NPT Cable Glands | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| |||||||||
| Model # | Thread | Thread outside diameter | D2 | B1 | L1 | L2 | L3 | For Cable | |
| C1 | C2 | ||||||||
| CGNPT14 | 1/4-18 NPT | 0.52” (13.2mm) | 0.51” (13.1mm) | 0.32” (8.2mm) | 0.27” (6.9mm) | 0.30” (7.8mm) | 0.77” (19.7mm) | 0.51” (13.2mm) | 0.11” ~ 0.25” (3mm ~ 6.5mm) |
| CGNPT38 | 3/8-18 NPT | 0.66” (16.7mm) | 0.63” (16.2mm) | 0.42” (10.8mm) | 0.41” (10.5mm) | 0.57” (14.6mm) | 0.93” (23.8mm) | 0.66” (16.8mm) | 0.19” ~ 0.39” (5mm ~ 10mm) |
| CGNPT12 | 1/2-14 NPT | 0.83” (21.2mm) | 0.81” (20.8mm) | 0.58” (14.9mm) | 0.55” (14.0mm) | 0.50” (12.9mm) | 1.11” (28.4mm) | 0.73” (18.7mm) | 0.39” ~ 0.55” (10mm ~ 14mm) |
| CGNPT34 | 3/4-14 NPT | 1.03” (26.3mm) | 1.00” (25.6mm) | 0.72” (18.5mm) | 0.72” (18.4mm) | 0.57” (14.5mm) | 1.14” (29.2mm) | 0.87” (22.3mm) | 0.51” ~ 0.70” (13mm ~ 18mm) |
| CGNPT1 | 1-11.5 NPT | 1.30” (33.2mm) | 1.29” (32.9mm) | 1.02” (26.0mm) | 0.98” (25.0mm) | 0.58” (14.9mm) | 1.37” (35.0mm) | 1.01” (25.7mm) | 0.70” ~ 0.98” (18mm ~ 25mm) |
| CGNPT114 | 1 1/4-11.5 NPT | 1.64” (41.9mm) | 1.62” (41.2mm) | 1.25” (32.0mm) | 1.29” (33.0mm) | 0.71” (18.2mm) | 1.63” (41.6mm) | 1.22” (31.1mm) | 0.86” ~ 1.25” (22mm ~ 32mm) |
| Right Angle NPT Cable Glands | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| |||||||||||
| Model# | Thread | Thread outside diameter | D2 | B1 | L1 | L2 | L3 | L | H | For Cable | |
| C1 | C2 | ||||||||||
| CGRANPT12 | 1/2 -14 NPT | 0.83” (21.2mm) | 0.82” (20.8mm) | 0.55” (14.0mm) | 0.57” (14.5mm) | 0.58” (14.7mm) | 0.46” (11.75mm) | 0.72” (18.4mm) | 2.03” (51.6mm) | 1.23” (31.2mm) | 0.39” ~ 0.51” (10mm ~ 13mm) |
| CGRANPT38 | 3/8 -18 NPT | 0.66” (16.7mm) | 0.64” (16.2mm) | 0.47” (12.0mm) | 0.37” (9.3mm) | 0.46” (11.7mm) | 0.39” (9.85mm) | 0.66” (16.7mm) | 1.91” (48.5mm) | 1.18” (30.0mm) | 0.19” ~ 0.35” (5mm ~ 9mm) |
| CGRANPT34 | 3/4 -14 NPT | 1.04” (26.3mm) | 1.01” (25.6mm) | 0.76” (19.2mm) | 0.65” (16.4mm) | 0.58” (14.8mm) | 0.49” (12.55mm) | 0.88” (22.3mm) | 2.54” (64.5mm) | 1.64” (41.6mm) | 0.51” ~ 0.63” (13mm ~ 16mm) |
