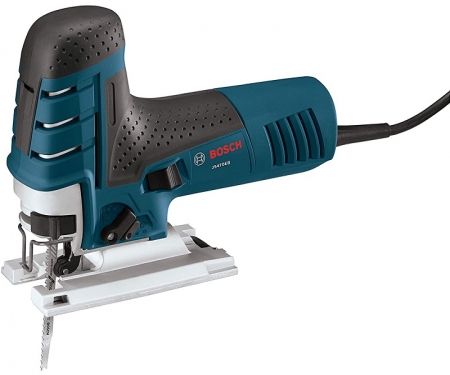

BOSCH® 7.0 Amp Barrel-Grip Jigsaw - JS470EB
Excellent choice for curve-cutting. Delivers up to 3,100 strokes/min
0.0 / 5
BOSCH® 7.0 Amp Barrel-Grip Jigsaw Features
- Large die-cast aluminum footplate – provides a no-mar plastic overshoe
- Ergonomic body – features an upfront grip area for maximum control, precision and comfort
- Soft-grip areas – offers a solid, comfortable grip
- Powerful 7.0 Amp motor – delivers up to 3,100 strokes per minute
- Variable-speed control – includes a dial to control operating speed
- Constant Response circuitry – for consistent performance under load
- Multi-directional blade clamp – superior grip of T-shank blades (does not accept U-shank blades)
- Aluminum gearbox with insulated cover – provides durability
- Toolless blade-change system – permits fast blade insertion
- Ejection lever – eliminates the need to touch hot blades
- Four orbital-action settings – varied blade strokes
- Internal precision control – precision-machined plunging system and low-vibration design for enhanced accuracy and extremely smooth operation
- Dust blower with on/off switch – keeps the cut line visible and free of dust
- Fully counterbalanced low-vibration mechanism – ensures extremely smooth operation
The Bosch JS470EB Barrel-Grip Jig Saw provides unsurpassed cut precision. Finish carpenters and kitchen and bath installers will appreciate the best-in-class 7.0 Amp motor and variable-speed control, making this saw an excellent choice for curve-cutting. It delivers 500 up to 3,100 strokes per minute – with a stroke length of 1 In. It has an ergonomic body with an upfront soft-grip handle for comfort and user control. It was manufactured with an aluminum gearbox. This fully counterbalanced low-vibration mechanism provides a low-vibration plunging design and Constant Response circuitry for consistent speed under load. It has a large die-cast aluminum footplate with a no-mar plastic overshoe. The JS470EB's multidirectional blade clamp delivers superior grip of T-shank blades (but it does not accept U-shank blades). A variable-speed dial sets the operating speed. The blade-ejection lever that eliminates need to touch hot blades. It has a dust blower for max cut-line visibility.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
TECHNICAL DATA
| Amperage | 7.0 |
| Bevel Angle Range | 45° |
| Category | Jig Saws |
| Cutting Capacity- Soft Wood | 5-7/8" |
| Cutting Capacity-Aluminum | 1 |
| Cutting Capacity-Mild Steel | 0.375 |
| Dust Blower | Yes |
| Dust Collection | Yes |
| Height | 7.0" |
| Hertz | 60 |
| Jig Saw Blade Type | Jig Saw T-Shank |
| Length | 7.0" |
| Max. Bevel Capacity (°) | 45 |
| Max. Bevel Cut | 45° |
| No Load SPM | 500-3,100 |
| Rating | 120V |
| Stroke Length | 1 |
| Voltage | 120V |
| Weight | 5.9lb |
| Width | 2.5" |
| Works With | Jig Saw Guide |
| Dust Collection Attachment | |
| Anti-Splinter Insert | |
| Includes | (1) JS470EB 7.0 Amp Barrel-Grip Jig Saw, (1) Non-Marring Overshoe (2601099183), (1) Anti-Splinter Insert, (1) Jig Saw Blade, (1) Bevel Wrench, (1) Carrying Case |
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, and in its original packaging. You’ll also need the receipt or proof of purchase.
To start a return, you can fill out the ORDER RETURN FORM HERE. If your return is accepted, we’ll send you the instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.
Exceptions / non-returnable items
Certain types of items cannot be returned, like custom products (such as special orders or personalized items). Please get in touch if you have questions or concerns about your specific item. Certain Items will Carry restocking fees for us to take back into our stock, This is due to items being made to order or for being an oversized item.
Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
The Bosch JS470EB Barrel-Grip Jig Saw provides unsurpassed cut precision. Finish carpenters and kitchen and bath installers will appreciate the best-in-class 7.0 Amp motor and variable-speed control, making this saw an excellent choice for curve-cutting. It delivers 500 up to 3,100 strokes per minute – with a stroke length of 1 In. It has an ergonomic body with an upfront soft-grip handle for comfort and user control. It was manufactured with an aluminum gearbox. This fully counterbalanced low-vibration mechanism provides a low-vibration plunging design and Constant Response circuitry for consistent speed under load. It has a large die-cast aluminum footplate with a no-mar plastic overshoe. The JS470EB's multidirectional blade clamp delivers superior grip of T-shank blades (but it does not accept U-shank blades). A variable-speed dial sets the operating speed. The blade-ejection lever that eliminates need to touch hot blades. It has a dust blower for max cut-line visibility.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
TECHNICAL DATA
| Amperage | 7.0 |
| Bevel Angle Range | 45° |
| Category | Jig Saws |
| Cutting Capacity- Soft Wood | 5-7/8" |
| Cutting Capacity-Aluminum | 1 |
| Cutting Capacity-Mild Steel | 0.375 |
| Dust Blower | Yes |
| Dust Collection | Yes |
| Height | 7.0" |
| Hertz | 60 |
| Jig Saw Blade Type | Jig Saw T-Shank |
| Length | 7.0" |
| Max. Bevel Capacity (°) | 45 |
| Max. Bevel Cut | 45° |
| No Load SPM | 500-3,100 |
| Rating | 120V |
| Stroke Length | 1 |
| Voltage | 120V |
| Weight | 5.9lb |
| Width | 2.5" |
| Works With | Jig Saw Guide |
| Dust Collection Attachment | |
| Anti-Splinter Insert | |
| Includes | (1) JS470EB 7.0 Amp Barrel-Grip Jig Saw, (1) Non-Marring Overshoe (2601099183), (1) Anti-Splinter Insert, (1) Jig Saw Blade, (1) Bevel Wrench, (1) Carrying Case |
