Flexo Kevlar Braided Sleeving

Stronger Than Steel Yet Still Soft & Pliable - Will Not Melt or Burn

Kevlar Braided Sleeving Features

  • Up To 20 Times Stronger Than Steel
  • Dense Braid For Full Coverage
  • Operating Temps: -274°F to 320°F (-170°C to 160°C)
  • Will Not Melt, Burn or Support Combustion
  • Stays Soft & Pliable
  • Resists Acids, Bases, Solvents, & Fuels
  • Excellent Abrasion Resistance
  • Cuts With Flexo Aramid Shears
Click for More Details or Description

*Flexo KV is degraded by ultraviolet light.*

Require Splice Free? Please Call 1-877-284-7760

Inside Diameters Are Measured as Round Not Flat

Product Details

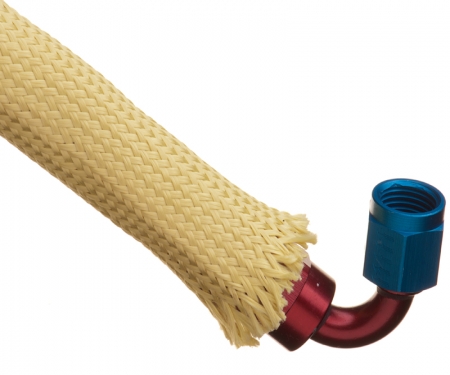

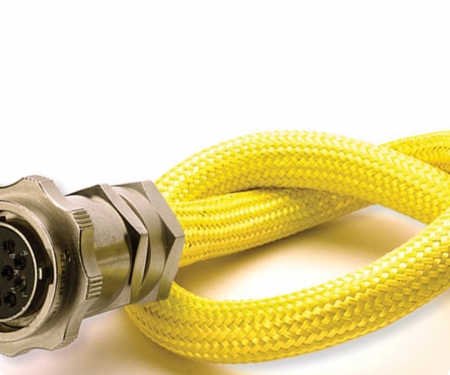

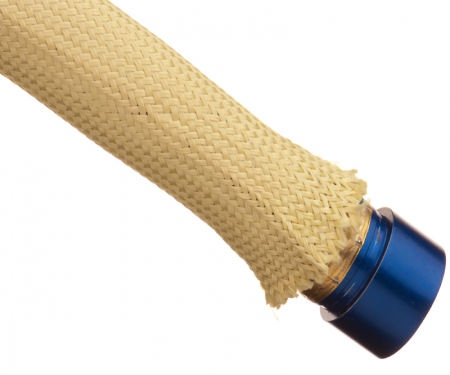

Flexo Kevlar braided sleeving is a soft, flexible cable sleeving that’s perfect for bundling and protecting vulnerable components from the most extreme environmental conditions. Kevlar sleeving is braided from aramid fibers and has all of Flexo Kevlar braided sleeving’s well-known characteristics of durability, pliability and extraordinary tensile strength. Kevlar braided sleeving fibers are up to 20 times stronger than steel fibers of equal diameter.

Kevlar braided sleeving has excellent thermal stability, permitting long-term, continuous use at temperatures as low as -274°F and as high as 320°F. Short term exposure up to 572°F can be tolerated. Flexo Kevlar braided sleeving does not melt or support combustion. Kevlar braided  sleeving provides extreme strength and durability, yet is lightweight and easy to install.

Please note that Flexo KV is degraded by ultraviolet light. Do not store in direct sunlight. Fluoescent lighting will cause discoloration, but will not affect fiber mechanical properties.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Nominal
Size
Product
Part #
Expansion
Range
Standard
Spool Put-Ups
Colors Lbs/
100'
Min. Max. Bulk Shop
1/4"
1/2"
3/4"
1"
1 1/4"
1 1/2"
2"
KVN0.25YL
KVN0.50YL
KVN0.75YL
KVN1.00YL
KVN1.25YL
KVN1.50YL
KVN2.00YL
1/8"
1/4"
1/2"
3/4"
1"
1 1/4"
1 3/4"
5/16"
5/8"
7/8"
1 1/4"
1 5/8"
2"
2 1/2"
500'
250'
250'
200'
125'
100'
100'
50'
50'
50'
25'
25'
25'
25'
1
1
1
1
1
1
1
0.30
0.74
1.44
1.92
2.40
2.90
3.60



Physical Properties
Monofilament Thickness (ASTM D-204)
Flammability Rating
Recommended Cutting Flexo Aramid Shears
Colors 1
Wall Thickness .02
Tensile Strength - Yarn (ASTM D-2265) lbs. 39
Abrasion Resistance Medium
Specific Gravity 1.44
Moisture Absorption % (ASTM D-570)



Hard Vacuum Data (ASTM E-595 at 10-5 torr)
TML 3.13
CVCM .19
WVR 1.76
Smoke D-Max (ASTM E-662)
Outgassing High
Oxygen Index (ASTM D-2863) 29



Chemical Resistance

1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected
Aromatic Solvents 2
Alipahtic Solvents 2
Chlorinated Solvents 2
Weak Bases 1
Strong Bases 2
Salt Water (O-S-1926) 1
Hydraulic Fluid (MIL-H-5606) 1
Lubricating Oil (MIL-L-7808) 1
De-Icing Fluid (MIL-A-8243) 1
Strong Acids 2
Strong Oxidants 2
Esters/Ketones 2
UV Light 4
Petroleum 1
Fungus (ASTM G-21) 2
Salts 1



Operating Temperatures
Minimum Continuous -274°F/-170°C
Maximum Continuous (MIL-I-23053) 320°F/160°C



Other Information
Halogen Free Yes
RoHS
UL/CSA No
SVHC
