L6 Liquid Repellant Sleeving

Wrap-Around Fluid Repellant Protection For Wires & Cables

L6 Liquid Wrap Sleeving Features

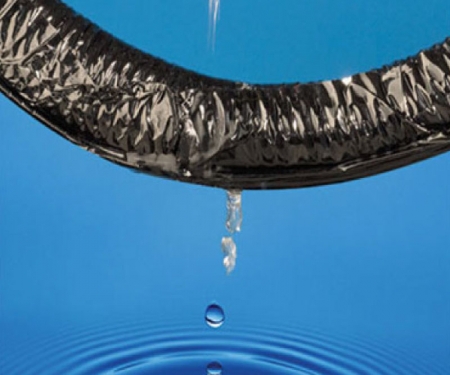

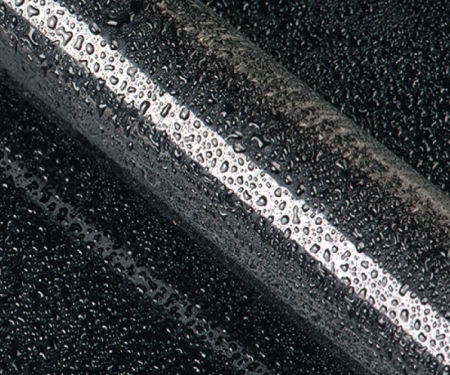

  • Water repellent When Properly Sealed
  • Will Not Support Growth of Bacteria
  • Disinfects Easily
  • Adhesive Resists Most Cleaners & Disinfectants
Click for More Details or Description

Inside Diameters Are Measured as Round Not Flat

Product Details

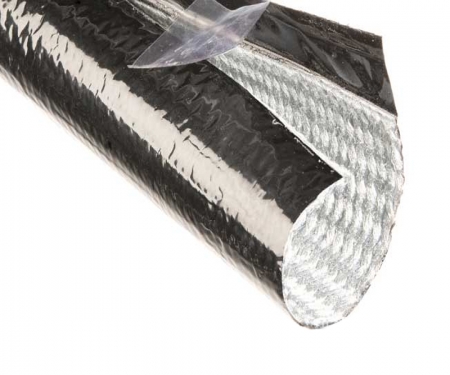

L6 Liquid Wrap semi-rigid wrap-around sleeving is engineered from tough braided polyester, and laminated with a layer of strong Mylar sheeting. This combination provides a strong and lightweight solution for any application that requires protection from repeated exposure to the elements.

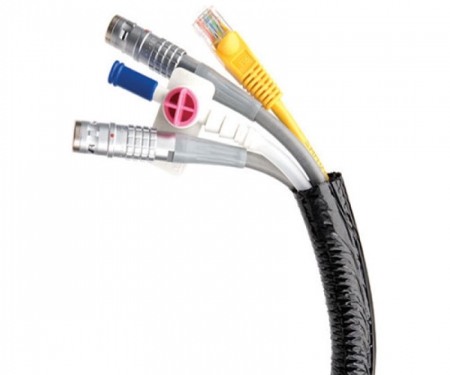

The wrap-around construction, with 12% edge overlap makes installation easy over existing assemblies or harnesses, and the extra wide adhesive strip ensures a positive, aggressive seal against damage from exposure.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Nominal
Size
Product
Part #
Wall
Thickness
8' Pcs. Put-Ups Available
Colors
Lbs/
10Pcs.
Bulk Box Box 8x8 Box 6x6 Box 4x4
3/8"
1/2"
3/4"
1"
1 1/4"
L6N0.38
L6N0.50
L6N0.75
L6N1.00
L6N1.25
.046"
.046"
.046"
.046"
.046"
125
125
60
44
30
45
35
25
15
10
25
20
15
10
5
15
12
5
4
3
BK
BK
BK
BK
BK
1.8
2.0
3.6
4.4
5.2



Physical Properties
Recommended Cutting Scissor
Colors 2
Wall Thickness .046
Specific Gravity 1.38
Moisture Absorption .1-.2



Chemical Resistance

1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected
Aromatic Solvents 2
Alipahtic Solvents 1
Chlorinated Solvents 2
Weak Bases 1
Strong Bases 3
Salt Water (O-S-1926) 1
Hydraulic Fluid (MIL-H-5606) 1
Lubricating Oil (MIL-A-8243) 1
De-Icing Fluid (MIL-A-8243) 1
Strong Acids 3
Strong Oxidants 2
Esters/Ketones 2
UV Light 1
Petroleum 1
Fungus (ASTM G-21) 1
Salts 1



Operating Temperatures
Minimum Continuous -94°F/-70°C
Maximum Continuous (MIL-I-23053) 257°F/125°C
Melt (ASTM D-2117) 482°F/250°C



Other Information
Halogen Free Yes
RoHS Yes
UL/CSA Yes
SVHC None
