Techflex® Insultherm® Heavy Duty Braided Cable Sleeving
Acryllic Coated Fiberglass Sleeving - Max Temp: 1,200°F
0.0 / 5

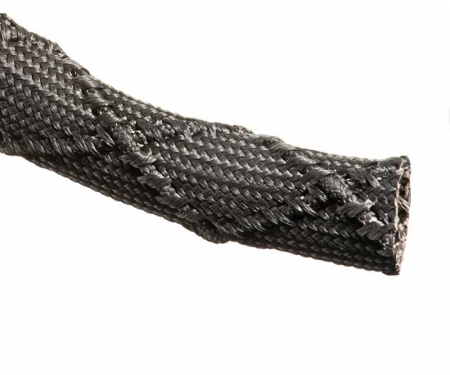

Insultherm Heavy Duty Sleeving
- Heavy Weight Braided Fiberglass Wont Burn, Melt or Become Brittle
- Minimal Dusting When Cut & Handled
- Cut and Abrasion Resistant
- Easy to Install - Cuts with Scissors
- Resists Gasoline and Engine Chemicals
- Inside Diameters Are Measured as Round Not Flat

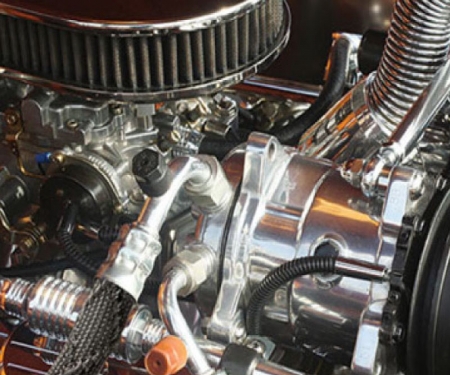

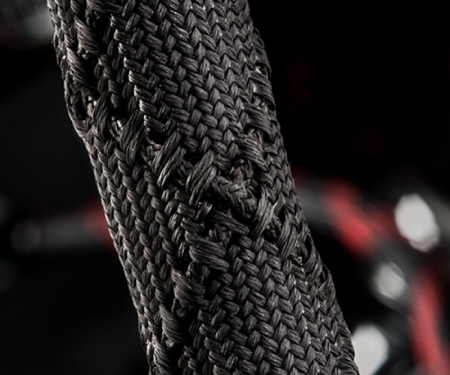

INSULTHERM Heavy Duty is a braided fiberglass sleeving made in a heavy wall construction with a high temp cord braided into the sleeving. Insultherm Heavy Duty sleeving is saturated with high temperature acrylic resins which adds rigidity and reduces fray when cut. The high temperature fiberglass cord braided into the sleeving adds significant abrasion protection and allows the sleeving to expand to much larger diameters, making it easier to apply over longer lengths. Insultherm Heavy Duty sleeving is ideal heat protection for cables and hoses in a wide range of available sizes and will withstand 1,200°F temperatures. This sleeving is designed to provide thermal insulation and protection for EGR tubes, fuel lines, hydraulic and industrial hose applications as well as many welding and automotive applications.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Maximum Diameter | Wall Thickness | Standard Spool Put-Ups | Colors | Lbs/ 100' | |
| Spool | Spool | ||||||
| 1/2" 3/4" 1" 1 1/4" 1 3/8" 1 1/2" | FGS0.50BK FGS0.75BK FGS1.00BK FGS1.25BK FGS1.38BK FGS1.50BK | 7/8" 2 3/4" 2 1/2" 3 3/8" 4 3/8" 5 3/8" | .050" .058" .073" .072" .072" .090" | 200' 200' 200' 100' 100' 100' | 50' 50' 50' 25' 25' 25' | BK BK BK BK BK BK | 7.30 13.60 17.00 21.70 24.75 27.80 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | NA |
| Flammability Rating | VW-1 |
| Recommended Cutting | Scissor |
| Colors | 1 |
| Wall Thickness | .050 - .090 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | NA |
| Abrasion Resistance | High |
| Specific Gravity | 1.0 - 1.8 |
| Moisture Absorption % (ASTM D-570) | .01 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .02 |
| CVCM | .01 |
| WVR | .00 |
| Smoke D-Max (ASTM E-662) | NA |
| Outgassing | Low |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 1 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 2 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 2 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 1,202°F/650°C |
| Melt (ASTM D-2117) | 2,048°F/1,120°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | Yes |
| SVHC | None |
25% Restocking Fee Applicable
30 Day Return & Refund Policy
If you are not entirely satisfied with your purchase, we're here to help. You have 30 calendar days to return an item from the date you received it. To be eligible for a return, your item must be unused and in the same condition that you received it. Your item must be in the original packaging.
You are required to have an RMA (Returned Merchandise Authorization) assigned by our customer service team. To apply for an RMA request Form linked here.
Undeliverable Shipments:
- In the event that the customers shipping address provided is deemed undeliverable by the shipping carrier, shipping fee's will not be refunded. Instead it is the customers responsibility to provide a deliverable address.
DEFECTIVE, DAMAGED, OR INCORRECT ITEMS SHIPPED
If you have received a defective, damaged, or incorrect product, do not worry! Please contact us by phone or the Contact Us Form within five (5) days of receiving the product, along with the invoice or packing slip, to schedule a return. We will replace these products at no additional cost. Please keep in mind that we may require photos for documentation and to authorize call tags for returns.
Because we put our customers’ experience first, any defective, damaged, or incorrectly shipped products by CTAM, or by our manufacturers, will be re-shipped at our expense. We will also provide you with a return shipping label with detailed shipping instructions.
Please note that if the item is damaged as a result of the customer’s actions, then a return will not be approved, and the damaged items will be discarded. If the customer wants to keep the damaged items, they must first cover the shipping fees, after which the company will return the damaged items. After the five (5) day time has expired, CTAM will not be responsible for any defective, damaged, or incorrect items, regardless of who is at fault.
Refunds
Once we receive your item, we will inspect it and we will immediately notify you on the status of your refund after inspecting the item. If your return is approved, we will initiate a refund to your credit card (or original method of payment). You will receive the credit within 48 hours after product condition is verified.
Shipping Fees
You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund. For additional information in this section, create your own Return & Refund Policy.
Contact Us
If you have any questions on how to return your item to us, contact us using our Email Form Here… Or call during our business working hours at 1-877-284-7760
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
INSULTHERM Heavy Duty is a braided fiberglass sleeving made in a heavy wall construction with a high temp cord braided into the sleeving. Insultherm Heavy Duty sleeving is saturated with high temperature acrylic resins which adds rigidity and reduces fray when cut. The high temperature fiberglass cord braided into the sleeving adds significant abrasion protection and allows the sleeving to expand to much larger diameters, making it easier to apply over longer lengths. Insultherm Heavy Duty sleeving is ideal heat protection for cables and hoses in a wide range of available sizes and will withstand 1,200°F temperatures. This sleeving is designed to provide thermal insulation and protection for EGR tubes, fuel lines, hydraulic and industrial hose applications as well as many welding and automotive applications.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Maximum Diameter | Wall Thickness | Standard Spool Put-Ups | Colors | Lbs/ 100' | |
| Spool | Spool | ||||||
| 1/2" 3/4" 1" 1 1/4" 1 3/8" 1 1/2" | FGS0.50BK FGS0.75BK FGS1.00BK FGS1.25BK FGS1.38BK FGS1.50BK | 7/8" 2 3/4" 2 1/2" 3 3/8" 4 3/8" 5 3/8" | .050" .058" .073" .072" .072" .090" | 200' 200' 200' 100' 100' 100' | 50' 50' 50' 25' 25' 25' | BK BK BK BK BK BK | 7.30 13.60 17.00 21.70 24.75 27.80 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | NA |
| Flammability Rating | VW-1 |
| Recommended Cutting | Scissor |
| Colors | 1 |
| Wall Thickness | .050 - .090 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | NA |
| Abrasion Resistance | High |
| Specific Gravity | 1.0 - 1.8 |
| Moisture Absorption % (ASTM D-570) | .01 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .02 |
| CVCM | .01 |
| WVR | .00 |
| Smoke D-Max (ASTM E-662) | NA |
| Outgassing | Low |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 1 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 2 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 2 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 1,202°F/650°C |
| Melt (ASTM D-2117) | 2,048°F/1,120°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | Yes |
| SVHC | None |
