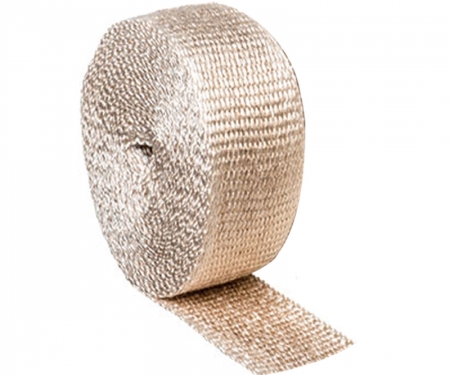

Insultherm Silica Header Wrap

Silica Wrap Withstands Continuous Heat up to 2,000°F

Insultherm Silica Header Wrap Features

  • Maximum Continuous (MIL-I-23053) Operating Temperature Range: 2,000°F / 1,093°C
  • Easy to Install
  • Extremely High Temperature Resistance
  • Cut and Abrasion Resistant
  • Resists Gasoline and Engine Chemicals
  • Halogen Free
  • Provides professional look on finished product
  • Melt (ASTM D-2117) : 3,000°F/1,649°C
Click for More Details or Description

Product Details

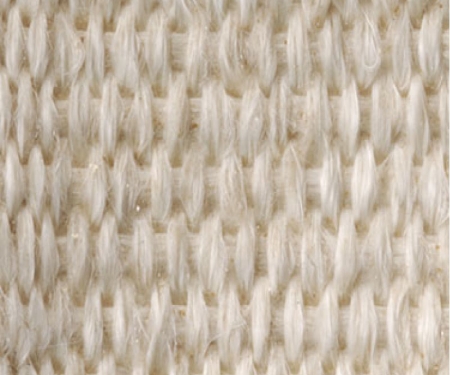

Insultherm Silica Header Wrap is made from texturized amorphous silica filament yarn woven into a strong and flexible form. Because the yarn is texturized into a bulky form it provides excellent insulating values.

Silica Header Wrap is not made from leached fiberglass, resulting in a much more wear resistant finished product.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Nominal
Size
Product
Part #
Wall Thick. Widths Max Cont. Temp. Standard Spool
Put-Ups
Lbs/
100'
Bulk 1 Bulk 2 Bulk 3
1"
2"
HSN1.00NT
HSN2.00NT
1/16"
1/16"
1"
2"
2,000°F
2,000°F
100'
100'
50'
50'
25'
25'
1.50
3.05



Physical Properties
Monofilament Thickness (ASTM D-204) NA
Flammability Rating Non-Flammable
Recommended Cutting Scissor
Colors 1
Wall Thickness .0625 - .125
Specific Gravity 2.2



Chemical Resistance

1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected
Aromatic Solvents 1
Alipahtic Solvents 1
Chlorinated Solvents 1
Weak Bases 1
Strong Bases 1
Salt Water (O-S-1926) 1
Hydraulic Fluid (MIL-H-5606) 1
Lubricating Oil (MIL-A-8243) 1
De-Icing Fluid (MIL-A-8243) 1
Strong Acids 2
Strong Oxidants 2
Esters/Ketones 1
UV Light 2
Petroleum 1
Fungus (ASTM G-21) 1
Salts 1



Operating Temperatures
Maximum Continuous (MIL-I-23053) 2,000°F/1,093°C
Melt (ASTM D-2117) 3,000°F/1,649°C



Other Information
UL/CSA No
Halogen Free Yes
