Volcano Wrap Sleeving

Woven Volcanic Rock Wrap Withstands Heat up to 1,500°F

Volcano Wrap Sleeving Features

  • Operating Temperature Range: -103° to 1,500°F (-75° to 816°C.)
  • Increases Performance in Exhaust Systems
  • Resists Common Chemicals & Solvents
  • Cuts Easily With Scissors or Shears
  • Halogen and Asbestos Free
  • 2,400°F / 1,316°C. Melt Temp.
Click for More Details or Description

Product Details

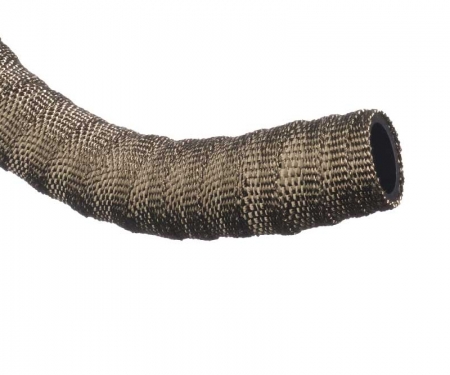

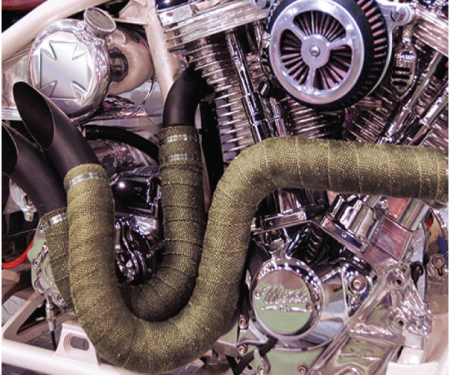

VOLCANO WRAP is made from continuous filament basalt fiber and is engineered for protection from temperatures 1,500°F. When wrapped around exhaust pipes, the unique construction creates attractive and durable finished product.

Volcano Wrap is 25% stronger and provides a 300°F increase in temperature protection over fiberglass wrap. The product is very rugged, and will not exhibit any vibration damage over long periods of use.

The volcanic rock fiber wrap is easy to install and will provide years of protection and good looks.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Nominal
Size
Product
Part #
Wall Thick. Widths Standard Spool
Put-Ups
  Available Colors Lbs/
100'
Bulk 1 Bulk 2 Bulk 3 Bulk 4
1"
2"
VWN1.00BA
VWN2.00BA
1/16"
1/16"
1"
2"
100'
100'
50'
50'
25'
25'
15'
15'
BA & BK
BA & BK
1.70
3.20



Physical Properties
Monofilament Thickness (ASTM D-204) NA
Flammability Rating Non-Flammable
Recommended Cutting Scissor
Colors 2
Wall Thickness .0625



Chemical Resistance

1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected
Aromatic Solvents 1
Alipahtic Solvents 1
Chlorinated Solvents 1
Weak Bases 1
Strong Bases 1
Salt Water (O-S-1926) 1
Hydraulic Fluid (MIL-H-5606) 1
Lubricating Oil (MIL-A-8243) 1
De-Icing Fluid (MIL-A-8243) 1
Strong Acids 2
Strong Oxidants 2
Esters/Ketones 1
UV Light 2
Petroleum 1
Fungus (ASTM G-21) 1
Salts 1



Operating Temperatures
Minimum Continuous -436°F/-260°C
Maximum Continuous (MIL-I-23053) 1,292°F/700°C
Melt (ASTM D-2117) 2,642°F/1,450°C



Other Information
UL/CSA No
