Ultratech® Ultimate Drain Guard

Removes: Sediment, Hydrocarbons & has Anti-Microbial Coating

0.0 / 5

(0)

Ultratech® Ultimate Drain Guard Features

  • Same hydrocarbon and sediment removal capabilities as the Ultra-Drain Guard, Oil & Sediment Plus Model but with additional antimicrobial properties.

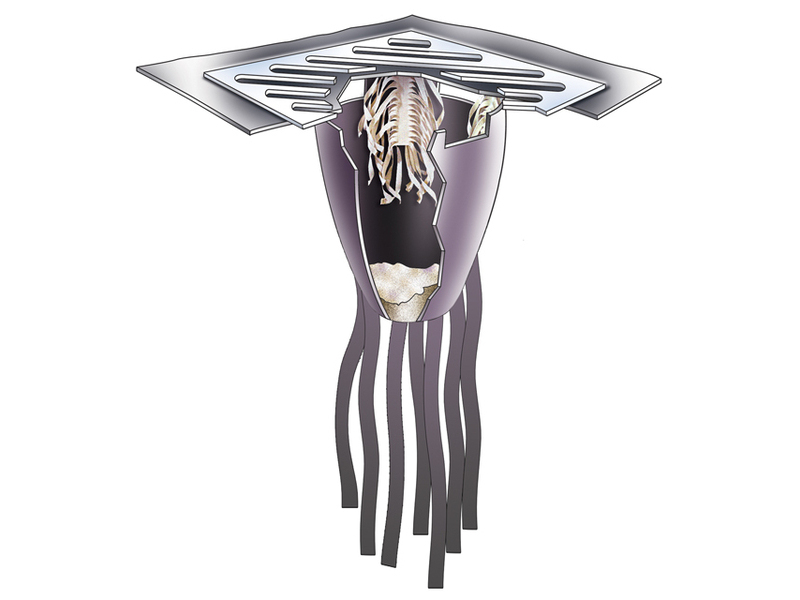

  • 1.5” x 20” strips of Ultra-X-Tex AM (Antimicrobial) hang from the bottom of the Drain Guard and become immersed in standing catch basin water, allowing contact with destructive bacteria.
  • Antimicrobial coated Ultra-X-Tex “tentacles” help address stormwater-related issues with single-cell organisms (bacteria, fungi, yeast, and algae) that are found in stagnant stormwater and catch basins.
  • Helps comply with NPDES, 40 CFR 122.26 (1999), and TMDL requirements.

The ultimate in catch basin inserts removes dirt, sediment, hydrocarbons, and utilizes an effective antimicrobial coating! Out of sight shouldn't mean out of mind. At least not when it comes to stormwater management. While many of UltraTech's products are designed to prevent pollutants from entering the system through the drain, the catch basin (the part that's "out of sight") shouldn't be ignored. Strips of antimicrobial material, attached to the bottom of this catch basin insert, mix with any standing water present. These coated "tentacles" help resolve issues of bacteria and algae-laden water often found in catch basins.

See More Technical Specifications


Ultimate Drain Guard Ultratech® is the ultimate in catch basin inserts, removing dirt, sediment, and hydrocarbons, while utilizing an effective antimicrobial coating!

Out of sight shouldn't mean out of mind. At least not when it comes to stormwater management. While many of UltraTech's products are designed to prevent pollutants from entering the system through the drain, the catch basin (the part that's "out of sight") shouldn't be ignored. Strips of antimicrobial material, attached to the bottom of this catch basin insert, mix with any standing water present. These coated "tentacles" help resolve issues of bacteria and algae-laden water often found in catch basins.

  • Same hydrocarbon and sediment removal capabilities as the Ultra-Drain Guard, Oil & Sediment Plus Model but with additional antimicrobial properties.
  • 1.5” x 20” strips of Ultra-X-Tex AM (Antimicrobial) hang from the bottom of the Drain Guard and become immersed in standing catch basin water, allowing contact with destructive bacteria.
  • Antimicrobial coated Ultra-X-Tex “tentacles” help address stormwater-related issues with single-cell organisms (bacteria, fungi, yeast, and algae) that are found in stagnant stormwater and catch basins.
  • Helps comply with NPDES, 40 CFR 122.26 (1999), and TMDL requirements.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Part # Quantity Dimensions in. (mm) Weight lbs. (kg) Containment Capacity gal. (L) Weight Capacity UDL (lbs)
9376 1 48 x 36 x 38 (1219.2 x 914.4 x 965.2) 3 (1.4) Up to 1.57 gallons (6 L) of Oil Up to 40 lbs. (18 kg) of Sediment
9377 10 48 x 36 x 38 (1219.2 x 914.4 x 965.2) 3 (1.4) Up to 1.57 gallons (6 L) of Oil Up to 40 lbs. (18 kg) of Sediment



Instructions and Maintenance

Specifications Sheet

We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must be in the same condition that you received it, and in its original packaging. You’ll also need the receipt or proof of purchase.

To start a return, you can fill out the ORDER RETURN FORM HERE. If your return is accepted, we’ll send you the instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.

Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.

Exceptions / non-returnable items
Certain types of items cannot be returned, like custom products (such as special orders or personalized items). Please get in touch if you have questions or concerns about your specific item. Certain Items will Carry restocking fees for us to take back into our stock, This is due to items being made to order or for being an oversized item.

Exchanges

The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.

Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.

Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.


What's the difference between this and your standard Ultra-Drain Guard?
Other than the additional strips of Ultra-X-Tex AM material sewn to the bottom, there is NO difference. We start with Oil & Sediment Plus Drain Guard (Part# 9219) and simply add the X-Tex AM strips. Everything from a construction and performance standpoint is the same.

How much water can the Drain Guard handle?

When new, the Drain Guard has a flow rate of 90 gpm/ft2. However, the unit has been designed with overflow ports.  These allow the Drain Guard a flow rate of 770 gpm which will prevent any flooding or ponding during extreme rain events.  Any water that goes through the overflow is essentially untreated.

How long will a Drain Guard last?
It is difficult to arrive at a definitive answer for this as there are several factors that will determine how long an Ultra-Drain Guard, Ultimate Model will last after it has been installed.  The amount of rainfall and the amount and type of pollutants that the unit will be exposed to, among other things will determine the Drain Guard's life expectancy.  For this reason, we recommend inspecting the unit after each significant rain event to better understand how much each Drain Guard will capture.  We have had test units in Seattle as well as Florida that were still working effectively after more than a year after installation.

Can the Ultra-Drain Guard be reused?
Yes, under most circumstances.  If the Drain Guard is filled with sand, silt, and sediment, it can be removed from the drain, emptied out and replaced.  Trash and debris can also be removed.  The exception is if the Drain Guard is saturated with oil, gas or other hydrocarbons.  Because these pollutants can be flushed out of the Drain Guard by a major rain event, it is recommended that the units be replaced instead of reused.

Are Drain Guards difficult to install?

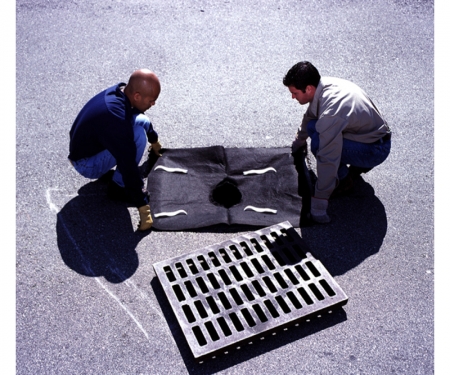

Usually, the most difficult part of installing an Ultra-Drain Guard is the handling of the catch basin's grating.  Depending on the area, these grates can be large and heavy and therefore a challenge to lift/move.  For that reason, a second set of hands is recommended.  The rest of the installation is quick and easy.

What size drains will this Drain Guard fit?
The Ultra-Drain Guard, Ultimate Model is designed to be installed in drains up to 30" x 40".

What other products could be used instead of the Drain Guard, Ultimate Model?

With the exception of the antimicrobial properties, you could achieve similar results by using one of our other Drain Guards.

Request a Quote

Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.

Quote Items
Search
Item Description
Quantity
SKU:

Contact Information

Product Details

Ultimate Drain Guard Ultratech® is the ultimate in catch basin inserts, removing dirt, sediment, and hydrocarbons, while utilizing an effective antimicrobial coating!

Out of sight shouldn't mean out of mind. At least not when it comes to stormwater management. While many of UltraTech's products are designed to prevent pollutants from entering the system through the drain, the catch basin (the part that's "out of sight") shouldn't be ignored. Strips of antimicrobial material, attached to the bottom of this catch basin insert, mix with any standing water present. These coated "tentacles" help resolve issues of bacteria and algae-laden water often found in catch basins.

  • Same hydrocarbon and sediment removal capabilities as the Ultra-Drain Guard, Oil & Sediment Plus Model but with additional antimicrobial properties.
  • 1.5” x 20” strips of Ultra-X-Tex AM (Antimicrobial) hang from the bottom of the Drain Guard and become immersed in standing catch basin water, allowing contact with destructive bacteria.
  • Antimicrobial coated Ultra-X-Tex “tentacles” help address stormwater-related issues with single-cell organisms (bacteria, fungi, yeast, and algae) that are found in stagnant stormwater and catch basins.
  • Helps comply with NPDES, 40 CFR 122.26 (1999), and TMDL requirements.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Part # Quantity Dimensions in. (mm) Weight lbs. (kg) Containment Capacity gal. (L) Weight Capacity UDL (lbs)
9376 1 48 x 36 x 38 (1219.2 x 914.4 x 965.2) 3 (1.4) Up to 1.57 gallons (6 L) of Oil Up to 40 lbs. (18 kg) of Sediment
9377 10 48 x 36 x 38 (1219.2 x 914.4 x 965.2) 3 (1.4) Up to 1.57 gallons (6 L) of Oil Up to 40 lbs. (18 kg) of Sediment



Instructions and Maintenance

Specifications Sheet

Product Manuals

Frequently Asked Questions

Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.


What's the difference between this and your standard Ultra-Drain Guard?
Other than the additional strips of Ultra-X-Tex AM material sewn to the bottom, there is NO difference. We start with Oil & Sediment Plus Drain Guard (Part# 9219) and simply add the X-Tex AM strips. Everything from a construction and performance standpoint is the same.

How much water can the Drain Guard handle?

When new, the Drain Guard has a flow rate of 90 gpm/ft2. However, the unit has been designed with overflow ports.  These allow the Drain Guard a flow rate of 770 gpm which will prevent any flooding or ponding during extreme rain events.  Any water that goes through the overflow is essentially untreated.

How long will a Drain Guard last?
It is difficult to arrive at a definitive answer for this as there are several factors that will determine how long an Ultra-Drain Guard, Ultimate Model will last after it has been installed.  The amount of rainfall and the amount and type of pollutants that the unit will be exposed to, among other things will determine the Drain Guard's life expectancy.  For this reason, we recommend inspecting the unit after each significant rain event to better understand how much each Drain Guard will capture.  We have had test units in Seattle as well as Florida that were still working effectively after more than a year after installation.

Can the Ultra-Drain Guard be reused?
Yes, under most circumstances.  If the Drain Guard is filled with sand, silt, and sediment, it can be removed from the drain, emptied out and replaced.  Trash and debris can also be removed.  The exception is if the Drain Guard is saturated with oil, gas or other hydrocarbons.  Because these pollutants can be flushed out of the Drain Guard by a major rain event, it is recommended that the units be replaced instead of reused.

Are Drain Guards difficult to install?
Usually, the most difficult part of installing an Ultra-Drain Guard is the handling of the catch basin's grating.  Depending on the area, these grates can be large and heavy and therefore a challenge to lift/move.  For that reason, a second set of hands is recommended.  The rest of the installation is quick and easy.

What size drains will this Drain Guard fit?
The Ultra-Drain Guard, Ultimate Model is designed to be installed in drains up to 30" x 40".

What other products could be used instead of the Drain Guard, Ultimate Model?

With the exception of the antimicrobial properties, you could achieve similar results by using one of our other Drain Guards.
