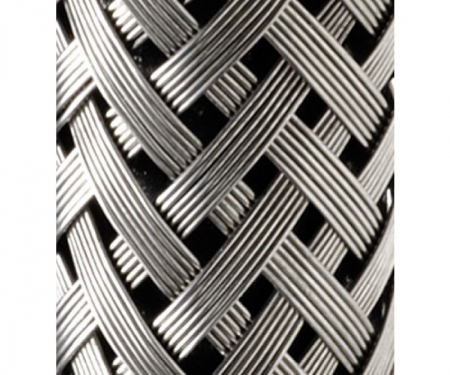

Kable Kontrol™ Stainless Steel Braided Sleeving

Expandable - Type 304 Steel - Available In 1/2" - 1-3/4" Diameters

Kable Kontrol™ Stainless Steel Braided Sleeving Features

  • Expands Upto 150%
  • Cuts Easily With Sheers
  • Will Not Discolor or Rust
  • Easy to Install

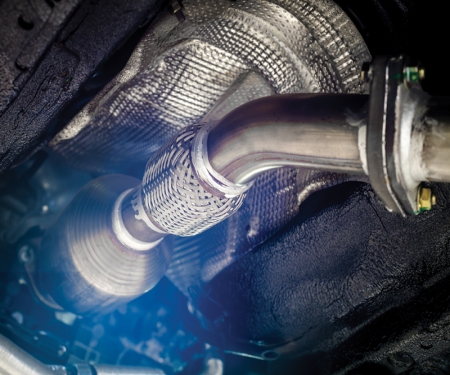

  • Great for Exterior Applications
  • Resists Abrasion
  • Resists Common Chemicals & Solvents
  • UV Resistant
  • High Melt Point: 1,454ºC/ 2,650ºF
  • Halogen Free

Stainless Steel Braided Sleeving is an ideal and inexpensive alternative protection for hoses against wear, blowout, and corrosion. Stainless braid sleeving is attractive and offers the durable protection of steel. Cut the desired length with shears or serrated scissors. Now you can take any stock or custom hose and slip a length of Stainless Steel Braiding over it. Hide the cut ends with clamps and remarkably have the same look and protection as custom over braided hoses at a fraction of the cost. Available in diameters and expansion range to fit any common hose or application.

Click for More Details or Description

Inside Diameters Are Measured as Round Not Flat

All Custom (Per Foot & 25') Cut Lengths Are
NON-CANCELLABLE & NON-REFUNDABLE

Product Details



Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Physical Properties
Monofilament Thickness (ASTM D-204) .010 - .016
Flammability Rating Non-Flammable
Recommended Cutting Shears
Colors 1
Wall Thickness .025 - .04





Hard Vacuum Data (ASTM E-595 at 10-5 torr)
TML .00
CVCM .00
WVR .00
Smoke D-Max (ASTM E-662) N/A
Outgassing Very Low
Operating Temperatures N/A
Melt (ASTM D-2117) 2,650°F/1,454°C





Chemical Resistance

1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected

Aromatic Solvents 1
Chlorinated Solvents 1
Strong Bases 2
Hydraulic Fluid (MIL-H-5606) 1
De-Icing Fluid (MIL-A-8243) 1
Strong Oxidants 2
UV Light 1
Fungus (ASTM G-21) 1
Alipahtic Solvents 1
Weak Bases 1
Salt Water (O-S-1926) 2
Lubricating Oil (MIL-A-8243) 1
Strong Acids 2
Esters/Keytones 1
Petroleum 1
Salts 2



Other Information
RoHS Yes
UL/CSA No
Halogen Free Yes
