Techflex® Flexo® Shield EMI Wire Shielding Metal Cable Sleeving
Provides High Level Of Shielding From EMI - Flame Retardant
0.0 / 5
Flexo Shield Braided Sleeving Features
- Material: Aramid & Tinned Copper
- Excellent EMI Shielding (1 MHz To 1 GHz)
- High Abrasion Resistance
- Extremely Flexible And Lightweight
- Cuts Easily with Shears
- Operating Temps: -40°F to 302°F (-40°C to 150°C)
- Halogen Free - RoHS Compliant
- Resists Common Chemicals & Solvents
- Melt Temp: 449°F/232°C

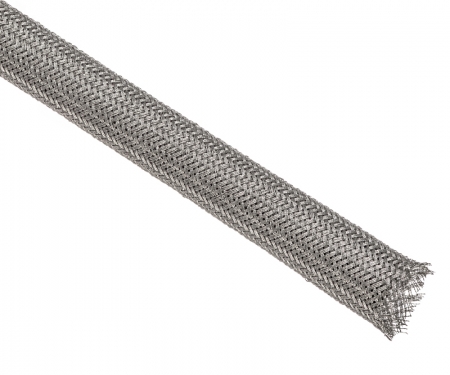

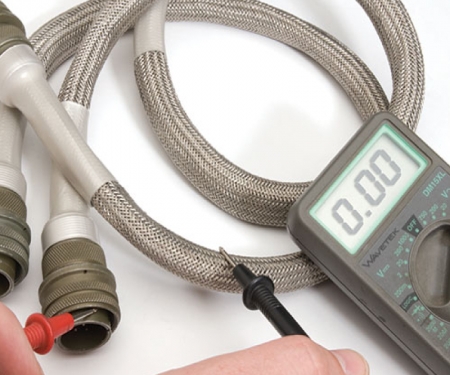

Flexo Shield is an expandable, high performance braided sleeving that provides a high level EMI (ElectroMagnetic Interference) shielding. Flexo Shield sleeving is cut and abrasion resistant, very flexible, strong and lightweight. With its high temperature aramid fiber core and special construction, Flexo Shield sleeving expands to fit over plugs and connectors and contracts back down for a perfect fit. Flexo Shield braided sleeving is great for applications where light weight and high performance are needed. Such applications may include computer systems, electronic office equipment, medical electronics, communications systems and many more. This product is intended for high flex, high temperature and environmentally tough conditions, making it appropriate for use in aerospace applications.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nom. Size | Product Part # | Wall Thick. | Expansion Range | Standard Spool Put-Ups | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| *1/8" *3/8" *1/2" *3/4" 1" 1 1/4" 1 1/2" | FSN0.13SV FSN0.38SV FSN0.50SV FSN0.75SV FSN1.00SV FSN1.25SV FSN1.50SV | .013" .013" .013" .013" .025" .025" .025" | 1/16" 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" | 1/4" 1/2" 3/4" 1" 1 1/4" 1 1/2" 1 3/4" | 328' 328' 328' 328' 328' 328' 328' | 164' 164' 164' 164' 164' 164' 164' | 0.74 1.38 2.09 2.80 2.90 3.40 3.90 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .010 |
| Flammability Rating | Non-Flammable |
| Recommended Cutting | Shears |
| Colors | 1 |
| Wall Thickness | .025 |
| Abrasion Resistance | Low |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .00 |
| CVCM | .00 |
| WVR | .00 |
| Outgassing | Very Low |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -40°F/-40°C |
| Maximum Continuous (MIL-I-23053) | 302°F/150°C |
| Melt (ASTM D-2117) | 449°F/232°C |
| Other Information | |
| RoHS | Yes |
| UL/CSA | Yes |
