Notrax Diamond Switchboard Floor Matting 831 Series

Protects From Electrical Shock | Industrial Diamond Plate Surface

0.0 / 5

(0)

Notrax Diamond Switchboard Floor Matting Features

  • Available Colors – Black and Black/Yellow
  • Electrically Insulative Type 2 PVC compound
  • Insulated matting engineered to protect workers from electric shock
  • Diamond Plate top surface - Added traction and easy to sweep clean
  • Each square foot of this matting is tested in conformance with ANSI/ASTM D-178 specifications
  • Class 2 Di-electric Strength: 30,000 volts
  • Proof test of 20,000 volts
  • Recommended maximum use voltage: 17,000
See More Technical Specifications

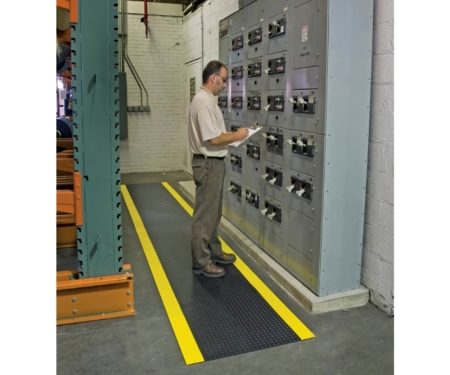

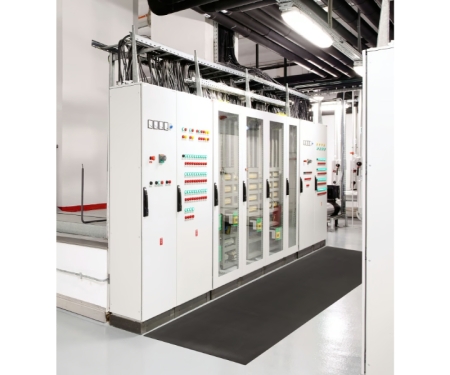

Notrax Diamond Switchboard Matting is a non-conductive floor matting made from a PVC compound, designed to provide insulation for the worker. The mat prevents the worker from being grounded, thereby eliminating the possibility of electrical shock. The diamond plate top surface provides increased traction and is easy to sweep clean. Switchboard matting is intended for use in dry environments in front of high voltage boxes, electrical fuse boxes and transformers.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Model No 831
Available Colors Black; Black/Yellow
Overall Thickness 1/4
Roll Sizes 2'x 75'  3'x 75'  4'x 75'
Group Ergonomic, Anti-fatigue & Safety Matting
Environment Dry Areas
Special Characteristics Free of DOP, free of DMF, free of ozone depleting substances, free of silicone and free of heavy metals|Recommended maximum usage: 17.000 Volts
Recommended Use Around electric sub-stations, transformers and switches, electrical panels, engine and generator rooms
Special Remarks It is highly recommended that the mat be replaced every 12 months for optimum performance
Surface Industrial Diamond Plate
Edges No borders
Usage Intensity Heavy duty
Material Specifications PVC (DOP free)
Process Calendering
Weight Lbs/sqft 1.7
REACH Compliant Reach compliant (Registration, Evaluation, Authorization and Restriction of Chemicals).
Anti-Fatigue Rating Good
Slip Resistance Rating Best
Wear Resistance Rating Best
