Kable Kontrol® 2:1 Diesel Heat Shrink Tubing
High Resistance to Diesel Fuels and Oils | MIL-23053/16 Compliant
0.0 / 5
Kable Kontrol® 2:1 Diesel Heat Shrink Tubing Features
- Diesel & Chemical Resistant: Designed for long-term exposure to diesel fuel, oils, hydraulic fluids, and harsh industrial chemicals without degrading.

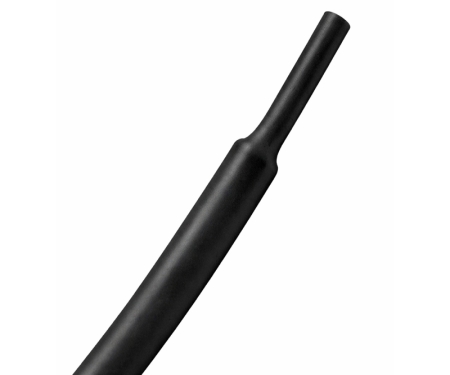

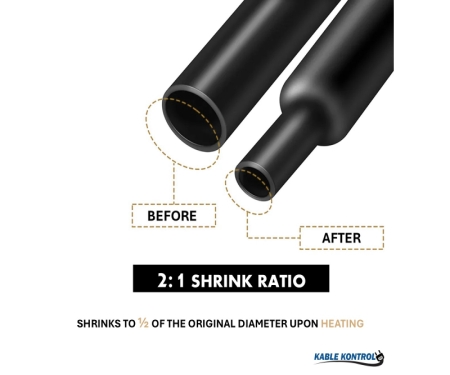

- 2:1 Shrink Ratio: Provides a tight, secure fit over wires, cables, terminals, and components for dependable insulation and protection.
- Extreme Temperature Performance: Continuous operating temperature range from -75°C to 150°C (-103°F to 302°F), suitable for demanding transportation and military environments.
- Flame Retardant Elastomer: Helps improve safety in high-risk applications by reducing flame spread.
- High Abrasion & Cut Resistance: Tough elastomeric construction protects against vibration, friction, and mechanical wear.
- Flexible After Recovery: Maintains flexibility after shrinking, preventing cracking or splitting during movement or vibration.
- Meets MIL-DTL-23053/16: Manufactured to meet stringent military performance requirements.

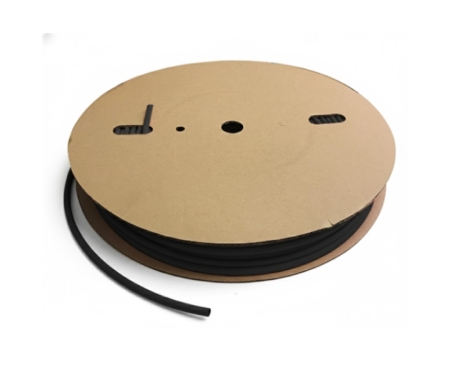

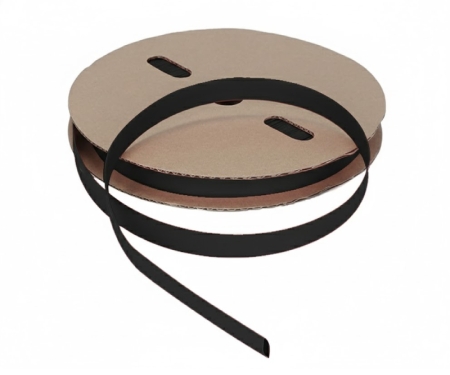

- Sold as Full Spools: Ideal for production, maintenance, and high-volume installations.

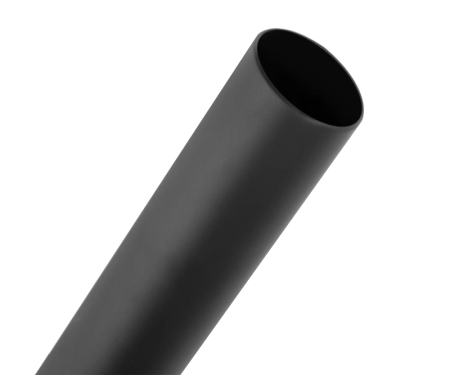

Kable Kontrol® 2:1 Diesel Resistant Heat Shrink Tubing is a high-performance elastomeric heat shrink solution, constructed from polyolefin, engineered for applications where exposure to diesel fuel, oil, hydraulic fluids, and aggressive chemicals is unavoidable. It provides superior protection for cables, wire harnesses, brake lines, solder joints, terminals, and electrical connections in harsh operating environments. This tubing delivers a reliable 2:1 shrink ratio, forming a snug, protective jacket that resists abrasion, cutting, and vibration-related damage. Its flame-retardant properties and wide operating temperature range -75°C to 150°C (-103°F to 302°F) make it well-suited for transportation, industrial, and military applications where safety and durability are critical. Designed to meet MIL-DTL-23053/16, this diesel-resistant heat shrink maintains flexibility after recovery, ensuring long-lasting performance without cracking or hardening. Sold in full spools, it’s an excellent choice for maintenance crews, OEMs, and large-scale installations requiring dependable chemical and mechanical protection.
Common Uses
- Wire harness protection in diesel engines
- Brake lines and fluid-exposed cable assemblies
- Military ground vehicles and support equipment
- Heavy-duty trucks, buses, and rail systems
- Industrial machinery with hydraulic systems
- Fuel-exposed electrical connections
- Abrasion protection for cables in high-vibration environments
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Property | Test Method | Standard | Typical Performance |
| Tensile Strength(MPa) | ASTM D2671 | ≥10.4 | 11.5 |
| Elongation(%) | ASTM D2671 | ≥250 | 350 |
| Tensile Strength after aging (MPa) | Ul224 158℃X168hr | ≥8.0 | 8.5 |
| Elongation after aging(%) | Ul224 158℃X168hr | ≥200 | 300 |
| Dieletric strength(kV/mm) | IEC 60243 | ≥11.9 | 15 |
| Flammability | ASTM D2671 B | Pass | Pass |

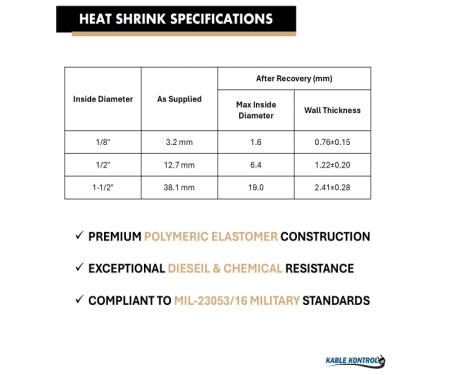

| Inside Diameter | As Supplied | After Recovery (mm) | |
| Max Inside Diameter | Wall Thickness | ||
| 1/8" | 3.2 mm | 1.6 | 0.76±0.15 |
| 1/2" | 12.7 mm | 6.4 | 1.22±0.20 |
| 1-1/2" | 38.1 mm | 19.0 | 2.41±0.28 |
