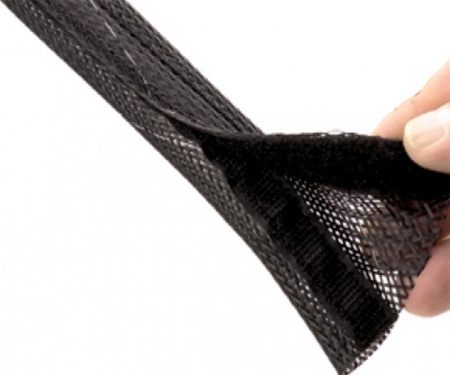

Flame Retardant Flexo Wrap Sleeving

Side Entry With Hook & Loop Closure - Will Not Support Combustion

Flame Retardant Flexo Wrap Sleeving Features

  • Hook & Loop Closure For Easy installation
  • Side Entry Design
  • Very High Abrasion Resistance
  • Expands To Fit Over Connectors
  • Operating Temps: -94°F to 257°F (-70°C to 125°C)
  • Halogen Free - RoHS Compliant
  • Resists Common Chemicals & Solvents
  • Organic Flame Inhibitor
  • Melt Temp: 482°F / 250°C
  • Cuts Easily With Hot Knife
Click for More Details or Description

Require Splice Free? Please Call 1-877-284-7760

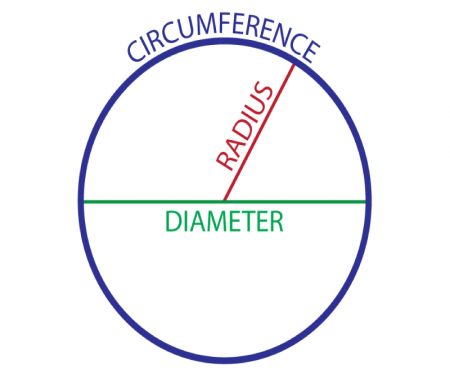

Inside Diameters Are Measured as Round Not Flat

Product Details

Flame Retardant Flexo Wrap sleeving provides the same hook and loop wire management flexibility as our standard Flexo Wrap along with the added safety feature of an organic flame inhibitor to provide an additional level of security.

Flexo Wrap Flame Retardant sleeving is a safe, economical solution for a wide range of cable management applications where moderate levels of flame protection are needed.

Flexo Wrap flame retardant sleeving is available in Black with a White Tracer to identify it as a flame retardant product.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Nominal
Size
Product
Part #
Hook & Loop
Width
Standard Spool Put-Ups Colors Lbs/
100'
Bulk Spool Shop Spool
1/2"
3/4"
1 1/4"
2"
2 1/2"
FWF0.50TB
FWF0.75TB
FWF1.25TB
FWF2.00TB
FXF2.50TB
1/4"
5/8"
5/8"
5/8"
5/8"
100'
100'
100'
100'
100'
20'
15'
12'
10'
10'
TB
TB
TB
TB
TB
1.30
1.80
2.30
3.20
3.75



Physical Properties
Monofilament Thickness (ASTM D-204) .010
Flammability Rating VW-1
Recommended Cutting Hot Knife
Colors 1
Wall Thickness .025
Tensile Strength - Yarn (ASTM D-2265) lbs. 5
Abrasion Resistance Medium
Specific Gravity 1.38
Moisture Absorption % (ASTM D-570) .1 - .2



Hard Vacuum Data (ASTM E-595 at 10-5 torr)
TML .19
CVCM .04
WVR .16
Smoke D-Max (ASTM E-662) 275
Outgassing Medium
Oxygen Index (ASTM D-2863) 31



Chemical Resistance

1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected
Aromatic Solvents 2
Alipahtic Solvents 1
Chlorinated Solvents 3
Weak Bases 1
Strong Bases 2
Salt Water (O-S-1926) 1
Hydraulic Fluid (MIL-H-5606) 1
Lubricating Oil (MIL-L-7808) 1
De-Icing Fluid (MIL-A-8243) 1
Strong Acids 3
Strong Oxidants 2
Esters/Ketones 2
UV Light 1
Petroleum 1
Fungus (ASTM G-21) 1
Salts 1



Operating Temperatures
Minimum Continuous -94°F/-70°C
Maximum Continuous (MIL-I-23053) 257°F/125°C
Melt (ASTM D-2117) 482°F/250°C



Other Information
Halogen Free Yes
RoHS Yes
UL/CSA Yes
SVHC None
