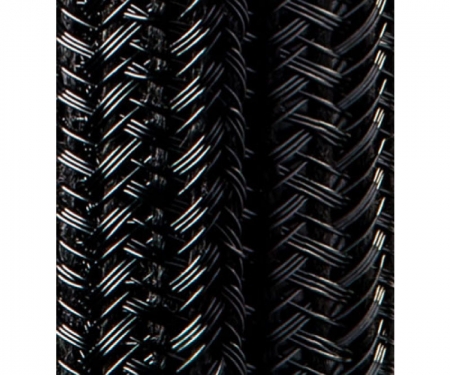

Techflex® Flame Retardant F6 Wrap Around Braided Cable Sleeving
Flexible - Wrap Around Sleeving - Will Not Support Combustion
0.0 / 5
F6 Flame Retardant Sleeving Features
- Organic Flame Inhibitor
- Very High Abrasion Resistance
- Opens Up To Fit Over Connectors
- Operating Temps: -94°F to 257°F (-70°C to 125°C)
- Halogen Free - RoHS Compliant
- Resists Common Chemicals & Solvents
- Melt Temp: 482°F/250°C
- Cuts Easily With Hot Knife

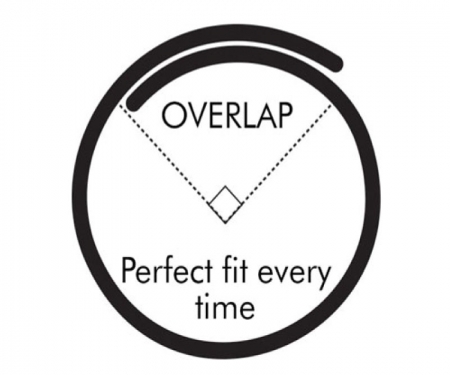

- 25% Overlap
Require Splice Free? Please Call 1-877-284-7760
Inside Diameters Are Measured as Round Not Flat
Flame spread is a vital safety consideration in applications as diverse as home built aircraft wiring and safely managing sound & lighting cables at clubs, concerts and theaters. To address these issues, and to provide unequaled flexibility and access, we have developed this unique sleeving product. Self-extinguishing F6 flame retardant sleeving fully complies with UL standard VW-1. The addition of an organic flame inhibitor to our triaxially braided F6 split sleeving provides the perfect solution to a wide range of cable management needs. Easy slip over installation, complete access along the entire run, economy, durability and UL certified flame retardance make F6 flame retardant sleeving is ideal when the goal is to manage wires and cables safely and effectively.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thickness | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Bulk Box | Box A | Box B | |||||
| 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" | F6F0.13TB F6F0.25TB F6F0.38TB F6F0.50TB F6F0.75TB F6F1.00TB F6F1.25TB F6F1.50TB F6F2.00TB | .024" .025" .025" .025" .025" .038" .038" .038" .038" | 10,000' 3,000' 1,200' 800' 500' 400' 250' 200' 150' | 400' 200' 150' 150' 100' 100' 75' 75' 50' | 100' 100' 75' 75' 50' 50' 25' 25' 25' | TB TB TB TB TB TB TB TB TB | 0.47 0.60 1.20 1.40 1.60 2.00 2.40 2.70 3.60 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .008 - .015 |
| Flammability Rating | VW-1 |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .024 - .038 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 4 - 6.5 |
| Abrasion Resistance | High |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .04 |
| WVR | .06 |
| Smoke D-Max (ASTM E-662) | 275 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 31 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 446°F/230°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | Yes |
| SVHC | None |
