BOSCH® 7-1/4 In. Worm Drive Circular Saw with Spindle Lock and Depth Adjustment - CSW41
Features an enormous gearing ratio in a compact size
0.0 / 5

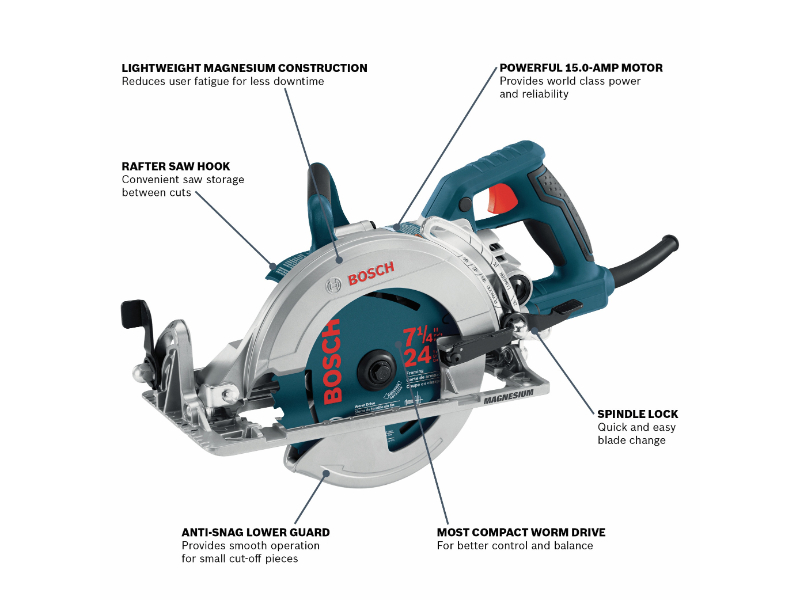

BOSCH® 7-1/4 In. Worm Drive Circular Saw Features
- Light weight magnesium motor housing and foot plate construction – lighter weight saw reduces user fatigue for less down time
- Built-in saw hook – allows convenient saw storage between cuts
- Featherboard multi-function wrench – for blade and brush change, lever adjustments and blade diamond center knockout
- Accurate depth of cut system allows for quick accurate adjustment
- Left side blade design for unmatched clarity of cut line
- Anti-snag lower guard - provides smooth operation for small cut-off pieces
- Soft-grip handles for comfort and control
- 53˚ bevel capacity with positive detent stop at 45˚
- Large adjustment levers for fast, accurate bevel and depth adjustments
- Easy access spindle lock for easy blade changes
- Powerful 15 amp motor provides power for a variety of cutting applications
The worm drive system on the CSW41 features an enormous gearing ratio in a compact size. So if you want tremendous power in a manageable package, this is the saw you need. This model features sturdy magnesium housing and a die-cast magnesium footplate for true strength and a lifetime of reliable use. It also has easily serviceable brushes, large adjustment levers, a spindle lock, and a built In. saw hook for easy storage between tasks. Top it all off with a soft grip handle for comfort, control, and accuracy, and you've got one exceptional piece of equipment.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
TECHNICAL DATA
| Amperage | 15.0 |
| Arbor Size | Diamond |
| Bevel | 53° |
| Blade Diameter (in) | 7.25 |
| Blade Size | 7-1/4" |
| Case Type | No Case Included |
| Depth of Cut | 2-3/8" |
| Dust Blower | No |
| Dust Collection | No |
| Electric Motor Brake | No |
| Height | 9.0" |
| Length | 20.75" |
| Max. Bevel Capacity (°) | 53.0 |
| Max. Depth of Cut at 45 Deg. | 1-15/16" |
| Max. Depth of Cut at 50 Deg. | 1-13/16" |
| Max. Depth of Cut at 90 Deg. | 2-3/8" |
| No Load RPM | 5,300 |
| Rating | 120 V |
| Voltage | 120V |
| Weight | 12.3lb |
| Works With | Rip Fence Worm-Drive Saw Lubricant Oil |
| Includes | (1) CSW41 7-1/4 In. Blade Left Worm Drive Saw, (1) Multi-Function Blade Wrench, (1) Carbide Blade, (1) Built in Saw Hook |
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, and in its original packaging. You’ll also need the receipt or proof of purchase.
To start a return, you can fill out the ORDER RETURN FORM HERE. If your return is accepted, we’ll send you the instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.
Exceptions / non-returnable items
Certain types of items cannot be returned, like custom products (such as special orders or personalized items). Please get in touch if you have questions or concerns about your specific item. Certain Items will Carry restocking fees for us to take back into our stock, This is due to items being made to order or for being an oversized item.
Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
The worm drive system on the CSW41 features an enormous gearing ratio in a compact size. So if you want tremendous power in a manageable package, this is the saw you need. This model features sturdy magnesium housing and a die-cast magnesium footplate for true strength and a lifetime of reliable use. It also has easily serviceable brushes, large adjustment levers, a spindle lock, and a built In. saw hook for easy storage between tasks. Top it all off with a soft grip handle for comfort, control, and accuracy, and you've got one exceptional piece of equipment.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
TECHNICAL DATA
| Amperage | 15.0 |
| Arbor Size | Diamond |
| Bevel | 53° |
| Blade Diameter (in) | 7.25 |
| Blade Size | 7-1/4" |
| Case Type | No Case Included |
| Depth of Cut | 2-3/8" |
| Dust Blower | No |
| Dust Collection | No |
| Electric Motor Brake | No |
| Height | 9.0" |
| Length | 20.75" |
| Max. Bevel Capacity (°) | 53.0 |
| Max. Depth of Cut at 45 Deg. | 1-15/16" |
| Max. Depth of Cut at 50 Deg. | 1-13/16" |
| Max. Depth of Cut at 90 Deg. | 2-3/8" |
| No Load RPM | 5,300 |
| Rating | 120 V |
| Voltage | 120V |
| Weight | 12.3lb |
| Works With | Rip Fence Worm-Drive Saw Lubricant Oil |
| Includes | (1) CSW41 7-1/4 In. Blade Left Worm Drive Saw, (1) Multi-Function Blade Wrench, (1) Carbide Blade, (1) Built in Saw Hook |
