Vestil® Tilt Master Straddles
Can be used with virtually any kind of container or pallet
0.0 / 5
Vestil® Tilt Master Straddles Features
AC, AIR, DC & DC-FC Models
- Overall Dimensions: 57.25" W x 72.81" L x 29.25" H
- Color: Blue
- Will function as a transporter by moving completed products from work station to work station without waiting for a fork truck
- Two rigid and two swivel casters provide smooth and efficient mobility

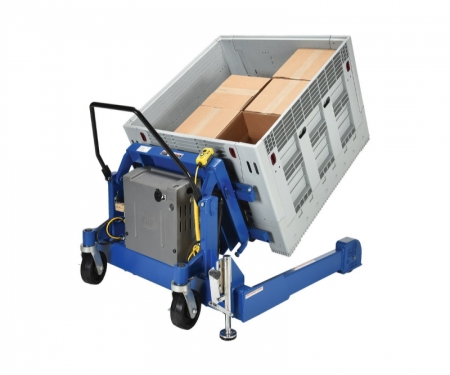

- 90 Degrees tilt angle allows for better ergonomic access
- Ergonomic push handle folds down when not needed for better access
PTDS Models
- Overall Dimensions: 57.25" W x 72.81" L x 54" H
- Color: Blue
- An ergonomically friendly design diminishes bending and twisting motion
- Constructed of steel for strength and durability
- The unit rolls on phenolic steering wheels
- Ergonomic handle for quick and easy maneuverability

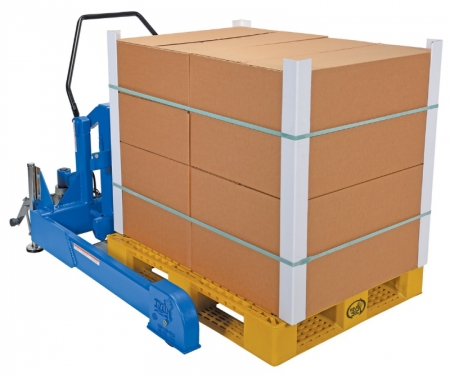

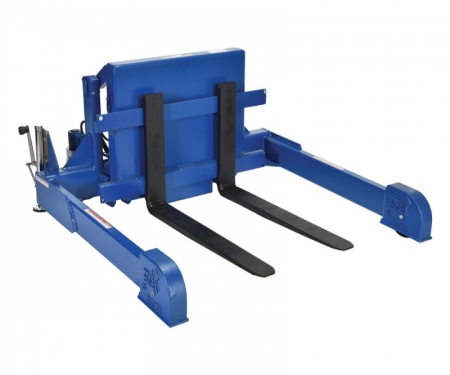

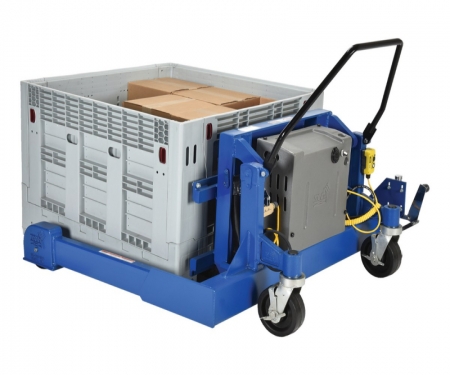

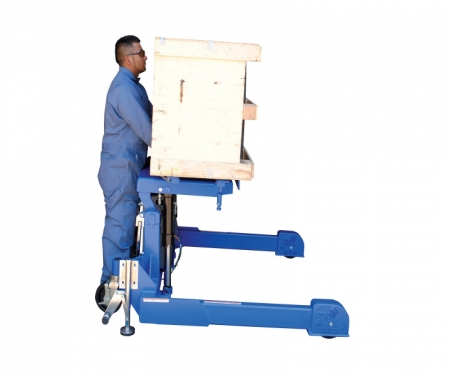

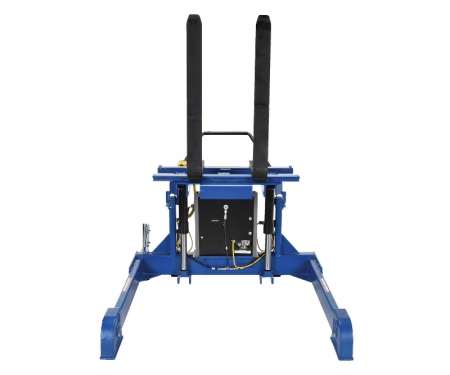

Lift and position filled tote boxes or baskets without the need of a fork truck or lift table using the newly designed heavy-duty Tilt Master. These 90 degree tilters will function as a transporter by moving completed products from work station to work station without waiting for a fork truck.
An ergonomic handle comes standard for quick and easy maneuverability. Unit has a thin profile to allow the user to get as close to the load as possible. Units roll easily on 8" x 3" phenolic steering wheels. Floor lock standard on non PTDS units. The Tilt Master Straddle units, series TMS, can be used with virtually any kind of container or pallet. Units come standard with a hand pendant control on an 8 foot coil cord.

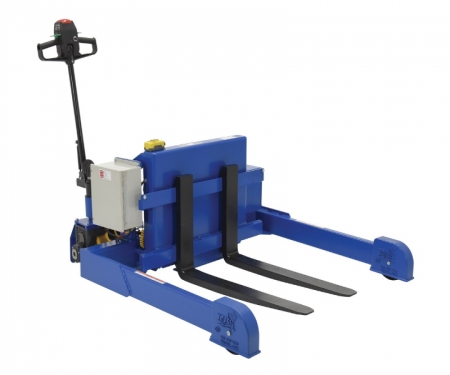

Reduce worker fatigue and injury with the Portable Traction Drive Power Option. An alternative to costly fork trucks. This state of the art option allows a single operator to safely and ergonomically transport products. maximum speed is 2.5 m.p.h.
Power options to choose from:

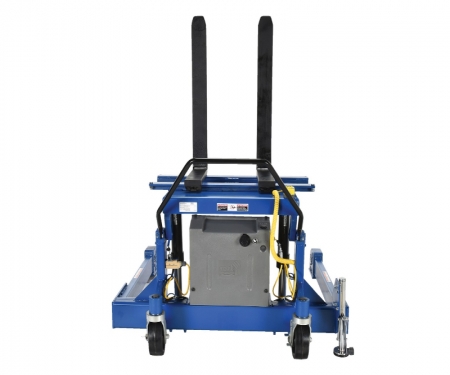

- Suffix -AC is 115V, 1 phase power with a push-button hand control.
- Suffix -DC includes one (1) 12V battery DC series, push-button hand control, on-board charger and battery charge indicator gauge.

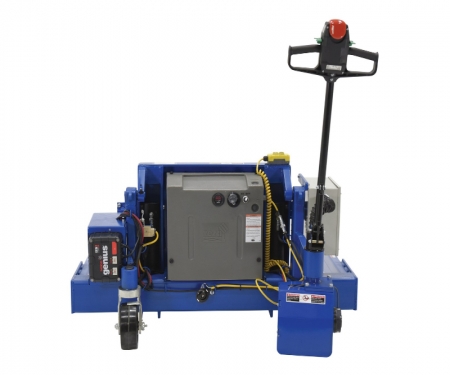

- DC-PTDS includes two (2) 12V batteries, Combination throttle / direction butterfly style controller, an adjustable steering yoke, and an auto reverse emergency 'belly switch'
- Suffix -DC-FC includes one (1) 12V battery, foot control, on-board charger and battery charge indicator gauge.
- Suffix -AIR features reciprocating air/oil power with a heel/toe foot treadle control. (Filter-Regulator-Lubricator required)
Applications

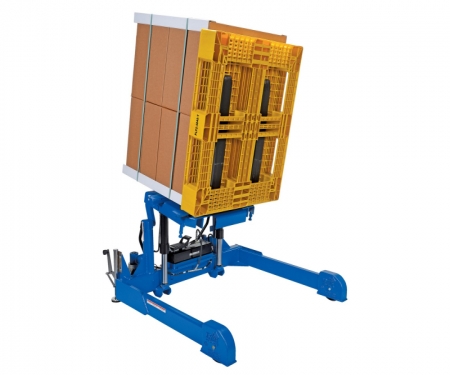

- Tilts products from ground level to a comfortable operator working height
- Doubles as a pallet truck and a portable tilt table
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
TECHNICAL DATA – APPROVAL DRAWINGS
Click on the Part Number in the following table to see details of some the products
| PART NUMBERS | |
|
| |
| AC, AIR, DC & DC-FC Models | |
| Operator Reach (in.): 13-1/2 | Lowered Height (in.): 3 |
| Rotated Height (in.): 37 | Wheel Diameter (in.): 8 |
| Wheel Type: Phenolic | Folding Handle Length (in.): 20 |
| Fork Adjustment Minimum I.D (in.): 1/2 | Fork Adjustment Maximum I.D. (in.): 28-1/2 |
| Fork Width (in.): 4 | Fork Length (in.): 35 |
| Maximum Tilt Degree: 90 | Wheel Width (in.): 3 |
| Load Center (in.): 18 |
|
| PTDS Models | ||
| Operator Reach (in.): 13-1/2 | Fork Width (in.): 4 | |
| Rotated Height (in.): 37 | Lowered Height (in.): 3 | |
| Fork Adjustment Minimum I.D (in.): 1/2 | Fork Adjustment Maximum I.D. (in.): 28-1/2 | |
| Fork Length (in.): 35 | ||
