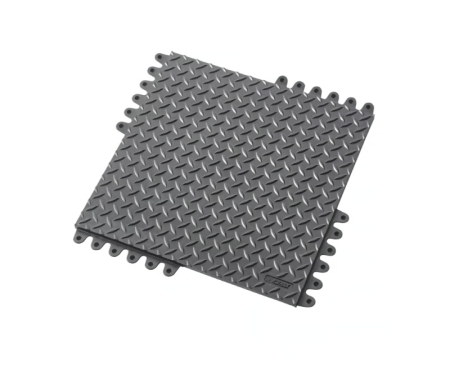

Notrax De-Flex® Anti-Static Interlocking Rubber Floor Mats 573 Series
Solid Top Diamond Plate Design | Dry Areas
0.0 / 5
De-Flex® Anti-Static Interlocking Rubber Floor Mats Features
- Available Colors – Black
- Available Size – 18’’ x 18’’ Inch
- Dissipative resilient rubber compound with bulleted domes underneath for to bend and flex for fatigue relief

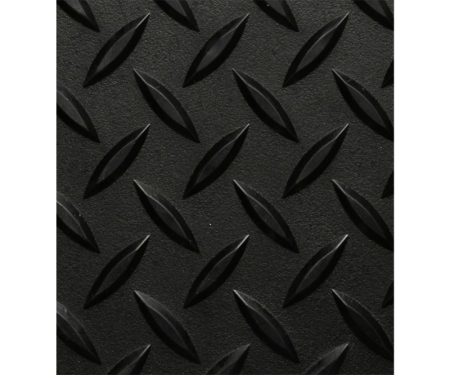

- Solid top diamond plate design provides traction

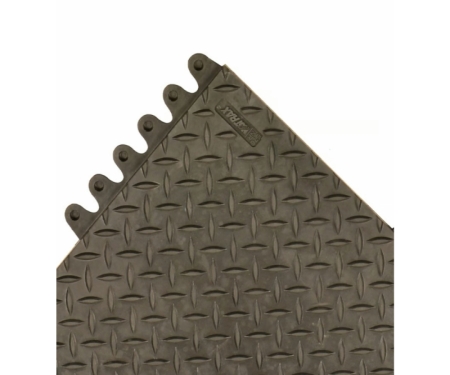

- Heavy duty industrial floor tiles that are easy to snap together with no male/female ends
- Meets or exceeds requirements of ANSI/ESD S20.20 and per ANSI/ESD STM7.1
- Resistance Point to Ground (Rtg): 1x 10 ⁶ to 1x 10 ⁹ ohms
- Resistance Point to Point (Rtt): 1x 10 ⁶ to 1x10 ⁹ ohms

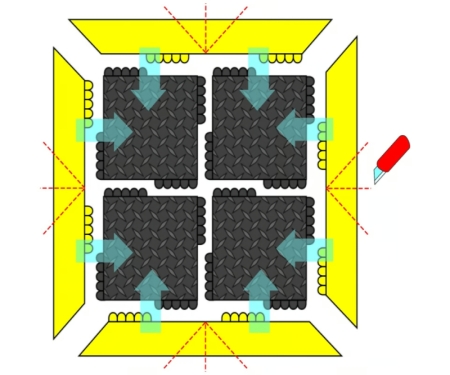

- 571 De-Flex® Ramps prevent tripping and allow for cart access
- Optional 051 grounding cord available, not required
Notrax De-Flex® ESD is an Electro Static Discharge (ESD) protective mat that is formulated to drain static electricity from workers to safeguard against static shocks and protect equipment. De-Flex® ESD is extremely comfortable heavy duty anti-fatigue matting system with popular diamond plate traction surface that can be easily assembled for coverage of large areas or individual workstation mats. The modular rubber tiles are designed with a universal double-locking system on all sides to ensure an extra strong yet seamless connection for fast installation. The platform insulates the worker from the hard ground while the bulleted domes underneath allow the mat to bend and flex with every movement. Unique extended ramp prevents tripping and allows cart access with smart beveling solutions for inside and outside corners.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Model No | 573 |
|---|---|
| Available Colors | Black |
| Overall Thickness | 3/4 |
| Standard sizes | 18" x 18" Inch |
| Group | Ergonomic, Anti-fatigue & Safety Matting |
| Environment | Dry Areas |
| Special Characteristics | Available yellow borders along sides comply with OSHA code 1910-144|Free of DOP, free of DMF, free of ozone depleting substances, free of silicone and free of heavy metals|Optional grounding cord |
| Recommended Use | For placement in ESD assembly lines, picking, packing and logistics warehouses, individual work stations. |
| Special Remarks | Easy to make custom configurations on-site by utilizing the #571 De-Flex® Ramps |
| Surface | Industrial Diamond Plate |
| Edges | Attachable beveled edges are available |
| Usage Intensity | Heavy duty |
| Custom Description | Available attachable #571 De-Flex® Ramps |
| Installation | Interlocking mats allow on-site customization. Square snap-together units can be assembled effortlessly. |
| Material Specifications | Static dissipative natural rubber |
| Process | Compression Molding |
| Weight Lbs/sqft | 3.24 |
| Fire Rating US | Pass |
| REACH Compliant | Reach compliant (Registration, Evaluation, Authorization and Restriction of Chemicals). |
| Anti-Fatigue Rating | Best |
| Slip Resistance Rating | Best |
| Wear Resistance Rating | Best |
