Duraflex Heavy Duty Braided Sleeving

Industrial Hose & Cable Protection for Harsh Environments

Duraflex Heavy Duty Sleeving Features

  • Cuts Easily With Scissors
  • 09" Wall Thickness Resists Snagging
  • Economical General Purpose Protection
  • Protects Exposed Applications from UV Damage
  • Extremely Abrasion & Cut Resistant
  • Operating Temps: -49°F to 248°F (-45°C to 120°C)
  • Asbestos Free - RoHS Compliant
  • Resists Common Chemicals & Solvents
  • Tightly Woven for Full Coverage & Protection
  • No Damage After 3,500 Abrasion Test Cycles
  • Deflects High Pressure Hose Ruptures
  • Melt Temp: 410°F/210°C
Click for More Details or Description

Require Splice Free? Please Call 1-877-284-7760

Inside Diameters Are Measured as Round Not Flat

Product Details

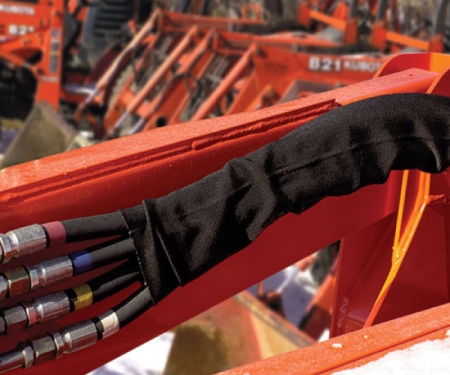

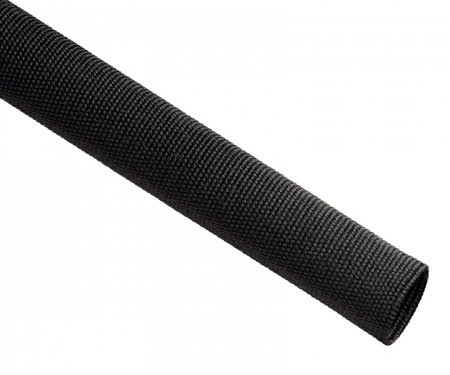

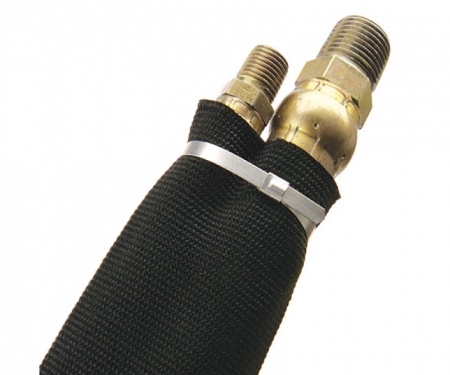

The tightly woven Nylon® makes Dura-Flex braided sleeving the perfect solution for hose & cable protection. The .09 inch wall thickness will protect cables, hoses and ropes from weather, sunlight and abrasion damage. When installed over uncoated cable or chains, Dura Flex heavy duty braided sleeving will prevent scraping, chafing and contact damage to painted or other fragile surfaces. Dura flex heavy duty braided sleeving is resistant to chemicals, UV damage and rot, and is suitable for continuous outdoor use under all weather conditions. The flexible sleeving cuts with a scissor and the tight construction slides easily over any application. Dura flex heavy duty sleeving contains no asbestos and is RoHS compliant.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Nominal
Size
Product
Part #
Wall
Thick.
Standard Spool
Put-Ups
Colors Lbs/
100'
Maxi Coil Bulk Spool Shop Spool
0.71"
0.83"
0.92"
1.00"
1.13"
1.25"
1.34"
1.59"
1.75"
2.07"
2.38"
2.54"
2.86"
3.34"
3.66"
DFN0.71BK
DFN0.83BK
DFN0.92BK
DFN1.00BK
DFN1.13BK
DFN1.25BK
DFN1.34BK
DFN1.59BK
DFN1.75BK
DFN2.07BK
DFN2.38BK
DFN2.54BK
DFN2.86BK
DFN3.34BK
DFN3.66BK
.045"
.045"
.045"
.045"
.045"
.045"
.045"
.045"
.045"
.045"
.045"
.045"
.045"
.045"
.045"
300'
300'
300'
300'
300'
300'
300'
300'
300'
300'
300'
300'
300'
300'
300'
100'
100'
100'
100'
100'
100'
100'
100'
100'
100'
100'
100'
100'
50'
50'
50'
50'
50'
50'
50'
50'
50'
50'
50'
50'
50'
50'
50'
25'
25'
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
2.57
2.58
3.22
3.66
4.18
4.49
4.84
5.37
6.13
7.26
8.28
8.98
9.89
11.59
12.25



Physical Properties
Monofilament Thickness (ASTM D-204)
Flammability Rating
Recommended Cutting Scissor
Colors 1
Wall Thickness .045
Tensile Strength - Yarn (ASTM D-2265) lbs.
Abrasion Resistance High
Specific Gravity 1.14
Moisture Absorption % (ASTM D-570) 2.7



Hard Vacuum Data (ASTM E-595 at 10-5 torr)
TML 1.10
CVCM .01
WVR .69
Smoke D-Max (ASTM E-662)
Outgassing High
Oxygen Index (ASTM D-2863) 22



Chemical Resistance

1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected
Aromatic Solvents 1
Alipahtic Solvents 1
Chlorinated Solvents 1
Weak Bases 1
Strong Bases 2
Salt Water (O-S-1926) 1
Hydraulic Fluid (MIL-H-5606) 1
Lubricating Oil (MIL-L-7808) 1
De-Icing Fluid (MIL-A-8243) 1
Strong Acids 5
Strong Oxidants 5
Esters/Ketones 1
UV Light 2
Petroleum 3
Fungus (ASTM G-21) 2
Salts 1



Operating Temperatures
Minimum Continuous -49°F/-45°C
Maximum Continuous (MIL-I-23053) 248°F/120°C
Melt (ASTM D-2117) 410°F/210°C



Other Information
Halogen Free Yes
RoHS Yes
UL/CSA No
