BOSCH® SDS-max® 120V 1-58 Inch Combination Hammer - 11264EVS

Features a powerful 13.0 Amp motor and has a dual-mode selector

0.0 / 5

(0)

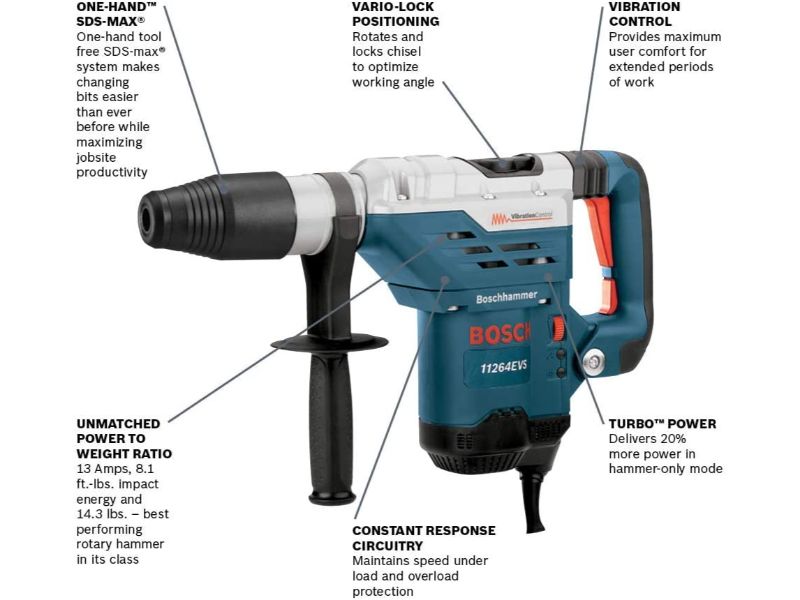

BOSCH® SDS-max® 120V 1-58 Inch Combination Hammer Features

  • Powerful 13.0 Amp motor – drives 6.5 Ft.-Lbs. of impact energy for professional results
  • Vibration Control – for all day jobs, tool allows for maximum user comfort
  • Constant Response circuitry — provides soft-start and maintains constant speed under load
  • Turbo Power — delivers 20 percent more power in hammer-only mode
  • Electro-pneumatic impact system maximizes impact force and minimizes vibration
  • SDS-max® bit system — tool-free bit changes with automatic bit-locking and maximum impact energy transfer rate
  • Dual-mode selector — Two modes of operation, rotary hammer and hammer only mode
  • Variable-speed dial — for accurate bit starting and controlled chipping applications
  • Vario-Lock positioning — rotates and locks chisel into 12 different positions to optimize working angle
  • Integral clutch — helps minimize torque reaction
See More Technical Specifications


The Bosch 11264EVS SDS-max® 1-5/8- In. Combination Hammer features a powerful 13.0 Amp motor and has a dual-mode selector for combination versatility - rotary hammer or hammer-only mode. Providing 6.5 Ft.-Lbs. of impact energy, the tool weighs only 15.2 Lbs., for a top performance-to-weight ratio. The hammer has integral clutch that helps to minimize torque reaction. Concrete contractors will appreciate the production in drilling and chiseling applications. The hammer's 12-position Vario-Lock helps to optimize chiseling angles. Bosch's Vibration Control in the hammer mechanism and grip area provide improved user comfort. And with Constant Response circuitry, users benefit from smooth starts and constant load under pressure.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760



TECHNICAL DATA

Amperage

13.0

Chuck Design

Keyless

Chuck Size

SDS-Max

Height

10.5"

Impact Energy/EPTA (ft. lbs.)

6.5 Ft.-Lbs. EPTA

Length

19.25"

Material

Metal, Plastic

Max. Hole Diameter in Concrete

1-5/8"

Max. Hole Diameter in Concrete-Core Bit

4-1/8"

No Load BPM

1,700-2,900

No Load RPM

170-340

Rating

120V

Voltage

120V

Weight

15.2lb

Width

4.0"

Works With

Dust Extraction/Collection Hoods
HDC200, HDC250, HDC300


SDS-max® Hammer Adapter for SDS-plus® Accessories
HA1030


SDS-max® Hammer Adapter for Spline Accessories
HA1031


SDS-max® Hammer Adapter for 1/2"-20 Thread Accessories
HA1032

Includes

(1) SDS-max® 1-5/8 In. Combination Hammer, (1) Auxiliary Handle, (1) Grease Tube, (1) Carrying Case
