Aluminum Cable & Hose Cross-Over

Heavy Duty Protector With Large Channel Dimensions - 24" or 48" Widths

Aluminum Cable & Hose Cross-Over Features

  • Maximum Weight Capacity: 2,000 Pounds
  • 24” or 48” Widths
  • Numerous Channel Size Options
  • Made With Heavy Duty Aluminium
  • 3/8” Thick Aluminum Plate
  • Stays Securely in Place During Use


The Fabricated Aluminum Hose and Cable Cross-over Bridge protects hoses and cables from fork trucks and other forms of traffic. Constructed of lightweight but highly durable aluminum tread plate. The opening width is available in spans of 4" to 16". Made with 3/8” thick steel plate these ramps are available in 24" and 48" widths with a maximum weight capacity of 2,000 lbs

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Model Color Overall Size
(WxL)
Usable Span
(WxH)
Capacity
(lbs)
Wt.
(lbs)
VFHCR-24-36-4 Aluminum 24"x36" 4"x3" 2,000 36
VFHCR-24-36-4-4H Aluminum 24"x36" 4"x4" 2,000 50
VFHCR-24-40-8 Aluminum 24"x40" 8"x3" 2,000 40
VFHCR-24-40-8-4H Aluminum 24"x40" 8"x4" 2,000 56
VFHCR-24-44-12 Aluminum 24"x44" 12"x3" 2,000 39
VFHCR-24-44-12-4H Aluminum 24"x44" 12"x4" 2,000 83
VFHCR-24-48-16 Aluminum 24"x48" 16"x3" 2,000 44
VFHCR-24-48-16-4H Aluminum 24"x48" 16"x4" 2,000 90
VFHCR-48-36-4 Aluminum 48"x36" 4"x3" 2,000 59
VFHCR-48-36-4-4H Aluminum 48"x36" 4"x4" 2,000 121
VFHCR-48-40-8 Aluminum 48"x40" 8"x3" 2,000 97
VFHCR-48-40-8-4H Aluminum 48"x40" 8"x4" 2,000 123

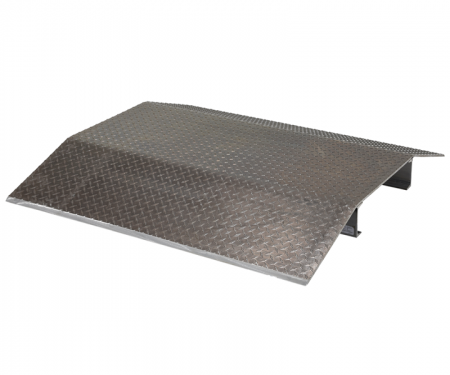

VFHCR-48-44-12 Aluminum 48"x44" 12"x3" 2,000 111
VFHCR-48-44-12-4H Aluminum 48"x44" 12"x4" 2,000 127

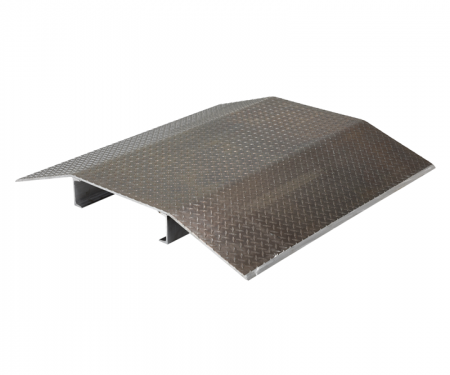

VFHCR-48-48-16 Aluminum 48"x48" 16"x3" 2,000 115
VFHCR-48-48-16-4H Aluminum 48"x48" 16"x4" 2,000 130

Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.


Request a Quote

Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.

Quote Items
Search
Item Description
Quantity
SKU:

Contact Information

Product Details

The Fabricated Aluminum Hose and Cable Cross-over Bridge protects hoses and cables from fork trucks and other forms of traffic. Constructed of lightweight but highly durable aluminum tread plate. The opening width is available in spans of 4" to 16". Made with 3/8” thick steel plate these ramps are available in 24" and 48" widths with a maximum weight capacity of 2,000 lbs
