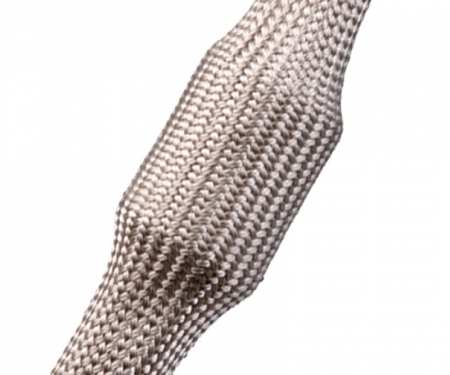

Insultherm Ultraflexx PRO Sleeving

Heavy Wall Braided Fiberglass Sleeving - Max Temp: 1,200°F

Ultraflexx PRO Fiberglass Sleeving Features

  • Operating Temps: -94°F to 1,202°F (-70°C to 650°C)
  • Heavy Duty 1/32" Wall Thickness
  • Cuts Easily With Scissors
  • Will Not Burn or Support Combustion
  • Extremely Abrasion and Cut Resistant
  • Resists Common Chemicals & Solvents
  • Increased Expandability for Easy Installation
  • Melt Temp: 2,048°F/1,120°C
Click for More Details or Description

Inside Diameters Are Measured as Round Not Flat

Product Details

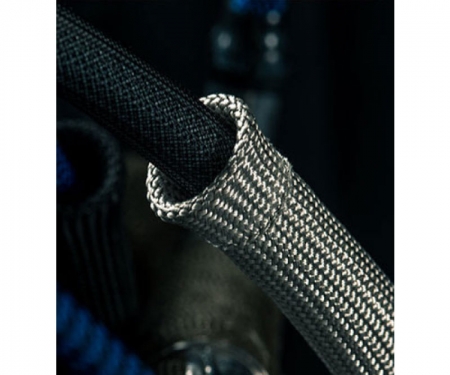

The heavy wall construction, large available diameters and high expandability of Ultraflexx PRO sleeving provides a high level of protection and ease of installation when used to insulate pipes and hoses subject to abrasion and vibration.

Ultraflex Pro sleeving cuts easily with scissors, and special heat treated construction minimizes fraying and dusting during assembly.

Increased wall thickness adds value to insulation.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Nominal
Size
Product
Part #
Wall
Thick.
Expansion Range Standard Spool Put-Ups Lbs/
100'
Min. Max. Bulk Shop
1/2"
3/4"
1"
1 1/4"
1 1/2"
FHH0.50NT
FHH0.75NT
FHH1.00NT
FHH1.25NT
FHH1.50NT
.025"
.040"
.032"
.035"
.035"
3/8"
5/8"
7/8"
1"
1 1/8"
5/8"
1 5/32"
1 3/8"
1 3/4"
2 1/8"
100'
100'
50'
50'
50'
50'
50'
25'
25'
25'
3.5
8.0
7.0
10.5
10.0



Physical Properties
Monofilament Thickness (ASTM D-204) NA
Flammability Rating VW-1
Recommended Cutting Scissor
Colors 1
Wall Thickness .025 - .035
Tensile Strength - Yarn (ASTM D-2265) lbs. NA
Abrasion Resistance Medium
Specific Gravity 1.0 - 1.8
Moisture Absorption % (ASTM D-570) .01



Hard Vacuum Data (ASTM E-595 at 10-5 torr)
TML .01
CVCM .00
WVR .00
Smoke D-Max (ASTM E-662) NA
Outgassing Low



Chemical Resistance

1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected
Aromatic Solvents 1
Alipahtic Solvents 1
Chlorinated Solvents 1
Weak Bases 1
Strong Bases 1
Salt Water (O-S-1926) 1
Hydraulic Fluid (MIL-H-5606) 1
Lubricating Oil (MIL-L-7808) 1
De-Icing Fluid (MIL-A-8243) 1
Strong Acids 2
Strong Oxidants 2
Esters/Ketones 1
UV Light 2
Petroleum 1
Fungus (ASTM G-21) 1
Salts 1



Operating Temperatures
Minimum Continuous -94°F/-70°C
Maximum Continuous (MIL-I-23053) 1,202°F/650°C
Melt (ASTM D-2117) 2,048°F/1,120°C



Other Information
Halogen Free Yes
RoHS Yes
UL/CSA Yes
SVHC None
