Techflex® Insultherm® Ultra Flex® Braided Cable Sleeving

Highly Flexible Braided Fiberglass Sleeving - Max Temp: 1,200°F

0.0 / 5

(0)

Insultherm Ultraflex Sleeving Features

  • Operating Temps: -94°F to 1,202°F (-70°C to 650°C)
  • Extremely Abrasion and Cut Resistant
  • Resists Common Chemicals & Solvents
  • Melt Temp: 2,048°F/1,120°C
  • Cuts Easily With Scissors
  • Will Not Burn or Support Combustion
See More Technical Specifications

Inside Diameters Are Measured as Round Not Flat

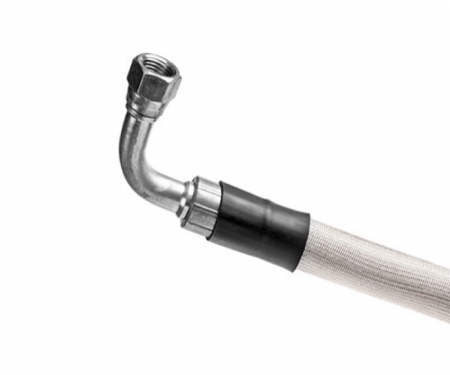

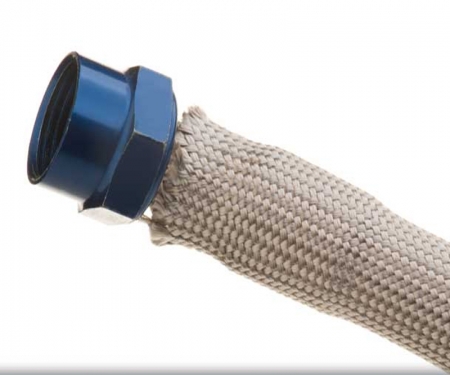

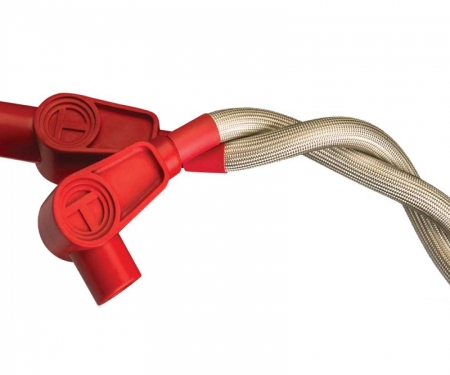

Ultraflex fiberglass sleeving is ideal for the protection of wires and hoses exposed to the heat generated from high performance engine and exhaust components. The heat treated sleeving cuts with scissors and is compatible with most bonding and saturation systems. The 1/64" wall thickness provides economy, protection and light weight in any application. Ultraflex expands slightly, allowing it to slide easily over wires and follow curves and contours without bonding.When greater protection levels are required. Our Ultraflex Pro Fiberglass sleeving is an ideal heavy duty alternative.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Nominal
Size
Diameter Product
Part #
Wall
Thick
Expansion Range Standard Spool Put-Ups
Min. Max. Bulk Shop

1/4"
5/16"
3/8"
7/16"
1/2"
5/8"
3/4"
1"

0.250"
0.313"
0.375"
0.438"
0.500"
0.625"
0.750"
1.000"

FHN0.25NT
FHN0.31NT
FHN0.38NT
FHN0.44NT
FHN0.50NT
FHN0.63NT
FHN0.75NT
FHN1.00NT

.010"
.016"
.012"
.018"
.013"
.024"
.024"
.024"

0.250"
0.313"
0.375"
0.438"
0.500"
0.625"
0.750"
1.000"

0.313"
0.333"
0.500"
0.462"
0.625"
0.750"
0.875"
1.250"

100'
100'
100'
100'
100'
100'
100'
100'

50'
50'
50'
50'
50'
50'
50'
50'

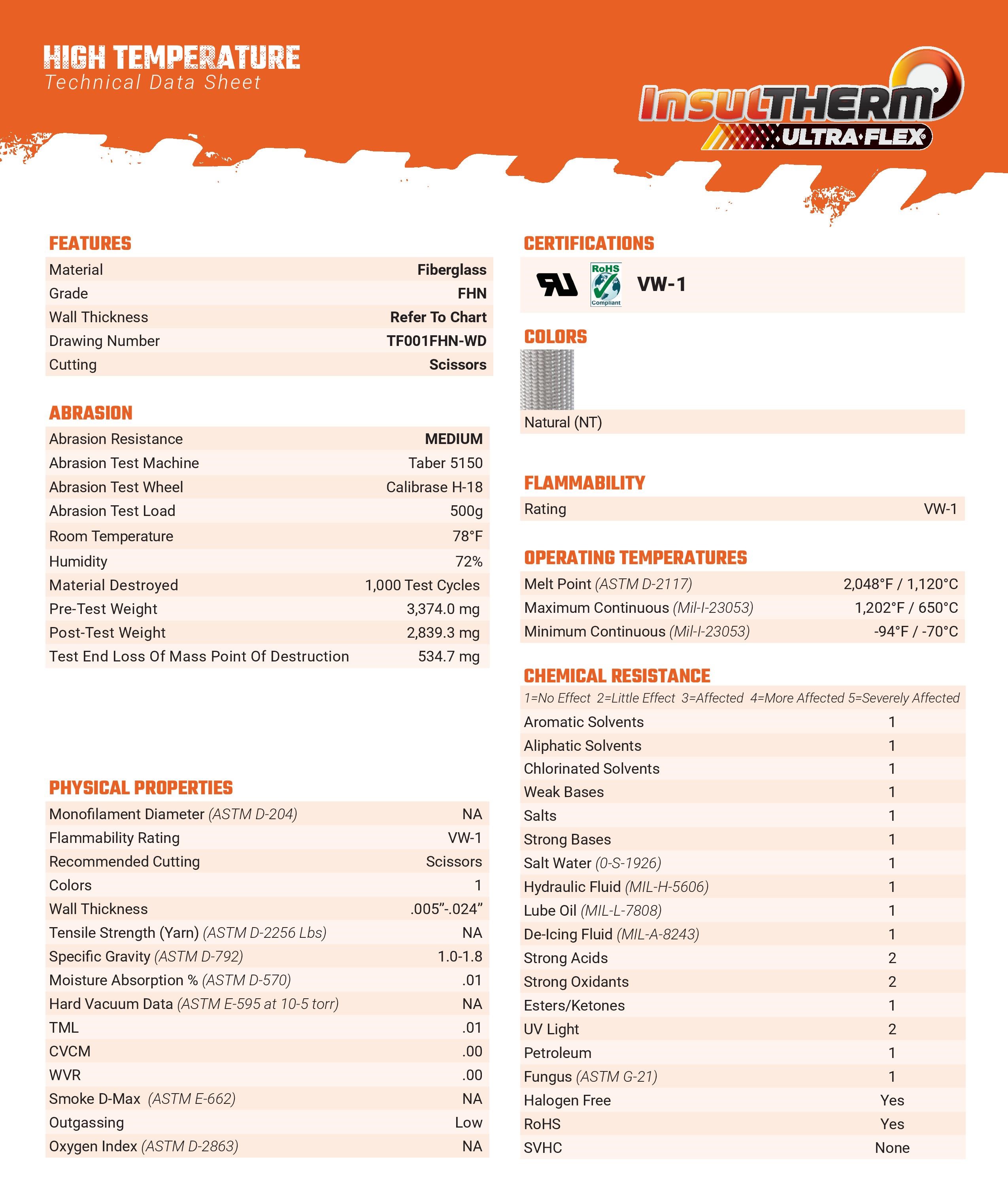

Physical Properties
Monofilament Thickness (ASTM D-204) NA
Flammability Rating VW-1
Recommended Cutting Scissor
Colors 1
Wall Thickness .010 - .024
Tensile Strength - Yarn (ASTM D-2265) lbs. NA
Abrasion Resistance Medium
Specific Gravity 1.0 - 1.8
Moisture Absorption % (ASTM D-570) .01



Hard Vacuum Data (ASTM E-595 at 10-5 torr)
TML .01
CVCM .00
WVR .00
Smoke D-Max (ASTM E-662) NA
Outgassing Low



Chemical Resistance

1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected
Aromatic Solvents 1
Alipahtic Solvents 1
Chlorinated Solvents 1
Weak Bases 1
Strong Bases 1
Salt Water (O-S-1926) 1
Hydraulic Fluid (MIL-H-5606) 1
Lubricating Oil (MIL-L-7808) 1
De-Icing Fluid (MIL-A-8243) 1
Strong Acids 2
Strong Oxidants 2
Esters/Ketones 2
UV Light 2
Petroleum 1
Fungus (ASTM G-21) 1
Salts 1



Operating Temperatures
Minimum Continuous -94°F/-70°C
Maximum Continuous (MIL-I-23053) 1,202°F/650°C
Melt (ASTM D-2117) 2,048°F/1,120°C



Other Information
Halogen Free Yes
RoHS Yes
UL/CSA Yes
SVHC None
