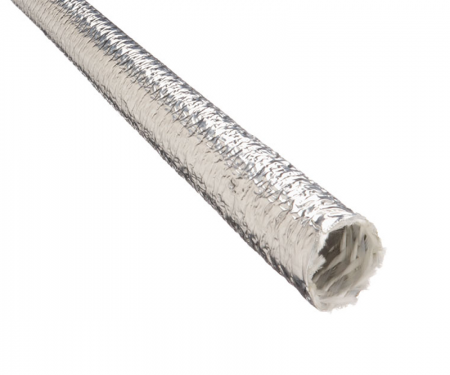

Techflex® ThermaShield® Heat Reflective Convoluted Tubing

Semi-Rigid Laminated Flexible Fiberglass Tube - 4' Lengths

0.0 / 5

(0)

Thermashield Convoluted Tubing Features

  • Length: 4’ Sticks
  • Operating Temps: -76°F to 392°F (-60°C to 200°C)
  • Reflects Radiant Heat & Insulates Hoses & Pipes
  • Resists Common Chemicals & Solvents
  • Cuts Easily With Scissors or Shears
  • Halogen And Asbestos Free
  • Melt Temp: 2,048°F/1,120°C
  • Note: Measurements Are Listed as Inside Diameter.
See More Technical Specifications


It is ideally suited for applications where wires are exposed to radiant heat. It will even help keep high performance engines running more efficiently. Thermashield is made by laminating an aluminized metallic heat shield to a layer of strong, tightly braided fiberglass insulation.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Product Sizes

Size Part Number Wall Thickness Max Bulk Spool Shop Spool Box A Box B Lbs / 10 Pcs.
1/2" TCN0.50SV .045" 250 70 40 25 1.20
5/8" TCN0.63SV .045" 150 60 35 20 1.50
3/4" TCN0.75SV .045" 125 50 30 15 1.80
1" TCN1.00SV .045" 88 30 20 9 2.10
1 1/4" TCN1.25SV .045" 63 20 10 6 2.30
