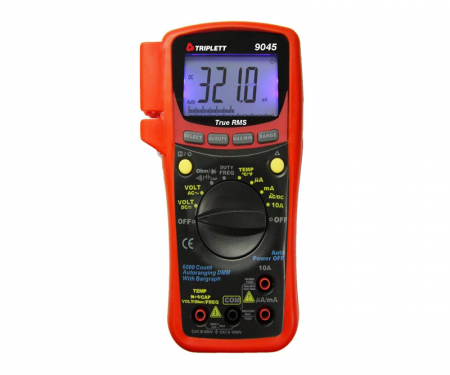

RMS Digital Multimeter Triplett Model 9045
44 Measurement Ranges & Voltage Range up to 1000V
0.0 / 5
RMS Digital Multimeter Features
- Auto/Manual Ranging
- DC Voltage Ranges to 1000V
- AC Voltage Ranges to 750V
- AC/DC Current Ranges to 10A
- Resistance Ranges for 600Ω to 60MΩ
- Temperature Test (°F & °C Selectable)
- Capacitance Ranges from 40nF to 4000µF
- Frequency Ranges from 9.999Hz to 9.999MHz
- Duty Cycle
- Diode Test
- Auto Polarity
- Relative Mode
- Data Hold
- Range Hold
- Min/Max
- Flexible Auto Power Off
- Splash Proof/Dust Proof Case
- Safety designed to comply with IEC 1010-1
- CAT III 600 Volt/CAT II 1000 Volt Rated
- Overload Protected
*Includes: Safety Test Leads with Screw-On Alligator Clips, Thermocouple Probe & 9 Volt Battery
The Triplett Model 9045 is a 3-3/4 digit (6000 count) high performance digital multimeter with True RMS readings. It offers a large variety of measurement features including AC/DC Voltage, AC/DC Current, Resistance, Continuity, Diode Test, and Capacitance. The rubberized overmolded housing provides impact and drop resistance in a sleek ergonomic design, and the user-friendly Auto Power Off feature helps maximizes battery life. With an industry standard CAT III design it provides superior resistance to damage from transient overvoltages in any demanding industrial settings. The Model 9045 is suited for a variety of industrial and residential applications such as security, home theater, electrical, HVAC installations and more.
Encased with an over-molded, shock-absorbing case, the feature-packed True RMS Digital Multimeter comes with a 6000 count display, 61 segment bar graph and backlit LCD for displaying information. This Digital Multimeter by Triplett can read temperature, capacitance and frequency ranges as well as perform diode and continuity tests
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
- DC Voltage up to 1000V
- AC Voltage up to 750V
- DC Current up to 10A
- AC Current up to 10A
- Resistance (Ohms) 600 to 60M
- Diode Test
- Capacitance 40nF to 4000uF
- Continuity Test
- Frequency Range 9.999Hz to 9.999MHz
- emperature Range -58F to 752F
- Overload protection
- CAT I, & II to 1000VDC, 700VAC. CAT III to 600V AC/DC
- Ohms ranges: 600V AC/DC
- Diode Test: 600V AC/DC
- Continuity: 600V AC/DC
- Fuses: uA, Ma Jack -800mA/600V fuses. 10A Jack – 10A/600V Fuse
- Agency Approval CE
- Dimensions: 3.7 x 7.0 x 1.5 in
- Weight: 0.88 lbs.
- Battery life: 200 hours (9 volt)
