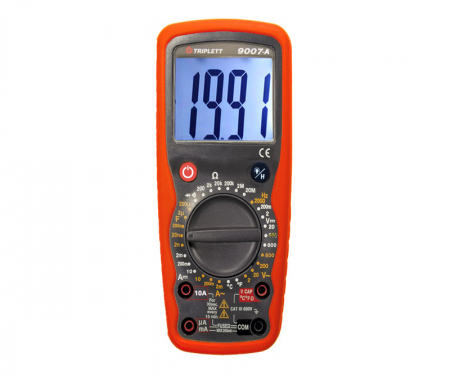

Triplett® Industrial Digital Multimeter - 9007

Variety of Measurement Ranges & Large Backlit LCD Display.

Triplett® Industrial Digital Multimeter - 9007 Features

Encased in a durable over-molded shell, Triplett's new 9007 Model Digital Multimeter comes with everything you need to make your capacitance measurement a simple affair. Your capacitance measurement readouts are clear and precise with an enormous 1.4" high contrast LCD display and a white LCD backlight to illuminate the screen in bad lighting.

Other features include:

  • 31 measurement ranges
  • Enormous 1.4" high contrast LCD display
  • White LCD backlight to allow viewing in poorly lit areas
  • 3 1/2 digit resolution (2000 count)
  • High-performance construction
  • CAT IV Rated
  • AC/DC Voltage & Current Ranges
  • Capacitance Test
  • Diode Test
  • Continuity Beeper
  • Auto Power-Off
  • Fused uA, mA, and Amp ranges
  • Overload protection
  • Double Insulated
  • CE Mark (EMC / LVD)
  • CAT I, II, III, IV compliance
  • Protective shock-absorbing over-molded shell
  • Built-in stand and test lead holders
Click for More Details or Description

Product Details

The Triplett Model 9007-A is an updated version of our popular Model 9007 that adds a temperature range, frequency range and DATA Hold function. The Model 9007-A is a 3-1/2 digit (2000 count) high performance digital multimeter with a large backlit LCD display. It offers a variety of measurement ranges including AC/DC Voltage, Current, Resistance, Continuity, Diode Test, and Capacitance. The rubberized overmolded housing provides impact and drop resistance in a sleek ergonomic design, and the user-friendly Auto Power Off feature helps maximizes battery life. With an industry leading CAT IV design it provides superior resistance to damage from transient overvoltages in any demanding industrial settings. The Model 9007-A is well suited for a variety of industrial and residential applications such as security, home theater, electrical, HVAC installations and more.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

  • DC Voltage up to 600V
  • AC Voltage up to 600V
  • DC Current up to 10A
  • AC Current up to 10A
  • Resistance (Ohms) 200 to 20M
  • Frequency 1Hz to 2000Hz
  • Temperature range -4F to 1400F
  • Diode Test
  • Capacitance 2nF to 200uF
  • Continuity Test
  • Overload protection
    • CAT I, II & III to 1000VDC, 700VAC. CAT IV to 600V AC/DC
    • Ohms ranges: 600V AC/DC
    • Continuity: 600V AC/DC
    • Fuses: uA, Ma Jack – 200mA/250V fuses. 10A Jack – 10A/600V Fuse
    • Agency Approval CE
  • Dimensions: 3.2 x 7.0 x 2.2 in
  • Weight: 0.88 lbs.
  • Battery life: 200 hours (9 volt)
