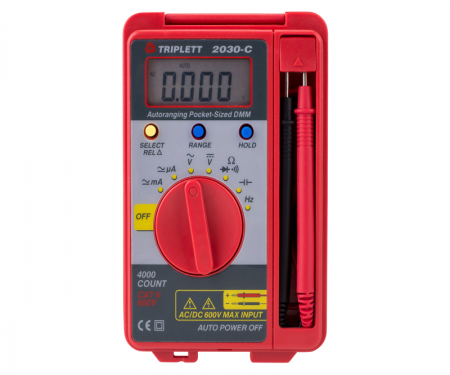

Triplett® Pocket Digital Multimeter - 2030
37 Measurement Ranges - Pocket Sized Digital Multimeter
0.0 / 5
Triplett® Pocket Digital Multimeter - 2030
- Performs fast and precise electrical readings
- Ideal for testing batteries, solar cells, wall plugs, and power outlets
- Capable of measuring the DC voltage of batteries
- Offers 37 measurement ranges, including AC/DC voltage, AC/DC current, resistance, capacitance, frequency and more
- The 4000-count display features a 3.75-digit resolution
- Auto polarity function
- Built-in stand lets you set up the digital multimeter to take measurements with the attached test leads
- ABS case offers shock absorption to protect the unit against impacts from drops
- Powered by 2 LR44 batteries with a low-battery indicator that keeps you apprised of the power status
Applications
- Security
- Home Theater
- Electrical
- HVAC/R Installations
The Triplett Model 2030-C is a 3-3/4 digit (4000 count) pocket sized digital multimeter with a built-in hard case. It offers a variety of measurement features including AC/DC Voltage, AC/DC Current, Resistance, Continuity, Diode Test, Frequency, and Capacitance. The ABS plastic housing provides impact and drop resistance in an ergonomic design, and the user-friendly Auto Power Off feature helps maximizes battery life. With an industry standard CAT II design that provides resistance to damage from transient overvoltages in any settings. The Model 2030-C is suited for a variety of commercial and residential applications such as security, home theater, electrical, HVAC installations and more.
Take fast and accurate measurements with this pocket-sized auto ranging digital multimeter. The digital multimeter is capable of measuring in 37 different ranges, while the attached test leads help simplify operation. The unit is great for testing batteries, solar cells, wall plugs and more, so you can ensure components are operating correctly.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
- DC Voltage up to 600V
- AC Voltage up to 600V
- DC Current up to 400mA
- AC Current up to 400mA
- Resistance (Ohms) 400 to 4M
- Diode Test
- Capacitance 40nF to 100uF
- Continuity Test
- Frequency Range 10Hz to 10KHz
- Overload protection
- CAT I & II 600V AC/DC
- Ohms ranges: N/A
- Diode Test: N/A
- Continuity: N/A
- Fuses: uA, Ma N/Ae
- Agency Approval CE
- Dimensions: 3 x 5 x 1 in
- Weight: 0.25 lbs.
- Battery life: 150 hours (2-LR-44)
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, and in its original packaging. You’ll also need the receipt or proof of purchase.
To start a return, you can fill out the ORDER RETURN FORM HERE. If your return is accepted, we’ll send you the instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
DEFECTIVE, DAMAGED, OR INCORRECT ITEMS SHIPPED
If you have received a defective, damaged, or incorrect product, do not worry! Please contact us by phone or the Contact Us Form within five (5) days of receiving the product, along with the invoice or packing slip, to schedule a return. We will replace these products at no additional cost. Please keep in mind that we may require photos for documentation and to authorize call tags for returns.
Because we put our customers’ experience first, any defective, damaged, or incorrectly shipped products by CTAM, or by our manufacturers, will be re-shipped at our expense. We will also provide you with a return shipping label with detailed shipping instructions.
Please note that if the item is damaged as a result of the customer’s actions, then a return will not be approved, and the damaged items will be discarded. If the customer wants to keep the damaged items, they must first cover the shipping fees, after which the company will return the damaged items. After the five (5) day time has expired, CTAM will not be responsible for any defective, damaged, or incorrect items, regardless of who is at fault.
Exceptions / non-returnable items
Certain types of items cannot be returned, like custom products (such as special orders or personalized items). Please get in touch if you have questions or concerns about your specific item. Certain Items will Carry restocking fees for us to take back into our stock, This is due to items being made to order or for being an oversized item.
Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
The Triplett Model 2030-C is a 3-3/4 digit (4000 count) pocket sized digital multimeter with a built-in hard case. It offers a variety of measurement features including AC/DC Voltage, AC/DC Current, Resistance, Continuity, Diode Test, Frequency, and Capacitance. The ABS plastic housing provides impact and drop resistance in an ergonomic design, and the user-friendly Auto Power Off feature helps maximizes battery life. With an industry standard CAT II design that provides resistance to damage from transient overvoltages in any settings. The Model 2030-C is suited for a variety of commercial and residential applications such as security, home theater, electrical, HVAC installations and more.
Take fast and accurate measurements with this pocket-sized auto ranging digital multimeter. The digital multimeter is capable of measuring in 37 different ranges, while the attached test leads help simplify operation. The unit is great for testing batteries, solar cells, wall plugs and more, so you can ensure components are operating correctly.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
- DC Voltage up to 600V
- AC Voltage up to 600V
- DC Current up to 400mA
- AC Current up to 400mA
- Resistance (Ohms) 400 to 4M
- Diode Test
- Capacitance 40nF to 100uF
- Continuity Test
- Frequency Range 10Hz to 10KHz
- Overload protection
- CAT I & II 600V AC/DC
- Ohms ranges: N/A
- Diode Test: N/A
- Continuity: N/A
- Fuses: uA, Ma N/Ae
- Agency Approval CE
- Dimensions: 3 x 5 x 1 in
- Weight: 0.25 lbs.
- Battery life: 150 hours (2-LR-44)
