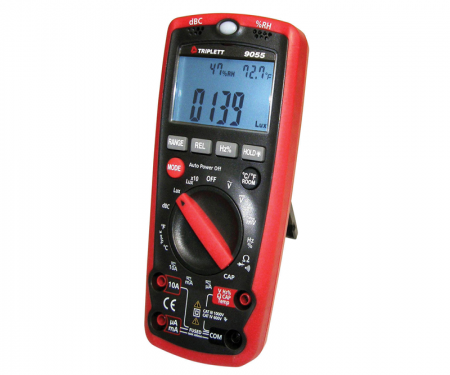

Triplett® - Model 6-in-1 Digital Multimeter - 9055
Auto Ranging 53 Measurement Ranges including AC/DC Voltage and Current
0.0 / 5
Triplett® - Model 6-in-1 Digital Multimeter - 9055 Features
- Covers 53 measurement ranges, including AC/DC voltage, AC/DC current, resistance, Lux, continuity, relative humidity, capacitance, temperature and sound
- The sound level meter measures decibels from 35 to 100 dBC
- Use the light meter to measure illumination from 0 to 40,000 lux
- Cat IV design delivers protection against transient overvoltages in industrial settings
- Rubberized overmolded housing helps protect against impacts when dropped
- Ergonomic design offers comfortable handling
- Automatic power-off function extends the battery life
- Built-in stand allows hands-free use
- Backlit display with 3.75-digit resolution shows the readings
The Triplett Model 9055 is a 3-3/4 digit (4000 counts) high-performance digital multimeter with an array of environmental functions. It offers over 50 measurement ranges including AC/DC Voltage, AC/DC Current, Resistance, Frequency, Capacitance, Temperature (Type K and ambient), Relative Humidity (RH), Light (LUX), and Sound (dBC). Additional features include an NCV Detector, Continuity, and Diode Test. The rubberized over-molded housing with built-in stand provides impact and drop resistance in a sleek ergonomic design, and the user-friendly Auto Power Off feature helps maximize battery life. With an industry-leading CAT IV design, it provides superior resistance to damage from transient overvoltages in any demanding industrial settings. The Model 9055 is suited for a variety of industrial and residential applications such as security, home theater, electrical, HVAC installations and more. Includes test leads, alligator clips, Type K Temperature probe, and 9V battery. 3-year warranty.
Use this TRIPLETT 9055 Autoranging Digital Multimeter to take light and sound measurements in addition to traditional ones, such as voltage, current, resistance and frequency. The meter features a rubberized overmolded housing to shield against damage caused by drops. A built-in stand lets you enjoy freestanding measurements while you use the test leads.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
- DC Voltage up to 1000V
- AC Voltage up to 700V
- DC Current up to 10A
- AC Current up to 10A
- Resistance (Ohms) 400 to 40M
- Diode Test
- Capacitance 50nF to 100uF
- Continuity Test
- Frequency Test 5Hz to 10MHz
- Light Meter 0 to 40,000 Lux
- Sound Level Meter 35.0 to 100 dBC
- Overload protection
- CAT I, II & III to 1000VDC, 700VAC. CAT IV to 600V AC/DC
- Ohms ranges: 600V AC/DC
- Diode Test: 600V AC/DC
- Continuity: 600V AC/DC
- Fuses: uA, Ma Jack – 500mA/600V fuses. 10A Jack – 10A/600V Fuse
- Agency Approval CE
- Dimensions: 3.2 x 6.75 x 1.4 in
- Weight: 0.70 lbs.
- Battery life: 200 hours (9 volt)
