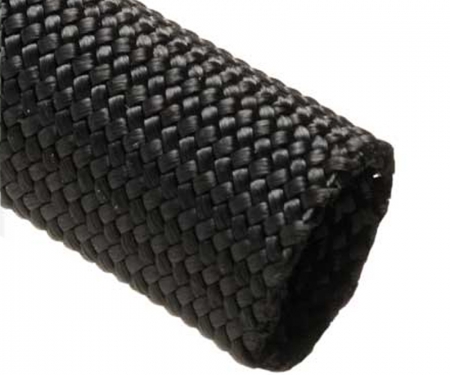

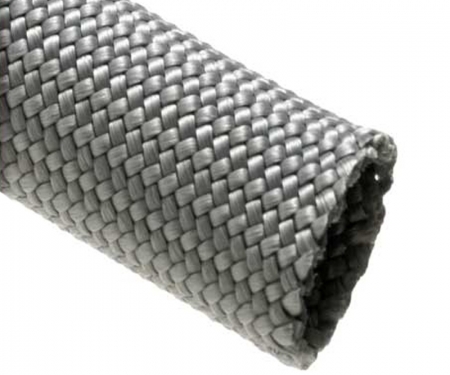

Techflex® Nylon Multifilament Braided Cable Sleeving

High Resistance to Abrasion & chemicals - Ideal For Military Use

0.0 / 5

(0)

Nylon Multifilament Sleeving Features

  • Highly Abrasion & UV Resistant
  • Resists Common Chemicals & Solvents
  • Expands Slightly For Easy Installation
  • Meets or Exceeds Military Specifications A-A-59301.
  • Cuts Easily With Hot Knife
  • RoHS Compliant
  • Will Not Rot Or Retain Moisture
  • Soft, Pliable & Quiet
  • Full Coverage For Full Protection
  • Operating Temperature Range: -49° to 248°F (-45° to 120 °C.)
  • 482°F / 250°C. Melt Temp.
  • Inside Diameters Are Measured as Round Not Flat
See More Technical Specifications

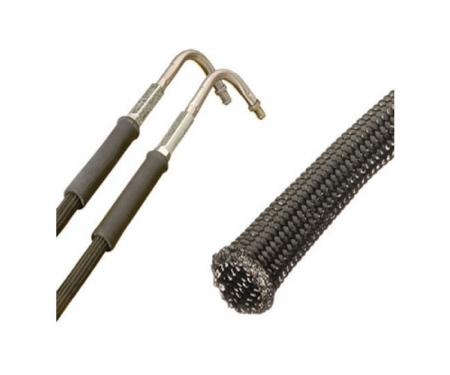

Under the hood or across the floor, Nylon Multifilament braided sleeving is the perfect sleeving product for protecting and improving the appearance of wires and cables. Nylon multifilament sleeving has been used in military wire harness applications for many years. Nylon multifilament sleeving’s fabric-like softness and flexibility hide surprisingly tough specifications. The high coverage sleeving meets or exceeds military specifications A-A-59301. Nylon multifilament braided sleeving is highly resistant to abrasion, cuts, common automotive and marine chemicals, UV damage, and vibration. It will not rot or retain moisture. The wide operating temperature range allows NM to protect delicate wiring in engine compartments and near exhaust systems. Nylon Multifilament sleeving creates a unique and attractive retro look when installed on a/v cables.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Nominal
Size
Product
Part #
Wall Thickness
±0.015"
Standard Spool Put-Ups Available
Colors
Lbs/
100'
Bulk Spool Shop Spool
3/32"
1/8"
3/16"
1/4"
5/16"
3/8"
1/2"
5/8"
3/4"
7/8"
1"
1 1/4"
1 1/2"
1 3/4"
2"
2 1/2"
3"
NMN0.09BK
NMN0.13BK
NMN0.19BK
NMN0.25BK
NMN0.31BK
NMN0.38BK
NMN0.50BK
NMN0.63BK
NMN0.75BK
NMN0.88BK
NMN1.00BK
NMN1.25BK
NMN1.50BK
NMN1.75BK
NMN2.00BK
NMN2.50BK
NMN3.00BK
.020"
.020"
.030"
.030"
.030"
.030"
.030"
.040"
.040"
.040"
.050"
.050"
.060"
.060"
.060"
.060"
.060"
1,000'
1,000'
1,000'
500'
500'
500'
250'
250'
250'
200'
200'
125'
100'
100'
100'
100'
100'
225'
225'
200'
200'
125'
125'
75'
75'
75'
50'
50'
50'
50'
50'
50'
50'
50'
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0.29
0.33
0.56
0.79
0.99
1.09
1.74
2.85
3.15
4.35
5.15
5.50
6.46
7.73
9.01
10.32
11.00
Tight Weave
3/8" NMT0.38BK .030" 250' 75' 1 1.47



Physical Properties
Monofilament Thickness ASTM D-204
Recommended Cutting Hot Knife
Colors 1
Wall Thickness .03 - .06
Tensile Strength - Yarn (ASTM D-2265) lbs. 10.5
Abrasion Resistance Extremely High
Specific Gravity 1.14
Moisture Absorption % (ASTM D-570) 2.5



Chemical Resistance

1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected
Aromatic Solvents 1
Alipahtic Solvents 1
Chlorinated Solvents 1
Weak Bases 1
Strong Bases 2
Salt Water (O-S-1926) 1
Hydraulic Fluid (MIL-H-5606) 1
Lubricating Oil (MIL-A-8243) 1
De-Icing Fluid (MIL-A-8243) 1
Strong Acids 5
Strong Oxidants 5
Esters/Ketones 2
UV Light 2
Petroleum 2
Fungus (ASTM G-21) 3
Salts 1



Hard Vacuum Data (ASTM E-595 at 10-5 torr)
TML 1.10
CVCM .01
WVR .69
Smoke D-Max (ASTM E-662) NA
Outgassing High
Oxygen Index (ASTM D-2863) 22



Operating Temperatures
Minimum Continuous -49°F/-45°C
Maximum Continuous (MIL-I-23053) 248°F/120°C
Melt (ASTM D-2117) 428°F/220°C



Other Information
Halogen Free Yes
RoHS Yes
UL/CSA No
