Nylon Monofilament Braided Sleeving

High Abrasion & Chemical Resistance - by Techflex

Nylon Monofilament Braided Sleeving Features

  • Cuts Easily with Hot Knife

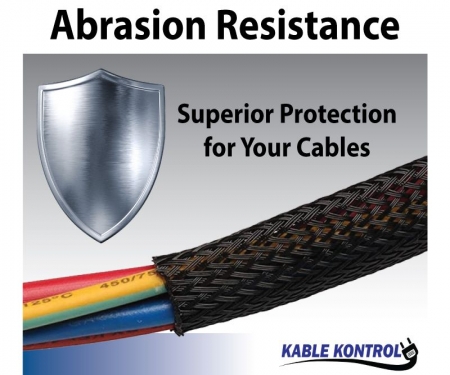

  • Very High Abrasion Resistance
  • Expands Up to 150%
  • Halogen Free - RoHS Compliant

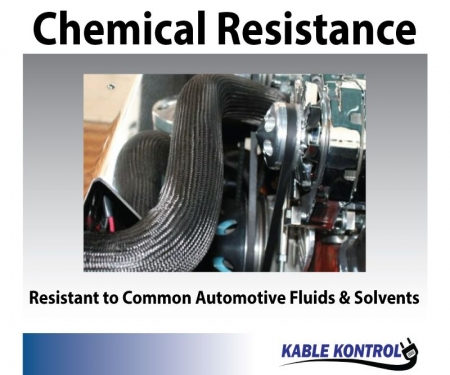

  • Resists Common Chemicals & Solvents
  • Dense Braid for Fuller Coverage

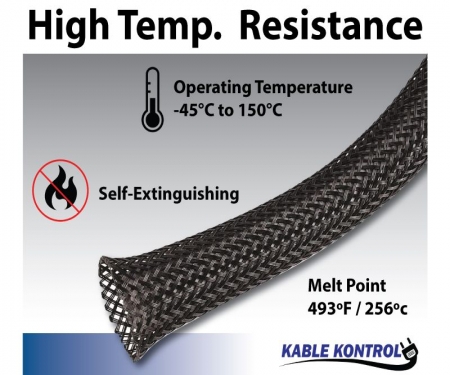

  • Operating Temperature Range -49° to 302°F (-45° to 150°C)
  • Melt Temp 493°F / 256°C .
Click for More Details or Description

Require Splice Free? Please Call 1-877-284-7760

Inside Diameters Are Measured as Round Not Flat

Product Details

Nylon Monofilament braided sleeving by techflex is commonly used in the automotive industry to protect hoses and wires from excessive wear. Vibration and movement can tear automotive hoses to pieces, but Nylon monofilament sleeving can increase hose life up to 300%. This lengthened life span is recognized in terms of reduced maintenance; a professional, attractive and durable appearance and greater customer satisfaction.

Nylon monofilament sleeving is braided from RoHS compliant 12 mil Nylon 6-6 polyamide monofilament. Nylon monofilament braided sleeving provides a full coverage, high abrasion resistant sleeving for assemblies exposed to excessive wear.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Nominal
Size
Product
Part #
Expansion Range Standard Spool Put-Ups Lbs/
100'
Min. Max. Bulk Spool Shop Spool
1/8"
1/4"
3/8"
1/2"
5/8"
3/4"
1"
1 1/4"
1 1/2"
2"
NYN0.13BK
NYN0.25BK
NYN0.38BK
NYN0.50BK
NYN0.63BK
NYN0.75BK
NYN1.00BK
NYN1.25BK
NYN1.50BK
NYN2.00BK
3/32"
1/8"
1/4"
3/8"
7/16"
1/2"
5/8"
3/4"
1"
1 1/2"
1/4"
3/8"
7/16"
3/4"
1"
1 1/4"
1 3/8"
1 1/2"
2"
3"
1,000'
1,000'
500'
500'
500'
250'
250'
250'
200'
200'
225'
200'
125'
100'
100'
75'
50'
50'
40'
50'
0.22
0.31
0.72
1.03
1.12
1.47
1.60
1.78
2.55
2.26



Physical Properties
Monofilament Thickness (ASTM D-204) .012
Flammability Rating
Recommended Cutting Hot Knife
Colors 1
Wall Thickness .03
Tensile Strength - Yarn (ASTM D-2265) lbs. 10.5
Abrasion Resistance High
Specific Gravity 1.14
Moisture Absorption % (ASTM D-570) 2.5



Hard Vacuum Data (ASTM E-595 at 10-5 torr)
TML 1.10
CVCM .01
WVR .69
Smoke D-Max (ASTM E-662) NA
Outgassing High
Oxygen Index (ASTM D-2863) 22



Chemical Resistance

1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected
Aromatic Solvents 1
Alipahtic Solvents 1
Chlorinated Solvents 1
Weak Bases 1
Strong Bases 2
Salt Water (O-S-1926) 1
Hydraulic Fluid (MIL-H-5606) 1
Lubricating Oil (MIL-L-7808) 1
De-Icing Fluid (MIL-A-8243) 1
Strong Acids 5
Strong Oxidants 5
Esters/Ketones 1
UV Light 2
Petroleum 3
Fungus (ASTM G-21) 2
Salts 1



Operating Temperatures
Minimum Continuous -49°F/-45°C
Maximum Continuous (MIL-I-23053) 302°F/150°C
Melt (ASTM D-2117) 493°F/256°C



Other Information
Halogen Free Yes
RoHS Yes
UL/CSA No
