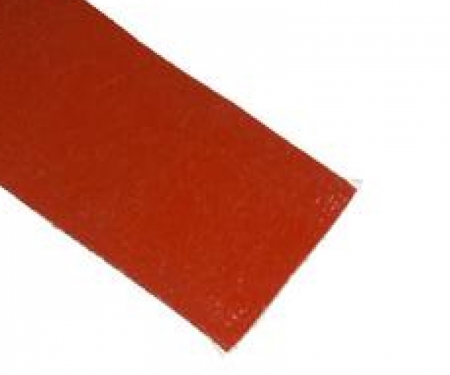

Fire Flex Flat Wrap

Silicone Coated Fiberglass Wrap - Protect Irregular Shaped Components.

Fire Flex Flat Wrap Features

  • Will Not Burn or Support Combustion
  • Extremely Abrasion & Cut Resistant
  • Operating Temps: -65°F to 500°F (-54°C to 260°C)
  • Asbestos Free - RoHS Compliant
  • Resists Common Chemicals & Solvents
  • Average 0.080" Wall Thickness
  • Cuts Easily With Scissors
  • Melt Temp: 2,048°F/1,120°C
Click for More Details or Description

Product Details

Fireflex Flat tape provides the same protection against exposure to extreme heat, open flame, and molten splash as Fireflex sleeve but in a versatile tape.

It is specifically designed to protect components of irregular shape, such as hose spilter assemblies and cable splices. The heavy silicone coating maintains flexibility while resisting all automotive chemicals and solvents, and providing an increased level of abrasion protection.

It is common for Fireflex Flat tape to over-wrapped at 50%, providing a double layer of protection. Once installed, it can be easily secured with twiwraps, wire ties, and hose clamps.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Nominal
Size
Product
Part #
Wall
Thickness
Standard Spool Put-Ups Available
Colors
Lbs/
100'
Bulk Spool Shop Spool
3 1/2" FIF3.50 .094" 50' 25' 3 16.53



Physical Properties
Monofilament Thickness (ASTM D-204) NA
Flammability Rating Non-Flammable
Recommended Cutting Scissor
Colors 1
Wall Thickness .045
Abrasion Resistance



Operating Temperatures
Minimum Continuous -65°F/-54°C
Maximum Continuous (MIL-I-23053) 500°F/260°C
Melt 2,048°F/1,120°C



Other Information
UL/CSA No
RoHS Yes
Halogen Free Yes



Chemical Resistance

1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected
Aromatic Solvents 1
Alipahtic Solvents 1
Chlorinated Solvents 1
Weak Bases 1
Strong Bases 1
Salt Water (O-S-1926) 1
Hydraulic Fluid (MIL-H-5606) 1
Lubricating Oil (MIL-L-7808) 1
De-Icing Fluid (MIL-A-8243) 1
Strong Acids 2
Strong Oxidants 2
Esters/Ketones 1
UV Light 1
Petroleum 1
Fungus (ASTM G-21) 1
Salts 1
