Techflex® Fire Flex Fiberglass Braided Cable Sleeving
Silicone Jacketed Fiberglass - 500ºF Max Temp - Non Permeable
0.0 / 5
Fire Flex Fiberglass Sleeving
- Operating Temps: -65°F to 500°F (-54°C to 260°C)
- Resists Common Chemicals & Solvents
- Will Not Burn or Support Combustion
- Extremely Abrasion and Cut Resistant
- Asbestos Free - RoHS Compliant
- Average 0.080" Wall Thickness
- Cuts Easily With Scissors
- Melt Temp: 2,048°F/1,120°C
Inside Diameters Are Measured as Round Not Flat

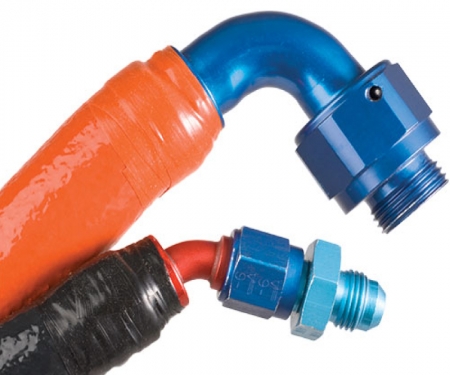

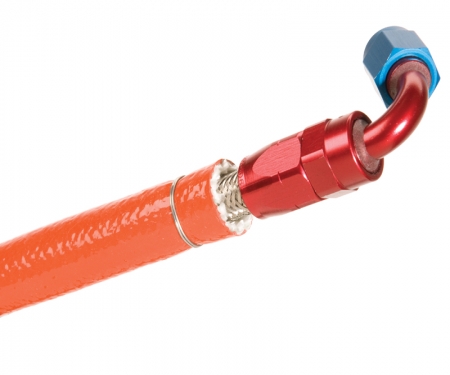

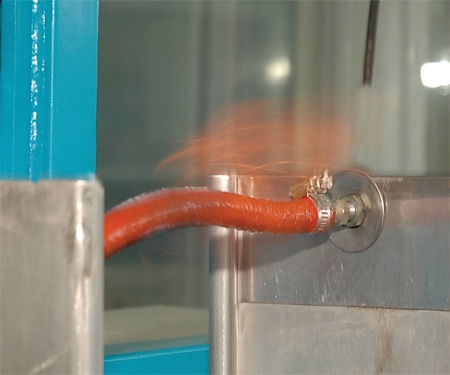

fire flex Silicone jacketed fiberglass sleeving is the choice of professionals in racing and other industries where protection from constant temperatures approaching 500°F is mandatory. FireFlex fiberglass/silicone sleeving is engineered to protect hoses, cables and wire harnesses from damage due to exposure to extreme heat, open flame, molten splash and welding sparks. The thick, high-temperature fiberglass sleeve is jacketed with a non-permeable, heavy silicone coating that is flexible enough to follow tight radius curves, resists all automotive chemicals and solvents, and provides a substantial level of abrasion and puncture protection. FireFlex is completely non-conductive, will not melt, delaminate, become brittle or support combustion under normal conditions, and provides a professional level solution to thermal protection needs in any application.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thickness ±0.010" | Standard Spool Put-Ups | Available Colors | Lbs/ 100' | |
| Bulk | Shop | |||||
| 1/4" 3/8" 1/2" 5/8" 3/4" 7/8" 1" 1 1/4" 1 1/2" 1 3/4" 2" 2 1/4" 2 3/8" 2 1/2" 2 3/4" 2 7/8" 3" 3 1/2" 4" | FIN0.25 FIN0.38 FIN0.50 FIN0.63 FIN0.75 FIN0.88 FIN1.00 FIN1.25 FIN1.50 FIN1.75 FIN2.00 FIN2.25 FIN2.38 FIN2.50 FIN2.75 FIN2.88 FIN3.00 FIN3.50 FIN4.00 | .072" .072" .072" .072" .072" .072" .072" .072" .072" .072" .072" .072" .072" .072" .072" .072" .072" .072" .072" | 100' 100' 100' 100' 50' 50' 50' 50' 50' 50' 50' 50' 50' 50' 50' 50' 50' 25' 25' | 50' 50' 50' 50' 25' 25' 25' 25' 25' 25' 25' 25' 25' 25' 25' 25' 25' - - | 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 | 4.80 6.30 7.40 8.80 9.80 10.10 13.50 14.00 14.70 16.30 20.50 22.90 26.90 28.30 30.10 32.00 33.40 37.20 40.10 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | NA |
| Flammability Rating | Non-Flammable |
| Recommended Cutting | Scissor |
| Colors | 2 |
| Wall Thickness | .072 |
| Abrasion Resistance | Extremely High |
| Operating Temperatures | |
| Minimum Continuous | -65°F/-54°C |
| Maximum Continuous (MIL-I-23053) | 500°F/260°C |
| Melt | 2,048°F/1,120°C |
| Other Information | |
| UL/CSA | No |
| RoHS | Yes |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 1 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 2 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
