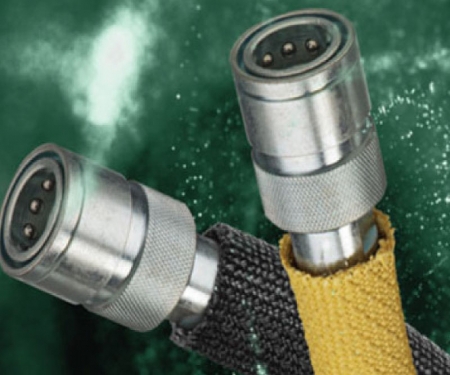

Aramid Armor Braided Sleeving

Highly Resistant to Abrasion, Cuts, Acids, Solvents, Bases & Fuels

Aramid Armor Braided Sleeving Features

  • Will Not Melt, Burn or Support Combustion
  • Stays Soft & Pliable
  • Resists Acids, Bases, Solvents, & Fuels
  • High Tensile Strength
  • Cuts With Kevlar Shears
  • Extra Heavy Duty
  • High Cut Resistance
  • Operating Temperature: -274°F to 320°F (-170°C to 160°C)
Click for More Details or Description

*Aramid Armor is Degraded by Ultraviolet Light.*

Require Splice Free? Please Call 1-877-284-7760

Inside Diameters Are Measured as Round Not Flat

Product Details

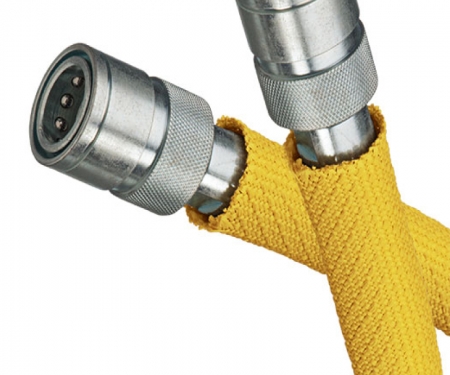

Extra heavy duty, tightly woven Aramid Armor sleeving is braided from aramid fibers, soft and pliable but with 5 times strength of steel on equal-weight basis.

Aramid Armor braided sleeving is perfect for bundling and protecting vulnerable components from the most extreme environmental conditions. The aramid fibers provide durability, pliability and extraordinary tensile strength.

It will not melt, burn or support combustion. The inherent strength and heat resistance of Aramid Armor sleeving provides performance that can not be worn or aged away. Typical uses include aerospace, marine, and automotive industry applications.

Aramid Armor sleeving is available in Yellow.

Please note that Aramid Armor is degraded by ultraviolet light. Do not store in direct sunlight. Fluoescent lighting will cause discoloration, but will not affect fiber mechanical properties.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Nominal
Size
Product
Part #
Expansion
Range
Standard
Spool Put-Ups
Colors Lbs/
100'
Min. Max. Bulk Shop
1/4"
1/2"
1"
1 1/4"
KVX0.25YL
KVX0.50YL
KVX1.00YL
KVX1.25YL
1/4"
1/2"
1"
1 1/4"
3/8"
1"
1 3/4"
2"
500'
250'
200'
125'
50'
50'
25'
25'
YL
YL
YL
YL
1.69
3.22
4.76
5.88



Physical Properties
Monofilament Thickness (ASTM D-204)
Flammability Rating
Recommended Cutting Kevlar Shears
Colors 1
Wall Thickness
Tensile Strength - Yarn (ASTM D-2265) lbs. 39
Abrasion Resistance Medium
Specific Gravity 1.44
Moisture Absorption % (ASTM D-570)



Hard Vacuum Data (ASTM E-595 at 10-5 torr)
TML 3.13
CVCM .19
WVR 1.76
Smoke D-Max (ASTM E-662)
Outgassing High
Oxygen Index (ASTM D-2863) 29



Chemical Resistance

1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected
Aromatic Solvents 2
Alipahtic Solvents 2
Chlorinated Solvents 2
Weak Bases 1
Strong Bases 2
Salt Water (O-S-1926) 1
Hydraulic Fluid (MIL-H-5606) 1
Lubricating Oil (MIL-L-7808) 1
De-Icing Fluid (MIL-A-8243) 1
Strong Acids 2
Strong Oxidants 2
Esters/Ketones 2
UV Light 4
Petroleum 1
Fungus (ASTM G-21) 2
Salts 1



Operating Temperatures
Minimum Continuous -274°F/-170°C
Maximum Continuous (MIL-I-23053) 320°F/160°C
Melt (ASTM D-2117) It Will Not Melt



Other Information
Halogen Free Yes
UL/CSA Yes
