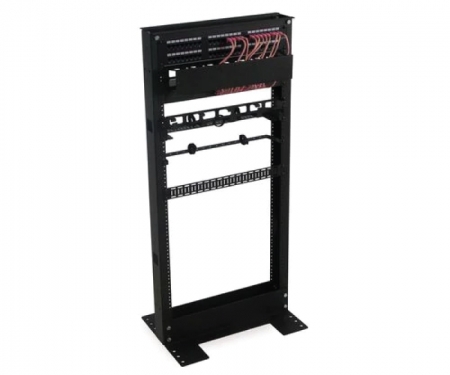

Two Post Relay Racks - Kendall Howard

25U & 45U Sizes Available - Can Hold Up To 800 lbs of Equipment

Kendall Howard Two Post Relay Rack Features

  • 10-32 Tapped Rails
  • Includes 25 10-32 Rack Screws
  • Includes Four ¼-20 Grounding Studs
  • Gangable
  • Ships knocked Down
  • 800 lb. Weight Capacity
  • 19” EIA Compliant
  • Made In The USA
  • Limited Lifetime Warranty
Click for More Details or Description

Product Details

Whether working with a wiring closet, telecom room, or data center, the Kendall Howard 2-Post Relay Rack is the ideal racking solution. Its sturdy construction makes a rigid, reliable rack that can hold up to 800 lbs. of equipment, including switches, patch panels, UPS’s, rack shelves, rackmount keyboard trays, and more. The rack features four ¼-20 x 0.5” grounding studs on the inside of the rails that allow you to ground your equipment directly to those studs. Also included with the rack are serrated tooth washers that, when tightened, dig in and remove paint from the rack, establishing electrical continuity throughout the rack. When multiple 2-Post Relay Racks are needed, simply gang them together with the ganging holes on both sides of the frame. You can even gang both the 24U and 45U size racks together because the holes align. Cable pass through slots are also included on the frames to allow cabling to pass through between racks. The completely open top design allows the 2-Post Relay Rack to accept cable bundles. It also makes the rack compatible with most ladder racks and coordinating accessories. When you need a 2-post rack that offers both strength and dependability, there is none other than the 2-Post Relay Rack.

Durability The 2-Post Relay Rack’s welded L-bracket base and cold rolled steel design forms a sturdy, reliable rack. To maintain its weight capacity, the rack must be bolted or secured to the floor. We always recommend installing your heaviest equipment at the lowest points on the rack.
Gangable Ganging holes on both sides of the rack make it easy to gang and secure multiple racks together. The sides also feature cable pass through holes to allow cabling to pass from one rack to the next.
Electrical Grounding The rack features four ¼-20 x 0.5” grounding studs on the inside of the rails. These studs allow you to ground your equipment directly to the stud or with the use of bus bars, not included. The rack also includes serrated tooth washers to allow the frame to be grounded during the assembly process.
Open Top Design The 2-Post Relay Rack’s completely open top allows for smaller trunk cabling, and makes the rack compatible with most ladder racks and accessories.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

KH-1911-3-200-24 | Kendall Howard | 24u 2-Post Rack

Manufacturer Kendall Howard
Rack Units (Size U) 24
Thread Type 10-32 Tapped
Weight Capacity 800 lb.
External Width (Inches) 20.81
External Depth (Inches) 15.04
External Height (Inches) 47.37
Internal Width (Inches) 19.00 (EIA Compliant)
Includes 25x 10-32 Rack Screws
Color Black (Powder Coat)
Material CRS (Cold Rolled Steel)
Country of Origin Made in USA



KH-1911-3-200-45 | Kendall Howard | 45u 2-Post Rack

Manufacturer Kendall Howard
Rack Units (Size U) 45
Thread Type 10-32 Tapped
Weight Capacity 800 lb.
External Width (Inches) 20.81
External Depth (Inches) 15.04
External Height (Inches) 84.12
Internal Width (Inches) 19.00 (EIA Compliant)
Includes 25x 10-32 Rack Screws
Color Black (Powder Coat)
Material CRS (Cold Rolled Steel)
Country of Origin Made in USA
