Wall Mount Patch Panel Brackets - Kendall Howard

Make Mounting Patch Panels & Shallow Equipment Simple & Easy

Kendall Howard Patch Panel Bracket Features

  • 180 Degree Swing-Out
  • 6" Maximum Depth
  • 19" EIA Compliant
  • Requires 10-32 Rack Screws
  • Made In The USA
  • Limited Lifetime Warranty
Click for More Details or Description

Hardware Not Included With Purchase Of *1U Bracket*

Product Details

The Kendall Howard Patch Panel Bracket makes mounting patch panels and/or other shallow equipment simple and easy. The unique hinged design allows installed equipment to swing to the left or right 180 degrees for convenient access to the back. These hinged wall mount systems are a fantastic alternative to larger, more expensive solutions that end up wasting space.

Low Cost Wall Mount Solution The hinged design delivers the functionality of a swing-out rack without the added cost. Perfect for small business or home office applications.
Numerous Cable Tie Points The patch panel wall mount brackets are packed with built-in cable tie downs and access holes, ensuring your installation is neat, organized, and ready for action.
Easy to Use Once the bracket is mounted to the wall, simply mount the device to the hinged side of the bracket, swing it open, and terminate the cables. When completed, close the bracket and secure to the other side of the bracket.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

1U Patch Panel Bracket

Part Number 1916-3-200-01
Width 19.25"
Depth 6"
Height 1.75"
Weight 1.60 lbs.
Shipping Dimensions 20" L x 3" W x 7" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish

2U Patch Panel Bracket

Part Number 1916-3-200-02
Width 19.25"
Depth 6"
Height 3.5"
Weight 3.00 lbs.
Shipping Dimensions 20" L x 4" W x 7" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish

4U Patch Panel Bracket

Part Number 1916-3-200-04
Width 19.25"
Depth 6"
Height 7"
Weight 5.00 lbs.
Shipping Dimensions 20" L x 8" W x 7" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish

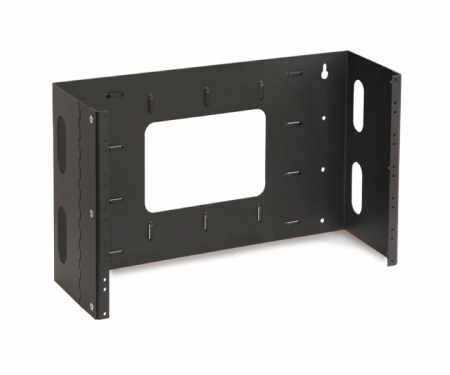

6U Patch Panel Bracket

Part Number 1916-3-200-06
Width 19.25"
Depth 6"
Height 10.5"
Weight 7.00 lbs.
Shipping Dimensions 20" L x 12" W x 7" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish
