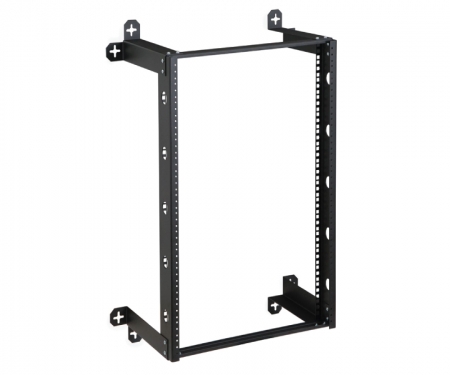

V-Line Open Frame Wall Racks - Kendall Howard

12U - 21U. Ideal For Simple Applications, Easy to Assemble & Install.

Kendall Howard V-Line Wall Mount Rack Features

  • 12" Or 18” Usable Depth
  • Cage Nut or 10-32 Tapped Rails
  • Self-Squaring Design
  • 19" EIA Compliant
  • Made in The USA
  • Limited Lifetime Warranty
Click for More Details or Description

Product Details

The Kendall Howard V-Line Wall Mount Rack is the perfect entry level solution for IT installers, musicians, audio/visual technicians, and anyone else in the telecom industry. When a simple open frame wall mount rack is needed, the Kendall Howard V-Line Open Frame Fixed Wall Mount Rack is a great option.

Knockdown Design The bolt together assembly has a self-squaring design to make it incredibly easy to assemble and install.
Choose Your Rail Style The U shaped rail channels feature two different mounting styles. One side features 10-32 tapped mounting holes, and the other has universal cage nut mounting capabilities.
Quality Wall Rack The simplistic design of the V-Line Wall Mount Rack may not look it, but its 300 lb. weight capacity makes it one of the strongest wall mount solutions out there.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

12U V-Line Wall Mount Rack - 12" Depth

Part Number 1915-3-300-12
Width 21.5"
Depth 12"
Height 24.13"
Weight 10.30 lbs.
Shipping Dimensions 23" L x 10" W x 4" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish



12U V-Line Wall Mount Rack - 18" Depth

Part Number 1915-3-301-12
Width 21.5"
Depth 18"
Height 24.13"
Weight 12.05 lbs.
Shipping Dimensions 23" L x 10" W x 4" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish



16U V-Line Wall Mount Rack - 12" Depth

Part Number 1915-3-300-16
Width 21.5"
Depth 12"
Height 31.13"
Weight 11.95 lbs.
Shipping Dimensions 30" L x 10" W x 4" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish



16U V-Line Wall Mount Rack - 18" Depth

Part Number 1915-3-301-16
Width 21.5"
Depth 18"
Height 31.13"
Weight 13.50 lbs.
Shipping Dimensions 30" L x 10" W x 4" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish



21U V-Line Wall Mount Rack - 12" Depth

Part Number 1915-3-300-21
Width 21.5"
Depth 12"
Height 39.88"
Weight 13.75 lbs.
Shipping Dimensions 39" L x 10" W x 4" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish



21U V-Line Wall Mount Rack - 18" Depth

Part Number 1915-3-301-21
Width 21.5"
Depth 18"
Height 39.88"
Weight 15.50 lbs.
Shipping Dimensions 39" L x 10" W x 4" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coated Finish
