Triplett® Cable & Network Low Voltage Pro Tester Kit - LVPRO30SR
Designed for use in all low-voltage testing applications
0.0 / 5
Triplett® Cable & Network Low Voltage Pro Tester Kit - LVPRO30SR
- Cable test pack features TIA 586 tests, PASS/FAIL, wiremap, timing tests, and impedance measurement
- Locate wall jacks and speakers with ease (requires wall jack and speaker ID kits; sold separately)
- Maps and labels A/V speaker wires (requires a remote kit; sold separately)
- Port blink cable detection makes it easy to locate a cable connection to a switch port with a visible LED
- Place a tone on 1 end and detect it on the other with the tone cable detection feature (requires a remote kit; sold separately)
- 2 LEDs keep you apprised of active switch connections and/or voltages on the line
- Included length pack for all wire types adds length to the CABLE TEST APP
- Conduct RLQ tests
- Works with all cable types, including speaker cables, coax cables, alarm cables, and Category cables
- Circuitry is protected up to 60 V
- Upgrade your tester at a later date via LVPro Manager software and the included USB cable
- Features up to 13 test APPS
The TRIPLETT Low Voltage Pro 30SR Multifunctional Cable/Network Tester Kit is designed for use in all low-voltage testing applications, including switches, PoE power, CCTV and surround sound speakers. Detect faulty cables quickly thanks to the included CABLE TEST APP, which features TIA 586 tests, length and return loss quality (RLQ). Expand the capabilities of this cable/network testing device by downloading test APPS. Designed as a long term practical monitoring device, the Power Panel can remain inline between 2 devices without affecting the communication
- Plug into any device with an Ethernet plug: computer, switch, VoIP phone, IP camera or access point; Locate the active devices and voltage on the Ethernet cable or port; Display the speed (10,100,1000), duplex and pinouts of the devices
- Display the PoE voltage and pinouts (if PoE is present)and measure the power usage of the PoE in watts
- Plug into any device with an Ethernet plug: computer, switch, VoIP phone, IP camera or access point
The Triplett LVPRO is an industry leading cable tester that runs a variety of cable testing procedures such as wiremap, timing tests (delay, skew), impedance measurement, Ethernet switch port blink, speaker pop, cable length, PoE volts, loaded battery test and 10/100/1000 indication, plus it gives you the ability to store and print up to 250 test reports. Three models to choose from. Model LVPRO30SR adds Smart Remotes to Model LVPRO30.

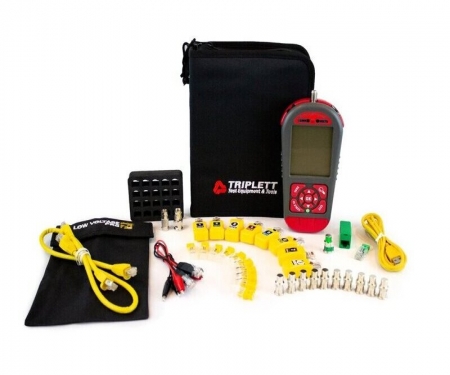

Includes:
- Detachable Remote,
- F Male to BNC Male
- F Male to BNC Female
- (2) RJ45 patch cables
- RJ45 to alligator clip adapter
- USB cable
- (4) AA batteries and carrying case.
Models 30 and 30SR also include:
- 10 RJ45 remotes
- 10 Coax remotes
- 3 RLQ adapters
- Model 30SR includes Smart Remotes.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, and in its original packaging. You’ll also need the receipt or proof of purchase.
To start a return, you can fill out the ORDER RETURN FORM HERE. If your return is accepted, we’ll send you the instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.
Exceptions / non-returnable items
Certain types of items cannot be returned, like custom products (such as special orders or personalized items). Please get in touch if you have questions or concerns about your specific item. Certain Items will Carry restocking fees for us to take back into our stock, This is due to items being made to order or for being an oversized item.
Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
The TRIPLETT Low Voltage Pro 30SR Multifunctional Cable/Network Tester Kit is designed for use in all low-voltage testing applications, including switches, PoE power, CCTV and surround sound speakers. Detect faulty cables quickly thanks to the included CABLE TEST APP, which features TIA 586 tests, length and return loss quality (RLQ). Expand the capabilities of this cable/network testing device by downloading test APPS. Designed as a long term practical monitoring device, the Power Panel can remain inline between 2 devices without affecting the communication
- Plug into any device with an Ethernet plug: computer, switch, VoIP phone, IP camera or access point; Locate the active devices and voltage on the Ethernet cable or port; Display the speed (10,100,1000), duplex and pinouts of the devices
- Display the PoE voltage and pinouts (if PoE is present)and measure the power usage of the PoE in watts
- Plug into any device with an Ethernet plug: computer, switch, VoIP phone, IP camera or access point
The Triplett LVPRO is an industry leading cable tester that runs a variety of cable testing procedures such as wiremap, timing tests (delay, skew), impedance measurement, Ethernet switch port blink, speaker pop, cable length, PoE volts, loaded battery test and 10/100/1000 indication, plus it gives you the ability to store and print up to 250 test reports. Three models to choose from. Model LVPRO30SR adds Smart Remotes to Model LVPRO30.
Includes:
- Detachable Remote,
- F Male to BNC Male
- F Male to BNC Female
- (2) RJ45 patch cables
- RJ45 to alligator clip adapter
- USB cable
- (4) AA batteries and carrying case.
Models 30 and 30SR also include:
- 10 RJ45 remotes
- 10 Coax remotes
- 3 RLQ adapters
- Model 30SR includes Smart Remotes.
