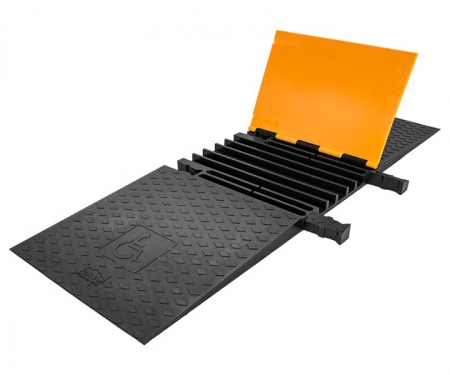

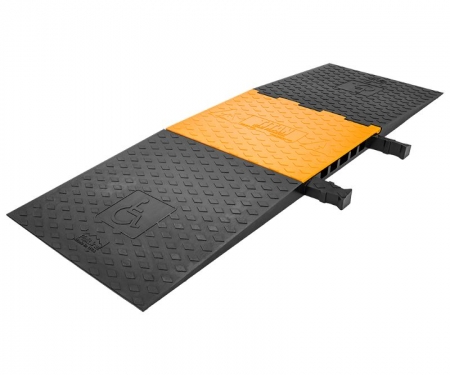

Titan® 5 Channels ADA Cable Protector Ramp
Fully ADA compliant Design & Proudly Made in The USA
0.0 / 5
Titan® 5 Channels ADA Cable Protector Ramp Features
- Overall Dimensions: 18.1”L x 54.375"W x 1.8"H
- Outer Channels measure 1.3"W x 1.1"H
- Center Channel measures 1.7"W x 1.1"H
- Weighs 34 lbs
- Heavy-duty, UV-stabilized Polyurethane construction
- High traction tread design
- High visibility lid color for contrast
- Radiused divider ends to minimize cable snags
- Easy to use inter-connects
- Flush hinge design
- Durable composite hinge pin
- Molded carry handle on underside of base
- ADA compliant design
- Made in the USA
The Titan 5-Channel ADA Cable Protector was developed from a culmination of nearly 40 years of experience designing and manufacturing industrial grade polyurethane products, resulting in an extremely durable cable protector that will deliver a long service life in the most demanding applications. Our Titan ADA Cable Ramp is ADA compliant and features a low profile gentle slope, creating an easy cable crossing point for wheelchair and pedestrian traffic. The Titan ADA Cable Protector is engineered to withstand the abuse of heavy pedestrian and vehicle traffic areas.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Part | # of Channels | Channel Size | Center Channel Size | Length | Width | Height | Weight | Load Capacity |
|---|---|---|---|---|---|---|---|---|
| 800-520-000 | 5 | 1.3"W x 1.1"H | 1.7"W x 1.1"H | 18.1" | 54.375" | 1.8" | 34 lbs | 48000 lbs |
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, and in its original packaging. You’ll also need the receipt or proof of purchase.
To start a return, you can fill out the ORDER RETURN FORM HERE. If your return is accepted, we’ll send you the instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.
Exceptions / non-returnable items
Certain types of items cannot be returned, like custom products (such as special orders or personalized items). Please get in touch if you have questions or concerns about your specific item. Certain Items will Carry restocking fees for us to take back into our stock, This is due to items being made to order or for being an oversized item.
Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
The Titan 5-Channel ADA Cable Protector was developed from a culmination of nearly 40 years of experience designing and manufacturing industrial grade polyurethane products, resulting in an extremely durable cable protector that will deliver a long service life in the most demanding applications. Our Titan ADA Cable Ramp is ADA compliant and features a low profile gentle slope, creating an easy cable crossing point for wheelchair and pedestrian traffic. The Titan ADA Cable Protector is engineered to withstand the abuse of heavy pedestrian and vehicle traffic areas.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Part | # of Channels | Channel Size | Center Channel Size | Length | Width | Height | Weight | Load Capacity |
|---|---|---|---|---|---|---|---|---|
| 800-520-000 | 5 | 1.3"W x 1.1"H | 1.7"W x 1.1"H | 18.1" | 54.375" | 1.8" | 34 lbs | 48000 lbs |
Product Manuals
Frequently Asked Questions
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Videos
