ADA Cross Guard Cable Protector Ramps

Convert Existing Protectors To ADA Accessible Ramps

ADA Cross Guard Cable Protector Ramp Features

  • Protects cables, cords and hoses at events featuring heavy foot traffic
  • The gently sloping design prevents pedestrians from tripping over cables
  • Textured ramp surface provides traction and resists slips
  • Heavy duty protection with load capacity up to 40,300 lbs. per axle
  • Easy to set up and disassemble
  • Side rails prevent accidental falls and roll-offs
  • The 36" wide ramp allows more than one person to cross over at the same time

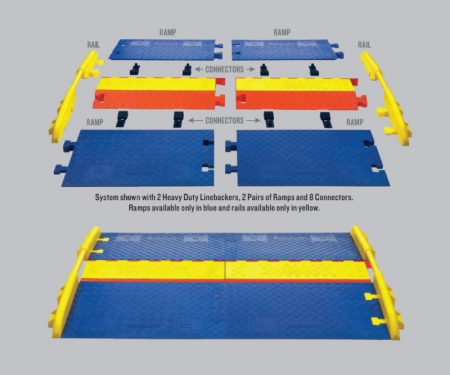

  • Multiple sections can be used together for longer or wider runs
  • Made out of strong but lightweight Polyurethane material that’s UV resistant
Click for More Details or Description

WARNING! Cross-Guard® ramps and rails are compatible only with Linebacker® and Guard Dog® cable protectors as specified. Improper use with other cable protector brands may result in product failure or injury.

Product Details

When planning a large event (like a street fair, convention or outdoor concert), this cord protector system is a must have. Limit the possibility of customers tripping and falling over cables and hoses with this kit that includes the heavy duty cord cover, ADA ramps and rails to ensure the safety of your patrons. Choose the cord protector that will best suit your needs first, then the corresponding ADA rails and ramps. One person installation is literally a “snap”.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

SPECIFICATION DATA LOAD CAPACITY
MAX LOAD 70°F (21°C)
Material Polyurethane (UV stabilized) Ramps 10,500 lbs. (4,463 kg) per tire
Operating Temp. -40°F to 120°F (-40°C to 48°C) 21,000 lbs. (9,526 kg) per axle



ADA Ramp Technical Specifications



PART # DESCRIPTION A-WIDTH B-LENGTH C-HEIGHT WEIGHT
ADA Rails
CPADARL-1GP ADA Rail for Linebacker GP-1 1.5"
(38.1mm)
47.5"
(1206.6mm)
2" (50.8mm) 12.65 lbs.
(5.75 kg)
CPADARL-4/5 ADA Rail for Linebacker HD-4 & HD-5 1.5"
(38.1mm)
55.5"
(1409.7mm)
2" (50.8mm) 12.75 lbs.
(5.8 kg)
CPADARL-5GP ADA Rail for Linebacker GP-5 1.5"
(38.1mm)
54"
(1371.6mm)
2" (50.8mm) 12.7 lbs.
(5.8kg)
CPADARL-GD5 ADA Rail for GD-5 Guard Dog 2"
(50.8mm)
55.5"
(1206.6mm)
2" (50.8mm) 15 lbs.
(6.8 kg)
ADA Ramps

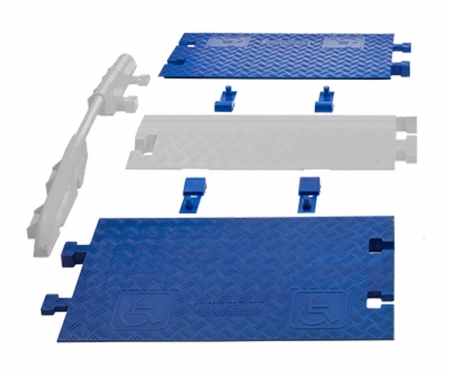

CPADARP-1GP ADA Ramps for Linebacker GP-1
(2 Ramps and 4 Connectors; same specs of all colors)
36"
(914.4mm)
21.88" (555.75mm) 2" (50.8mm) 40 lbs.
(18.1 kg)
CPADARP-5GP ADA Ramps for Linebacker GP-5
(2 Ramps and 4 Connectors; same specs of all colors)
36"
(914.4mm)
21.88" (555.75mm) 2" (50.8mm) 40 lbs.
(18.1 kg)
CPADARP-GD5 ADA Ramps for GD-5 Guard Dog
(2 Ramps and 4 Connectors; same specs of all colors)
36"
(914.4mm)
21.88" (555.75mm) 2" (50.8mm) 40 lbs.
(18.1 kg)
