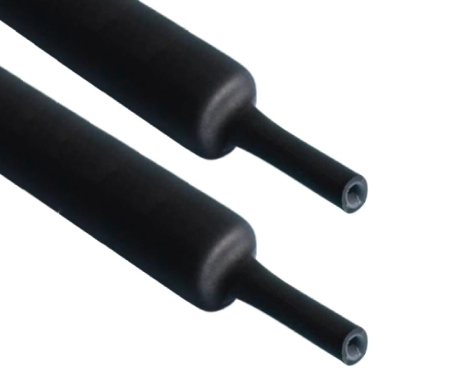

Kable Kontrol® 3:1 Heavy Wall Adhesive Lined Heat Shrink Tubing
7mm to 130mm Inside Diameters | 4 FT Sticks | Polyolefin
0.0 / 5
3:1 Adhesive Lined Heavy Wall Heat Shrink Tubing Features
- Sold in 4-foot sticks for efficient handling and consistent installation
- 3:1 shrink ratio for easy installation over large connectors and irregular shapes
- Heavy-wall polyolefin exterior offers strong abrasion and impact resistance
- EVA adhesive lining delivers a secure, waterproof, and moisture-tight seal
- Excellent electrical insulation for reliable cable and splice protection
- Operating temperature: -55℃ to 110℃ (-67°F to 230°F)
- Minimum shrink temperature: 80℃ (176°F)
- Durable, long-term environmental protection for indoor and outdoor use
- RoHS compliant
- Material: Polyolefin outer jacket with EVA adhesive inner layer
The Kable Kontrol® 3:1 Heavy Wall Adhesive Lined Heat Shrink Tubing is built for applications where maximum protection and a fully sealed connection are essential. Designed with a rugged polyolefin outer layer and an inner EVA adhesive lining, this tubing delivers a dependable moisture-tight bond that shields electrical splices, joints, and terminations from harsh environmental conditions. Once heated, the 3:1 shrink ratio allows the tubing to conform tightly around oversized connectors and uneven shapes, creating a secure and long-lasting seal. Its heavy-wall construction provides strong resistance against abrasion, impact, and mechanical wear, while also offering excellent electrical insulation. With an operating range of –55°C to 110°C (-67°F to 230°F) and a low minimum shrink temperature of 80℃ (176°F), it performs reliably in both indoor and outdoor environments. Supplied in convenient 4-foot sticks and compliant with RoHS standards, this tubing offers a durable, professional-grade solution for protecting and sealing electrical connections.
Common Uses
- Sealing and protecting electrical splices and terminations
- Providing waterproof protection for outdoor and underground cable joints
- Repairing and reinforcing damaged or worn cable jackets
- Insulating automotive, marine, and industrial wiring
- Protecting battery cables, power supply leads, and control wiring
- Shielding connections from corrosion, vibration, and mechanical stress
- Creating durable seals on heat-sensitive or irregular-shaped components
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Technical Data
| Property | Specification Requirement | Test Method | Typical Value |
| Tensile strength (Room temp.) | Min. 10.4 MPa | UL224 | 14 MPa |
| Elongation at break (Room temp.) | Min. 200% | UL224 | 400% |
| Tensile strength after aging (158°C 168 hrs) | Min. 7.3 MPa | UL224 | 10.5 MPa |
| Elongation after aging (158°C 168 hrs) | Min. 100% | UL224 | 300% |
| Voltage withstand (Un-aged) | Withstand 2.5 kV for 1 minute and no breakdown | UL224 | Pass |
| Voltage withstand (Aged) | Withstand at least half of un-aged breakdown oltage for 1 minute and no breakdown | UL224 | Pass |
| Copper corrosion (158°C 168 hrs) | No corrosion | UL224 | No corrosion |
| Copper stability (158°C 168 hrs) | No sign of degradation; Min. elongation 100% | UL224 | Pass |
| Longitudinal shrinkage | <10% | UL224 | <10% |
| Cold bend -30°C | No cracking | UL224 | Pass |
| Volume resistivity | Min. 10⁴ Ω·cm | UL224 | Pass |
| Heat shock (250°C 4 hrs) | No cracking | UL224 | Pass |
| Dielectric strength | >19.7 kV/mm | ASTM D2671 | >20 kV/mm |
| Water absorption | ≤0.2% | ASTM D570 | ≤0.2% |
| Peel strength (PE) | - | ASTM D1000 | 4 N/cm |
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, and in its original packaging. You’ll also need the receipt or proof of purchase.
To start a return, you can fill out the ORDER RETURN FORM HERE. If your return is accepted, we’ll send you the instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.
Exceptions / non-returnable items
Certain types of items cannot be returned, like custom products (such as special orders or personalized items). Please get in touch if you have questions or concerns about your specific item. Certain Items will Carry restocking fees for us to take back into our stock, This is due to items being made to order or for being an oversized item.
Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
The Kable Kontrol® 3:1 Heavy Wall Adhesive Lined Heat Shrink Tubing is built for applications where maximum protection and a fully sealed connection are essential. Designed with a rugged polyolefin outer layer and an inner EVA adhesive lining, this tubing delivers a dependable moisture-tight bond that shields electrical splices, joints, and terminations from harsh environmental conditions. Once heated, the 3:1 shrink ratio allows the tubing to conform tightly around oversized connectors and uneven shapes, creating a secure and long-lasting seal. Its heavy-wall construction provides strong resistance against abrasion, impact, and mechanical wear, while also offering excellent electrical insulation. With an operating range of –55°C to 110°C (-67°F to 230°F) and a low minimum shrink temperature of 80℃ (176°F), it performs reliably in both indoor and outdoor environments. Supplied in convenient 4-foot sticks and compliant with RoHS standards, this tubing offers a durable, professional-grade solution for protecting and sealing electrical connections.
Common Uses
- Sealing and protecting electrical splices and terminations
- Providing waterproof protection for outdoor and underground cable joints
- Repairing and reinforcing damaged or worn cable jackets
- Insulating automotive, marine, and industrial wiring
- Protecting battery cables, power supply leads, and control wiring
- Shielding connections from corrosion, vibration, and mechanical stress
- Creating durable seals on heat-sensitive or irregular-shaped components
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Technical Data
| Property | Specification Requirement | Test Method | Typical Value |
| Tensile strength (Room temp.) | Min. 10.4 MPa | UL224 | 14 MPa |
| Elongation at break (Room temp.) | Min. 200% | UL224 | 400% |
| Tensile strength after aging (158°C 168 hrs) | Min. 7.3 MPa | UL224 | 10.5 MPa |
| Elongation after aging (158°C 168 hrs) | Min. 100% | UL224 | 300% |
| Voltage withstand (Un-aged) | Withstand 2.5 kV for 1 minute and no breakdown | UL224 | Pass |
| Voltage withstand (Aged) | Withstand at least half of un-aged breakdown oltage for 1 minute and no breakdown | UL224 | Pass |
| Copper corrosion (158°C 168 hrs) | No corrosion | UL224 | No corrosion |
| Copper stability (158°C 168 hrs) | No sign of degradation; Min. elongation 100% | UL224 | Pass |
| Longitudinal shrinkage | <10% | UL224 | <10% |
| Cold bend -30°C | No cracking | UL224 | Pass |
| Volume resistivity | Min. 10⁴ Ω·cm | UL224 | Pass |
| Heat shock (250°C 4 hrs) | No cracking | UL224 | Pass |
| Dielectric strength | >19.7 kV/mm | ASTM D2671 | >20 kV/mm |
| Water absorption | ≤0.2% | ASTM D570 | ≤0.2% |
| Peel strength (PE) | - | ASTM D1000 | 4 N/cm |
