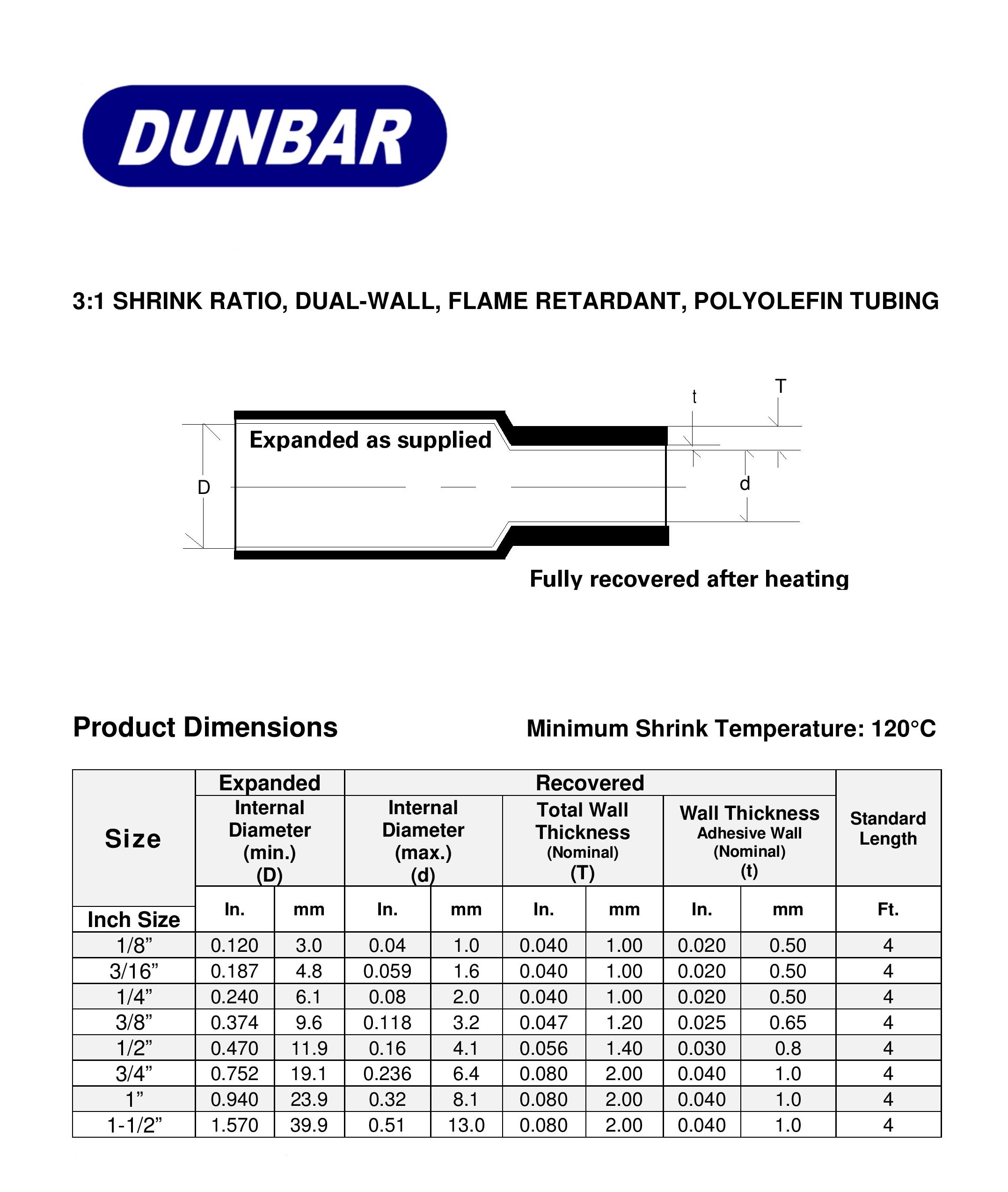

Dunbar® 3:1 Dual Wall Heat Shrink Tubing - Flexible Polyolefin

Specification / Designation: M23053/4 Class 3 | Flame Retardant

Dunbar® 3:1 Flexible Polyolefin Dual Wall Heat Shrink Features

  • Shrink ratio: 66% or more in the radial direction, 10% or less in the axial direction
  • Continuous operating temperature: - 55°C to 110°C
  • Flammability: UL VW-1, CSA OFT (Jacket only, except clear)
  • Excellent electrical properties
  • High resistance to chemicals and oils
  • MIL-DTL-23053/4 C3


MIL-DTL-23053/4 C3 is a flexible, high shrink ratio, flame-retardant heat shrinkable polyolefin tube with a meltable adhesive that flows when heated. It is needed to seal and protect a wide variety of electrical applications, including wire splices, breakouts, and connectors-to cable transitions

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.


Request a Quote

Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.

Quote Items
Search
Item Description
Quantity
SKU:

Contact Information

Product Details

MIL-DTL-23053/4 C3 is a flexible, high shrink ratio, flame-retardant heat shrinkable polyolefin tube with a meltable adhesive that flows when heated. It is needed to seal and protect a wide variety of electrical applications, including wire splices, breakouts, and connectors-to cable transitions
