Single Wire Ferrules - Nylon Insulated
Terminate One Conductor Securely | UL Listed
0.0 / 5
Single Wire Ferrules - Nylon Insulated Features
- UL Listed (E549077): Certified for safe and reliable performance
- Connector material: High-quality copper tube for superior conductivity

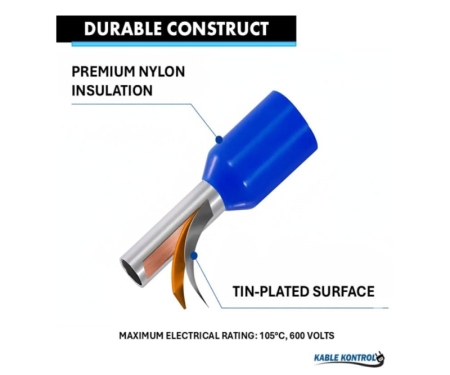

- Insulation material: Durable nylon sleeve for added mechanical and electrical protection

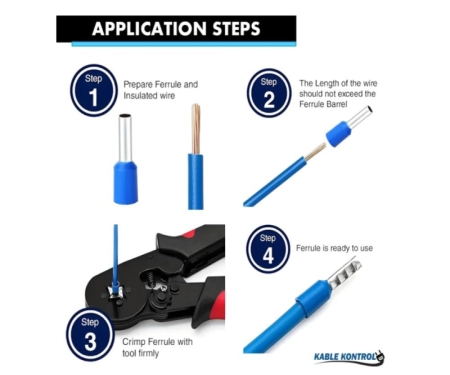

- Prevents wire strand fraying: Provides a clean, strong termination for stranded wires
- Maximum electrical rating: 105°C, 600 volts
- Easy insertion: Nylon insulation helps guide the ferrule into terminal blocks and connectors smoothly
- Enhanced safety: Improves connection security and reduces the risk of shorts or loose wires
- Convenient packaging: Sold in packs of 500 pcs for efficient stocking and installation

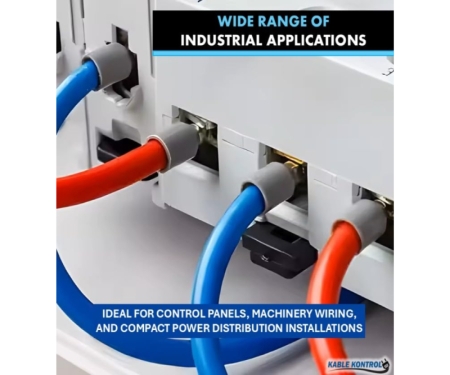

- Wide application range: Suitable for control panels, machinery wiring, and general electrical installations

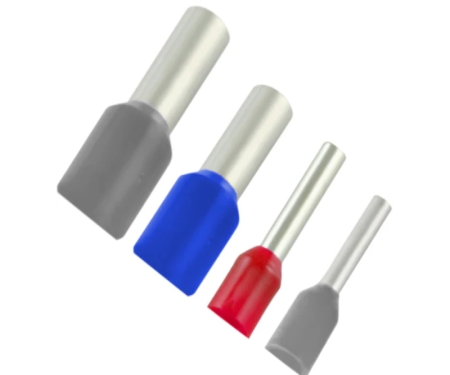

Single nylon insulated wire ferrules provide a reliable and professional solution for terminating stranded wires. Designed to prevent wire fraying and ensure secure, consistent connections, these ferrules feature a high-conductivity copper tube for excellent electrical performance and a durable nylon insulation sleeve for added protection. UL listed for safety and quality assurance, they are rated for up to 105°C and 600 volts, they are ideal for a wide range of electrical and control applications, from panel building to machinery wiring. The nylon insulation not only improves dielectric strength but also makes insertion into terminals easier, reducing installation time and enhancing connection reliability.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

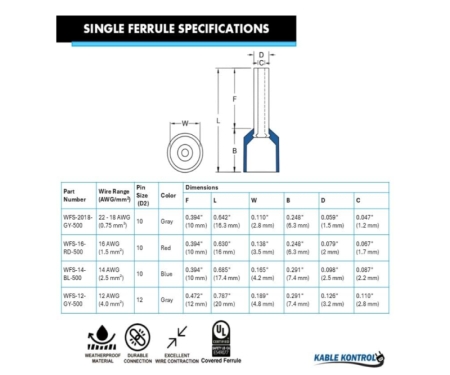

| Part Number | Wire Range (AWG/mm2) | Pin Size | Color | Dimensions | |||||||||||||
| F | L | W | B | D | C | ||||||||||||

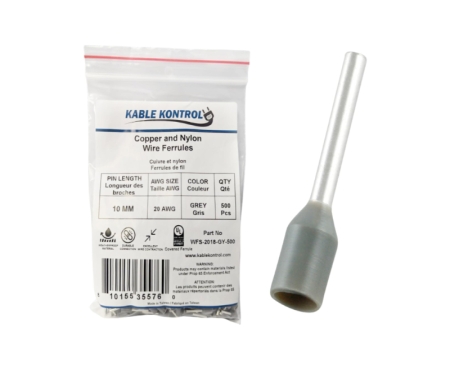

| WFS-2018-GY-500 | 22 - 18 AWG (0.75 mm²) | 10 | Gray | 0.394" (10 mm) | 0.642" (16.3 mm) | 0.110" (2.8 mm) | 0.248" (6.3 mm) | 0.059" (1.5 mm) | 0.047" (1.2 mm) | ||||||||

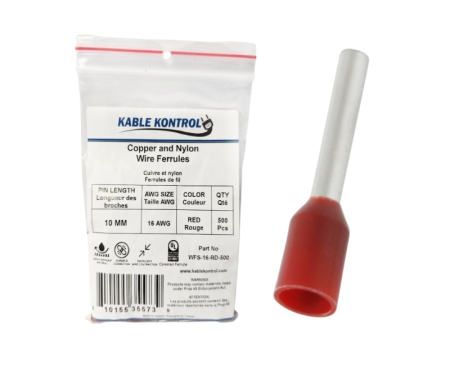

| WFS-16-RD-500 | 16 AWG (1.5 mm²) | 10 | Red | 0.394" (10 mm) | 0.630" (16 mm) | 0.138" (3.5 mm) | 0.248" (6.3 mm) | 0.079" (2 mm) | 0.067" (1.7 mm) | ||||||||

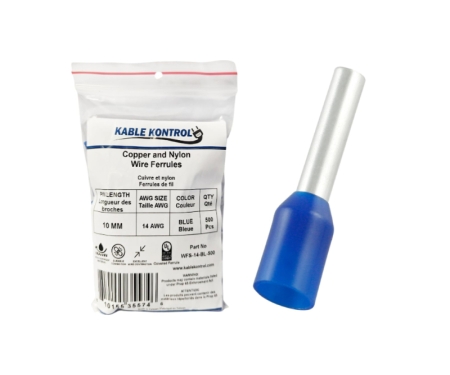

| WFS-14-BL-500 | 14 AWG (2.5 mm²) | 10 | Blue | 0.394" (10 mm) | 0.685" (17.4 mm) | 0.165" (4.2 mm) | 0.291" (7.4 mm) | 0.098" (2.5 mm) | 0.087" (2.2 mm) | ||||||||

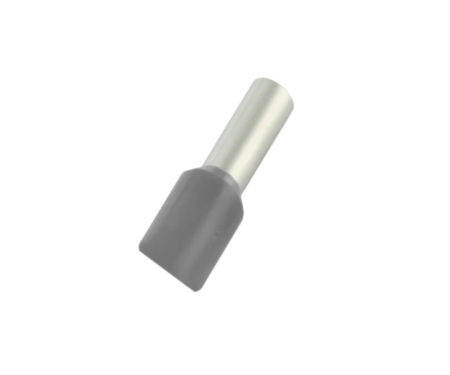

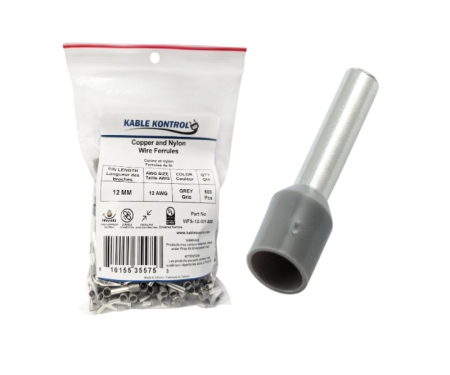

| WFS-12-GY-500 | 12 AWG | 12 | Gray | 0.472" (12 mm) | 0.787" (20 mm) | 0.189" (4.8 mm) | 0.291" (7.4 mm) | 0.126" (3.2 mm) | 0.110" (2.8 mm) | ||||||||
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Single nylon insulated wire ferrules provide a reliable and professional solution for terminating stranded wires. Designed to prevent wire fraying and ensure secure, consistent connections, these ferrules feature a high-conductivity copper tube for excellent electrical performance and a durable nylon insulation sleeve for added protection. UL listed for safety and quality assurance, they are rated for up to 105°C and 600 volts, they are ideal for a wide range of electrical and control applications, from panel building to machinery wiring. The nylon insulation not only improves dielectric strength but also makes insertion into terminals easier, reducing installation time and enhancing connection reliability.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Part Number | Wire Range (AWG/mm2) | Pin Size | Color | Dimensions | |||||||||||||
| F | L | W | B | D | C | ||||||||||||
| WFS-2018-GY-500 | 22 - 18 AWG (0.75 mm²) | 10 | Gray | 0.394" (10 mm) | 0.642" (16.3 mm) | 0.110" (2.8 mm) | 0.248" (6.3 mm) | 0.059" (1.5 mm) | 0.047" (1.2 mm) | ||||||||
| WFS-16-RD-500 | 16 AWG (1.5 mm²) | 10 | Red | 0.394" (10 mm) | 0.630" (16 mm) | 0.138" (3.5 mm) | 0.248" (6.3 mm) | 0.079" (2 mm) | 0.067" (1.7 mm) | ||||||||
| WFS-14-BL-500 | 14 AWG (2.5 mm²) | 10 | Blue | 0.394" (10 mm) | 0.685" (17.4 mm) | 0.165" (4.2 mm) | 0.291" (7.4 mm) | 0.098" (2.5 mm) | 0.087" (2.2 mm) | ||||||||
| WFS-12-GY-500 | 12 AWG | 12 | Gray | 0.472" (12 mm) | 0.787" (20 mm) | 0.189" (4.8 mm) | 0.291" (7.4 mm) | 0.126" (3.2 mm) | 0.110" (2.8 mm) | ||||||||
