Twin Wire Ferrules - Nylon Insulated
Designed To Join Two Stranded Wires | UL Listed
0.0 / 5
Twin Wire Ferrules - Nylon Insulated Features
- UL listed (E549077): Complies with strict safety and quality standards
- Maximum electrical rating: 105°C, 600 volts
- Connector material: High-quality copper tube for superior conductivity

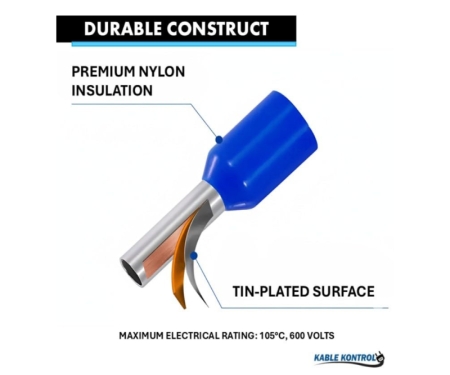

- Insulation material: Durable nylon sleeve for added electrical and mechanical protection

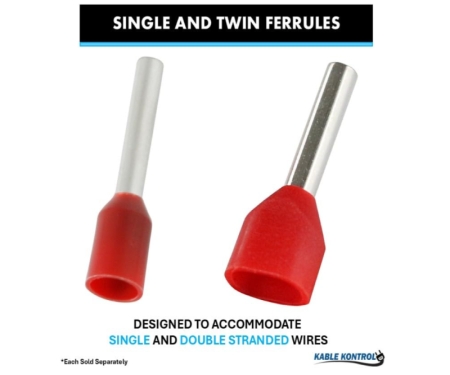

- Terminates two wires: Designed to join two stranded wires in one ferrule for neat, efficient connections
- Prevents wire fraying: Ensures clean, strong, and secure terminations
- Easy insertion: Nylon insulation helps guide wires smoothly into terminal blocks

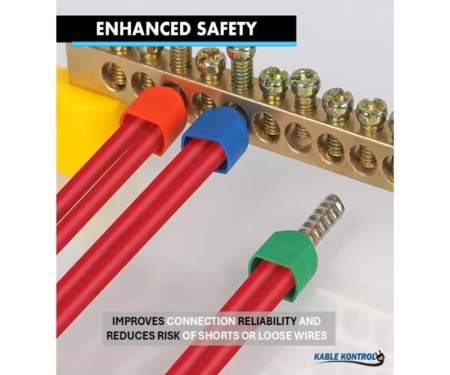

- Enhanced safety: Improves connection reliability and reduces risk of shorts or loose wires
- Convenient packaging: Sold in packs of 500 pieces for cost-effective, bulk use
- Versatile applications: Perfect for control panels, machinery wiring, and compact power distribution installations

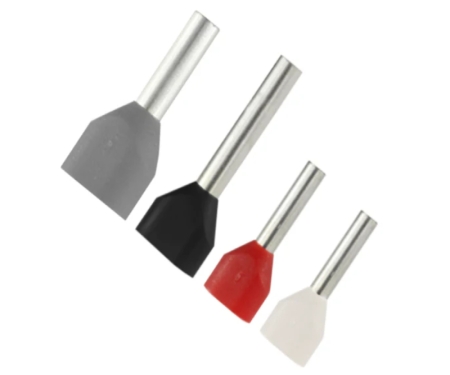

Twin nylon insulated wire ferrules provide a reliable and professional way to terminate two stranded wires together in a single, clean connection. Featuring a high-conductivity copper tube and a durable nylon insulation sleeve, these ferrules ensure strong, secure electrical connections while preventing wire strand fraying. UL listed for safety and performance, they are rated for up to 105°C and 600 volts, making them ideal for control panels, power distribution systems, and compact multi-wire terminations. The nylon insulation improves dielectric strength, guides wires easily into terminals, and reduces installation time. Conveniently sold in packs of 500 pieces, these ferrules help keep projects efficient and organized.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

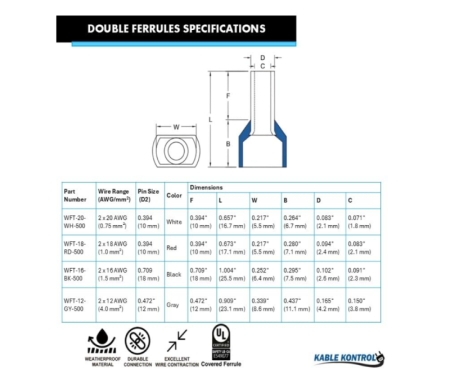

| Part Number | Wire Range (AWG/mm2) | Pin Size | Color | Dimensions | |||||||||||||
| F | L | W | B | D | C | ||||||||||||

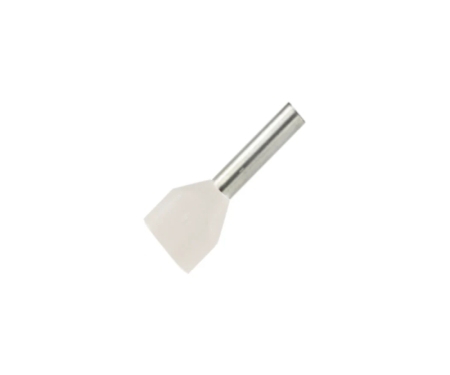

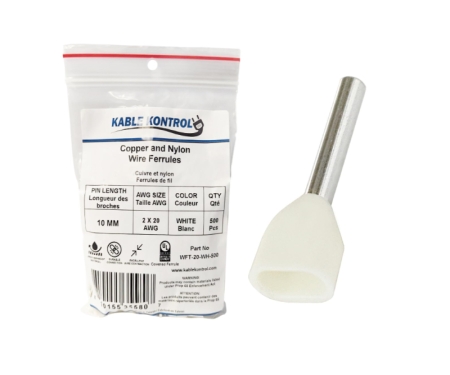

| WFT-20-WH-500 | 2 x 20 AWG (0.75 mm²) | 0.394 (10 mm) | White | 0.394" (10 mm) | 0.657" (16.7 mm) | 0.217" (5.5 mm) | 0.264" (6.7 mm) | 0.083" (2.1 mm) | 0.071" (1.8 mm) | ||||||||

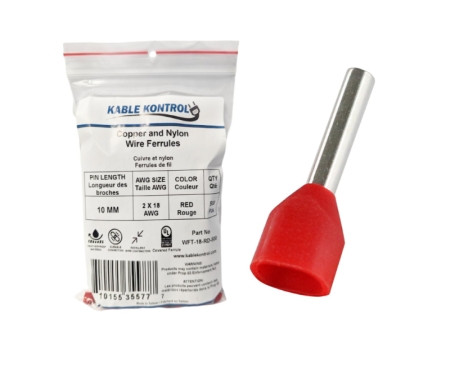

| WFT-18-RD-500 | 2 x 18 AWG (1.0 mm²) | 0.394 (10 mm) | Red | 0.394" (10 mm) | 0.673" (17.1 mm) | 0.217" (5.5 mm) | 0.280" (7.1 mm) | 0.094" (2.4 mm) | 0.083" (2.1 mm) | ||||||||

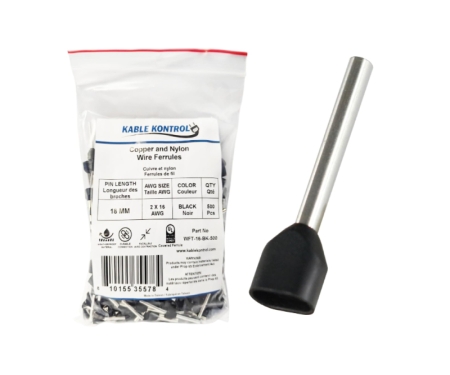

| WFT-16-BK-500 | 2 x 16 AWG (1.5 mm²) | 0.709 (18 mm) | Black | 0.709" (18 mm) | 1.004" (25.5 mm) | 0.252" (6.4 mm) | 0.295" (7.5 mm) | 0.102" (2.6 mm) | 0.091" (2.3 mm) | ||||||||

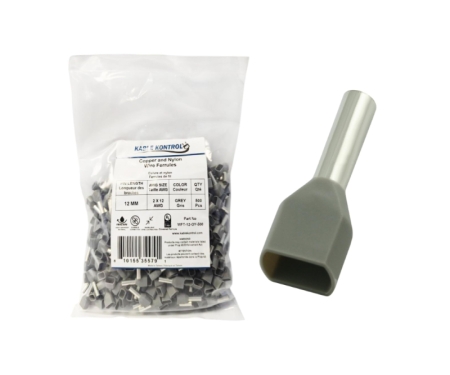

| WFT-12-GY-500 | 2 x 12 AWG | 0.472" | Gray | 0.472" (12 mm) | 0.909" (23.1 mm) | 0.339" (8.6 mm) | 0.437" (11.1 mm) | 0.165" (4.2 mm) | 0.150" (3.8 mm) | ||||||||
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Twin nylon insulated wire ferrules provide a reliable and professional way to terminate two stranded wires together in a single, clean connection. Featuring a high-conductivity copper tube and a durable nylon insulation sleeve, these ferrules ensure strong, secure electrical connections while preventing wire strand fraying. UL listed for safety and performance, they are rated for up to 105°C and 600 volts, making them ideal for control panels, power distribution systems, and compact multi-wire terminations. The nylon insulation improves dielectric strength, guides wires easily into terminals, and reduces installation time. Conveniently sold in packs of 500 pieces, these ferrules help keep projects efficient and organized.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Part Number | Wire Range (AWG/mm2) | Pin Size | Color | Dimensions | |||||||||||||
| F | L | W | B | D | C | ||||||||||||
| WFT-20-WH-500 | 2 x 20 AWG (0.75 mm²) | 0.394 (10 mm) | White | 0.394" (10 mm) | 0.657" (16.7 mm) | 0.217" (5.5 mm) | 0.264" (6.7 mm) | 0.083" (2.1 mm) | 0.071" (1.8 mm) | ||||||||
| WFT-18-RD-500 | 2 x 18 AWG (1.0 mm²) | 0.394 (10 mm) | Red | 0.394" (10 mm) | 0.673" (17.1 mm) | 0.217" (5.5 mm) | 0.280" (7.1 mm) | 0.094" (2.4 mm) | 0.083" (2.1 mm) | ||||||||
| WFT-16-BK-500 | 2 x 16 AWG (1.5 mm²) | 0.709 (18 mm) | Black | 0.709" (18 mm) | 1.004" (25.5 mm) | 0.252" (6.4 mm) | 0.295" (7.5 mm) | 0.102" (2.6 mm) | 0.091" (2.3 mm) | ||||||||
| WFT-12-GY-500 | 2 x 12 AWG | 0.472" | Gray | 0.472" (12 mm) | 0.909" (23.1 mm) | 0.339" (8.6 mm) | 0.437" (11.1 mm) | 0.165" (4.2 mm) | 0.150" (3.8 mm) | ||||||||
