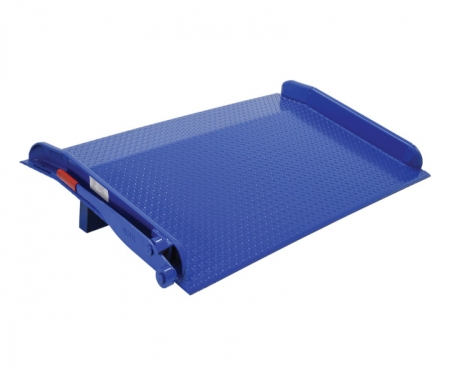

Vestil® Steel Truck Dockboards

High strength steel with diamond plated deck for safe & efficient use

0.0 / 5

(0)

Vestil® Steel Truck Dockboards Features

  • Manufactured from high-strength steel treadplate for maximum durability
  • Heavy-duty steel curbs are welded in place for maximum strength
  • Includes patented lever lift for easy fork truck positioning
  • Smooth transition provided by beveled entrance and exit
  • Steel Strength (psi): 55000
  • Bend Degree: 11
  • Bend Distance from Beveled Edge (in.): 9
  • Leg Distance from Edge (in.): 12

See More Technical Specifications

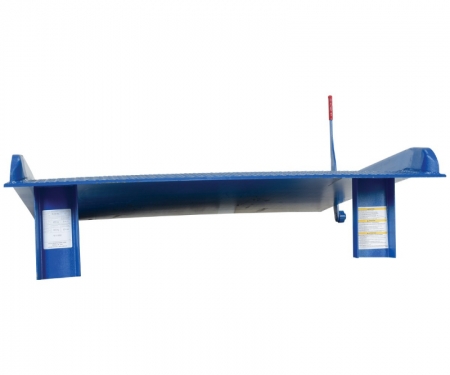

Steel Truck Dockboards are constructed of high strength (55,000 psi) steel for long life. Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by fork trucks when not in use. Legs are located 12" from the edge of the dockboard. The bend is 11 degrees and 9" from beveled edge. Standard with Lever Lift for quick portability with fork truck. Manufactured in compliance with OSHA. Optional accessories: lifting chains, span locks, span pins/holes, and removable pickup loops.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.


Request a Quote

Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.

Quote Items
Search
Item Description
Quantity
SKU:

Contact Information











Product Details

Steel Truck Dockboards are constructed of high strength (55,000 psi) steel for long life. Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by fork trucks when not in use. Legs are located 12" from the edge of the dockboard. The bend is 11 degrees and 9" from beveled edge. Standard with Lever Lift for quick portability with fork truck. Manufactured in compliance with OSHA. Optional accessories: lifting chains, span locks, span pins/holes, and removable pickup loops.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

TECHNICAL DATA – APPROVAL DRAWINGS

Click on the Part Number in the following table to see the details of some of the dockboards

TS-10-6036 TS-15-6048 TS-15-8436 TS-25-7260
TS-10-6048 TS-15-6060 TS-15-8460 TS-25-7272
TS-10-6060 TS-15-6072 TS-20-6036 TS-20-8448
TS-10-6072 TS-15-7230 TS-20-6048 TS-20-8460
TS-10-6648 TS-15-7236 TS-20-7236 TS-30-7242
TS-10-7236 TS-15-7248 TS-20-7248 TS-30-7248
TS-10-7248 TS-15-7254 TS-20-7254 TS-30-7260
TS-10-8460 TS-15-7260 TS-20-7260 TS-30-7272
TS-15-6036 TS-15-7272 TS-20-7272 TS-30-8460
