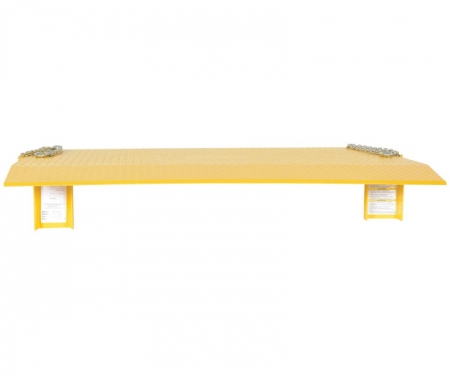

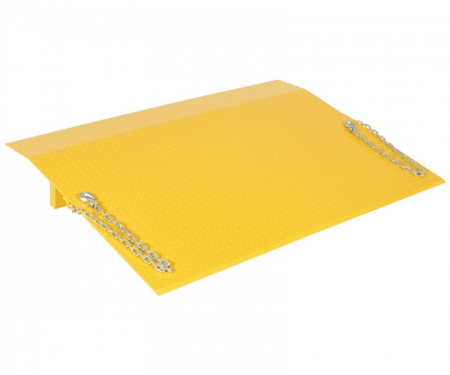

Vestil® Steel Truck Dock plates - Yellow

Constructed of high strength 55,000 psi steel with safety locking legs

0.0 / 5

(0)

Vestil® Steel Truck Dock plates Features

  • Manufactured from high-strength steel treadplate for maximum durability
  • Raised pattern safety tread plate helps provide positive traction
  • OSHA compliant locking legs secure dockplate when in use
  • Beveled entry and exit edges provide a smooth transition
  • Style: Chain Pickup
  • Steel Strength (psi): 55000
  • Bend Degree: 11
  • Bend Distance from Beveled Edge (in.): 9
  • Leg Distance from Beveled Edge (in.): 10
  • OSHA: 1910.30(a)
  • ANSI: MH 30.2
See More Technical Specifications


Steel Truck Dock plates are constructed of high strength (55,000 psi) steel. Safety locking legs prevent slippage between truck and dock. Safety tread plate helps provide positive traction. Beveled edges for smooth entry and exit. Chain pickup comes standard. Designed with an 11 degree bend located 9" from the beveled edge. The legs are 10" from the beveled edge. Manufactured in compliance with OSHA. When using three-wheeled pallet trucks, select capacity +20% due to concentrated load center of board.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.


Request a Quote

Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.

Quote Items
Search
Item Description
Quantity
SKU:

Contact Information



Product Details

Steel Truck Dock plates are constructed of high strength (55,000 psi) steel. Safety locking legs prevent slippage between truck and dock. Safety tread plate helps provide positive traction. Beveled edges for smooth entry and exit. Chain pickup comes standard. Designed with an 11 degree bend located 9" from the beveled edge. The legs are 10" from the beveled edge. Manufactured in compliance with OSHA. When using three-wheeled pallet trucks, select capacity +20% due to concentrated load center of board.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

TECHNICAL DATA – APPROVAL DRAWINGS

Click on the Part Number in the following table to see details

SE-4830 SEH-4830
SE-4836 SEH-4836
SE-4848 SEH-4848
SE-4860 SEH-4860
SE-5430 SEH-5430
SE-5436 SEH-5436
SE-5448 SEH-5448
SE-5460 SEH-5460
SE-6036 SEH-6036
SE-6048 SEH-6048
SE-6060 SEH-6060
SE-7230 SEH-7230
SE-7236 SEH-7236
SE-7248 SEH-7248
SE-7260 SEH-7260
