Vestil® Steel Fork Extensions - Loop Style

Extra support needed to lift long or large objects in a loop style.

0.0 / 5

(0)

Vestil® Steel Fork Extensions - Loop Style Features

  • Uniform Capacity Per Pair: 4,000 lbs.
  • Provides the needed extra length when standard forks can't reach product
  • All steel construction provides long lasting reliable use
  • Each extension includes warning and operating stickers for worker safety
  • Powder coat safety yellow finish offers lasting durability



See More Technical Specifications

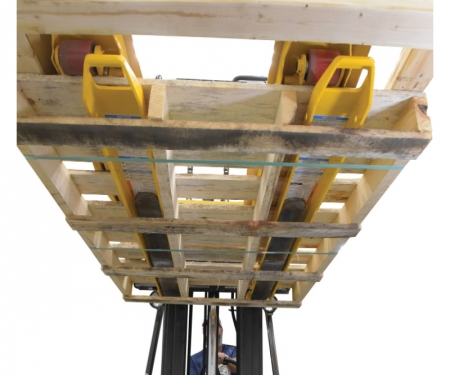

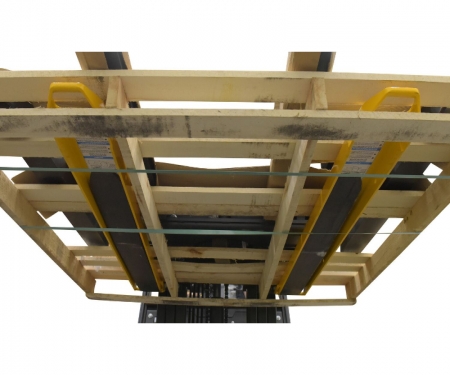

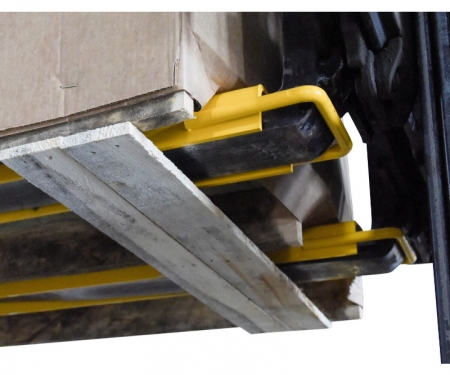

Provide the extra support needed to lift long or large objects with a fork truck. All model are designed of a welded steel construction. Models with prefix FE-4, FE-5 and FE-6 have cast steel tips, while models with prefix FE-7 and FE-8 have a tapered cut front end. Steel retaining strap (loop style*) prevents fork extensions from sliding off forks during use. Baked-in powder coat finish for added toughness. OSHA regulations require that extensions are no more than 150% of the existing fork length. (e.g. 48" existing forks, the fork extension should not exceed 72"). Maximum uniform capacity is 4,000 pounds evenly distributed per pair.

INSTALLATIONInsert loop at the tip of the fork and slide it up at a 45 degree angle then lay it down over the existing fork.

To be used with class 2 and class 3 forks only.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

TECHNICAL DATA – APPROVAL DRAWINGS

Click on the Part Number in the following table to see the details of  the respective Fork Extensions.

FE-4-42 FE-4-84 FE-5-66 FE-6-60
FE-4-48 FE-4-90 FE-5-72 FE-6-63
FE-4-54 FE-4-96 FE-5-84 FE-6-66
FE-4-60 FE-5-48 FE-5-90 FE-6-72
FE-4-63 FE-5-54 FE-5-96 FE-6-84
FE-4-66 FE-5-60 FE-6-48 FE-6-90
FE-4-72 FE-5-63 FE-6-54 FE-6-96
