Gutter Guards Plus - Ultratech®

Guard high flow curb inlets from silt, sediment, & other contaminants

Ultratech® Gutter Guards Plus Features

  • Modular, 3-foot, inner frames allow for compact transport and storage.
  • Counterweight inserts into the inlet to keep unit upright and secure.  An optional 7 lb. weight available is available - rebar, gravel or other material can also be used.
  • Tie-back straps on either end of the unit can be used with sod pin or stake for additional anchoring.
  • Can be easily cleaned and reused.
  • Sizing note:  When ordering allow 12" overlap on each side of curb inlet.
  • Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.
Click for More Details or Description

Product Details

Guard high - flow curb inlets from silt, sediment, and other contaminants

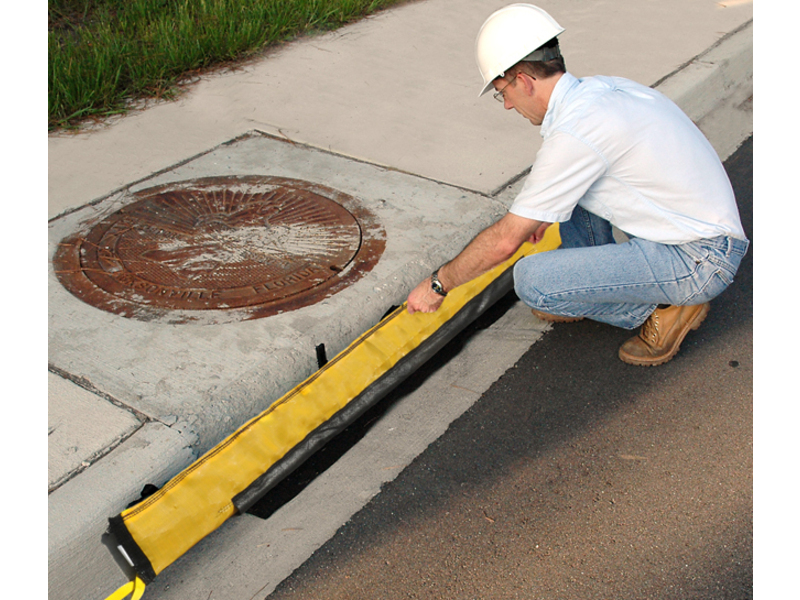

The Ultra-Gutter Guard Plus is designed for curb inlets with high-flow volumes. Its unique, multi-dimensional outer filter combined with a rigid inner frame and support counterweight prevents debris and silt from clogging inlets while keeping the unit upright and secure.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Product Manuals

Request a Quote

Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.

Quote Items
Item Description

Contact Information

Frequently Asked Questions

Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.

Why would I use the Ultra-Gutter Guard Plus instead of one of your other stormwater management products?

The Gutter Guard Plus has a low-profile so it can protect curb inlets without being too obtrusive. This is beneficial where pedestrian traffic is frequent to reduce tripping hazards. The lower profile is also less likely to be damaged by street sweepers or other machinery.

Why WOULDN'T I use the Ultra- Gutter Guard Plus instead of one of your other stormwater management products?

Compared to some of UltraTech's other curb inlet products, the Gutter Guard Plus will take more time and effort to install. If there are many inlets in your project, this additional time could become significant. Additionally, the Gutter Guard Plus is designed to remove only sediment, dirt, silt and debris. It is not designed to remove other pollutants like hydrocarbons or heavy metals.

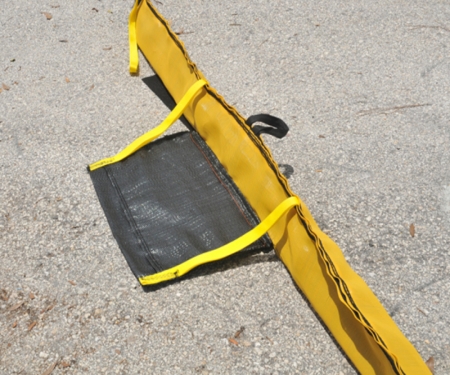

What's the deal with the pouch in the back of the Gutter Guard Plus?

That pouch is designed to provide a counterweight to the unit and will help to keep the Gutter Guard Plus upright/vertical. By using the optional seven pound counterweight (Part# 9148) or filling the pouch with rocks, gravel or other aggregate, the weight of the pouch will help pull the entire unit back toward the opening of the inlet.

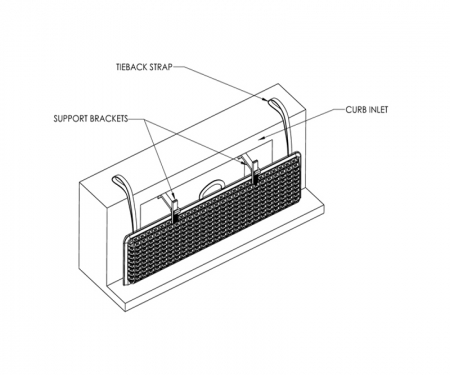

What are the straps on either side of the Gutter Guard Plus used for?

Those straps can be used to stake the unit down. Similar to the counterweight pouch (see above), the straps are used to help keep the unit upright/vertical.

How do I install and Ultra-Gutter Guard Plus?

The installation instructions will help explain the process. But basically, you assemble the frames that provide the internal support/structure and then place the frame inside of the polypropylene sleeve. Secure it using the counterweight pouch and/or the tie-down straps and you're good to go.
